EH 176 Series – CPVN Push-Pull Female Couplings For Agriculture, Panel Mounting (Steel)
This EH series is interchangeable with FASTER CPVN SERIES. Steel Product. Panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.
EH 176 Series – CPVN Push-Pull Female Couplings For Agriculture, Panel Mounting (Steel)
This EH series is interchangeable with FASTER CPVN SERIES. Steel Product. Panel-mount couplings designed for flexible hose connections. Features breakaway safety functionality to prevent hose damage during accidental disconnection. Comprehensive selection of threaded adapters available for versatile installation options.

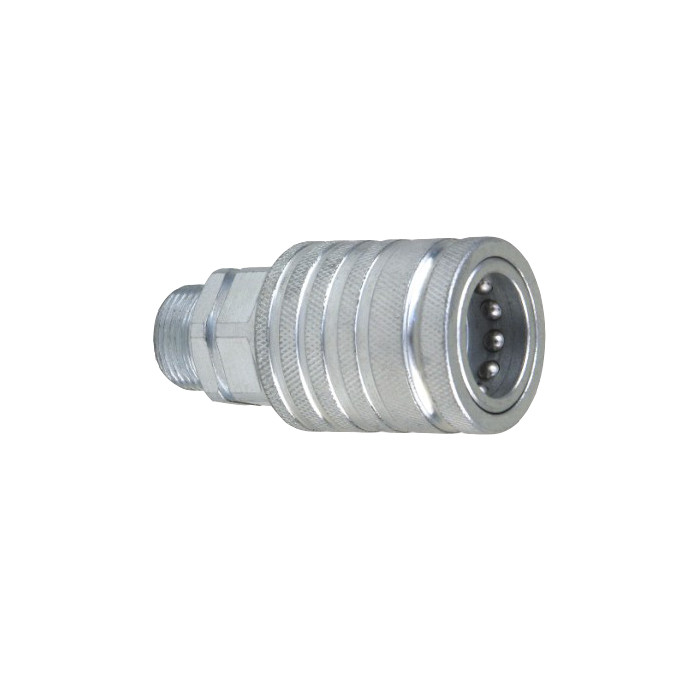

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | T |
| HFSFC17638-3/8NPTF | 3/8” | 70 | S24 | NPTF 3/8″ FEMALE |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 300 | 300 | 300 | 1200 | 1200 | 1500 | 1.3 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER CPVN SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Not Allowed | |

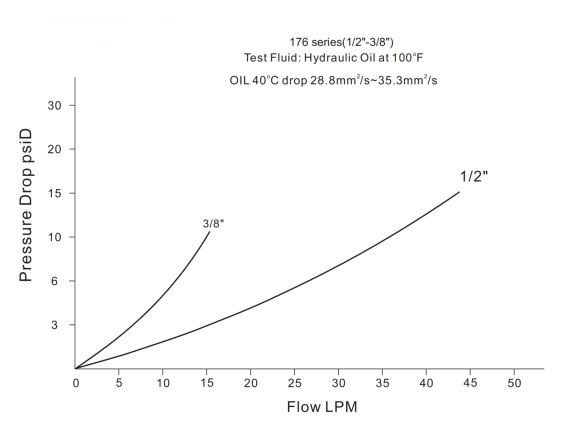

Pressure Drop
Pressure Drop
