EH 62 Series – SV Standard Female Coupling With Safety Sleeve (Steel)
This EH series is interchangeable with FASTER SV SERIES. Steel Product. Standard female couplings very similar to 66 series but equipped with an additional safety sleeve to prevent accidental disconnections. Poppet valve.
EH 62 Series – SV Standard Female Coupling With Safety Sleeve (Steel)
This EH series is interchangeable with FASTER SV SERIES. Steel Product. Standard female couplings very similar to 66 series but equipped with an additional safety sleeve to prevent accidental disconnections. Poppet valve.
Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6214-G1/4” | 1/4” | 50 | 27 | S24 | BSPP 1/4″ FEMALE |
| HFSFC6214-G1/2” | 1/2” | 66 | 38 | S27 | BSPP 1/2″FEMALE |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureFemale (bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 350 | 1400 | 1400 | 0.8 |
| 08 | 1/2” | 300 | 1200 | 1300 | 1.8 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CrIII) | |
| Specifications: | Market Interchange | FASTER SV SERIES |
| Valve Type: | Poppet | |
| Connection: | Push to Connect | |
| Disconnection: | Pull to Disconnect | |
| Connection Under Pressure: | Not Allowed | |

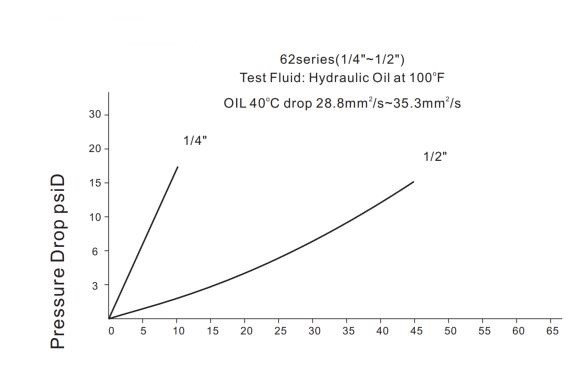

Pressure Drop
Pressure Drop
RELATED PRODUCTS

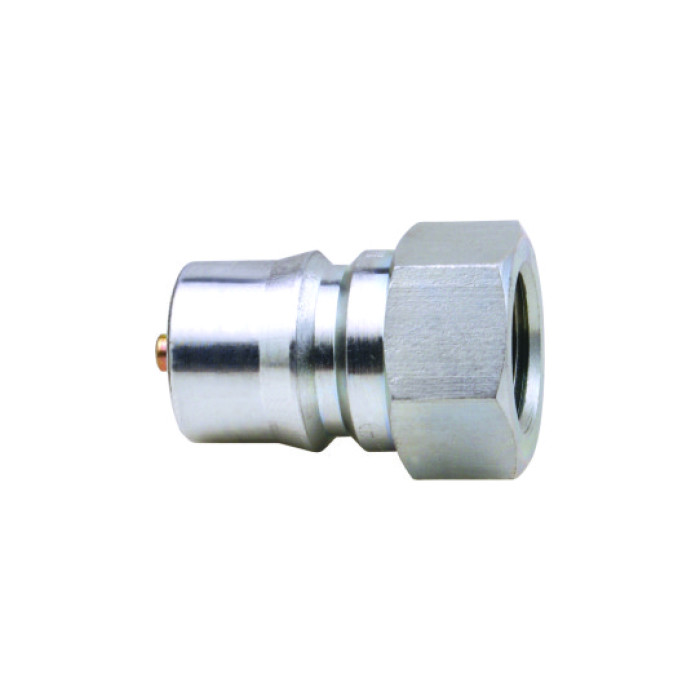

EH 63 Series – HNVN Standard Quick Couplings For Japanese Market (Steel)
