EH 102 Series – ARGENTINA COMEL Quick Coupler (Steel)
This EH series is interchangeable with the ARGENTINA COMEL E SERIES. Steel Product. The 102 series coupling is a family of quick couplings for hydraulic systems and for high-pressure water. A manually operated locking ring provides extra security against involuntary disconnection. Both steel and brass valves are available.
EH 102 Series – ARGENTINA COMEL Quick Coupler (Steel)
This EH series is interchangeable with the ARGENTINA COMEL E SERIES. Steel Product. The 102 series coupling is a family of quick couplings for hydraulic systems and for high-pressure water. A manually operated locking ring provides extra security against involuntary disconnection. Both steel and brass valves are available.

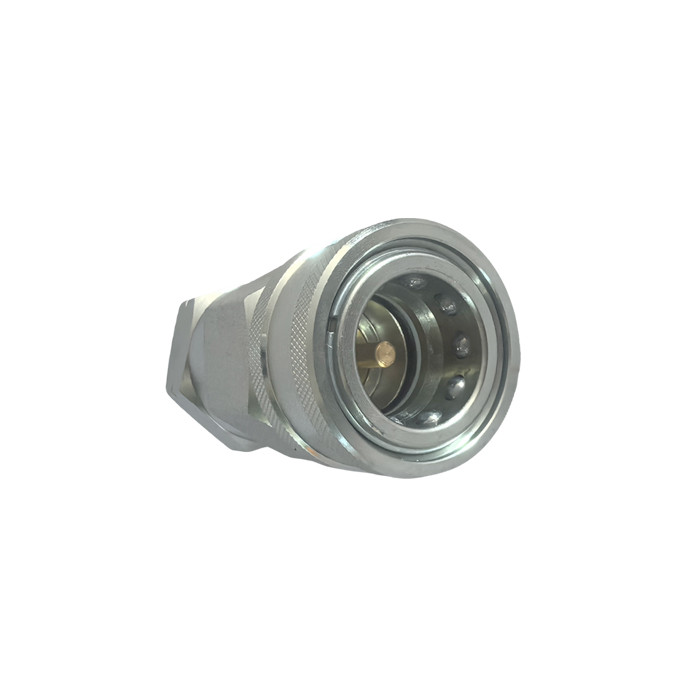

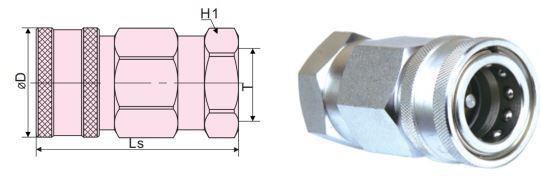

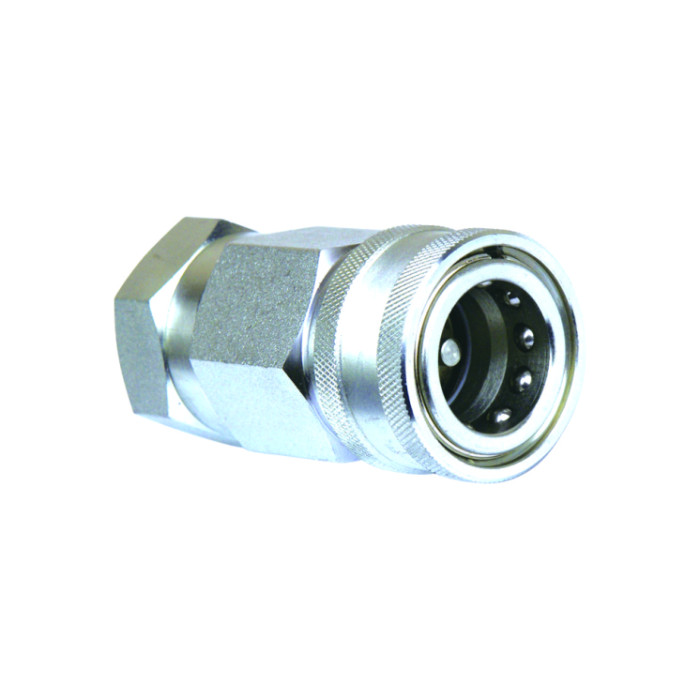

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | H1(mm) | T |
| HFSFC10234-3/4″ | 3/4” | 83 | 45 | S39 | 3/4″ BSPP(NPTF) |
| HFSFC10210-1″ | 1” | 93.5 | 54 | S46 | 1″ BSPP(NPTF) |

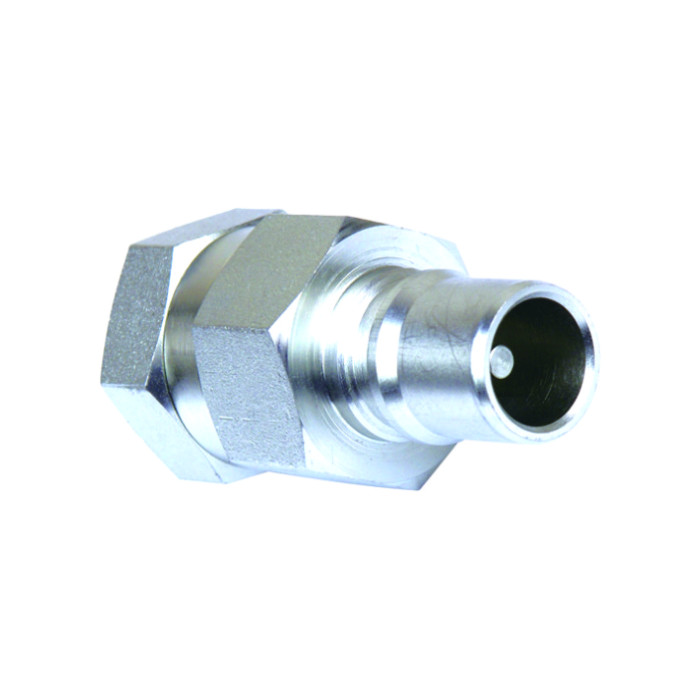

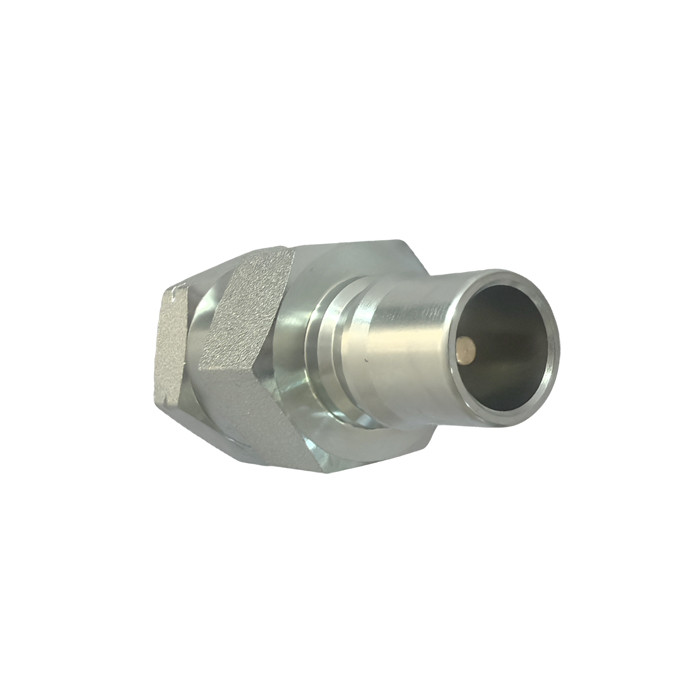

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | H1(mm) | T |
| HFSFP10034-3/4″ | 3/4” | 80 | S39 | 3/4″ BSPP(NPTF) |
| HFSFP10010-1″ | 1” | 93.5 | S46 | 1″ BSPP(NPTF) |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 12 | 3/4” | 200 | 200 | 200 | 800 | 800 | 800 | / |
| 16 | 1” | 150 | 150 | 150 | 600 | 600 | 600 | / |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Internal Valve: | Steel/Brass | |
| Specifications: | Market Interchange | ARGENTINA COMEL E SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop
Pressure Drop
