EH 55 Series – HOLMBURY PWS Quick Coupling (AISI 316 Stainless Steel, Brass)
This EH series is interchangeable with HOLMBURY PWS SERIES. This series is full flow without valve couplings for applications where maximum flow is required. Its smooth, open bore offers the lowest pressure drop of any quick coupling design. It is ideal for applications such as high-pressure water and steam washers, carpet cleaners, and mold coolant lines, and the transmission of non-hazardous fluids.
EH 55 Series – HOLMBURY PWS Quick Coupling (AISI 316 Stainless Steel, Brass)
This EH series is interchangeable with HOLMBURY PWS SERIES. This series is full flow without valve couplings for applications where maximum flow is required. Its smooth, open bore offers the lowest pressure drop of any quick coupling design. It is ideal for applications such as high-pressure water and steam washers, carpet cleaners, and mold coolant lines, and the transmission of non-hazardous fluids.

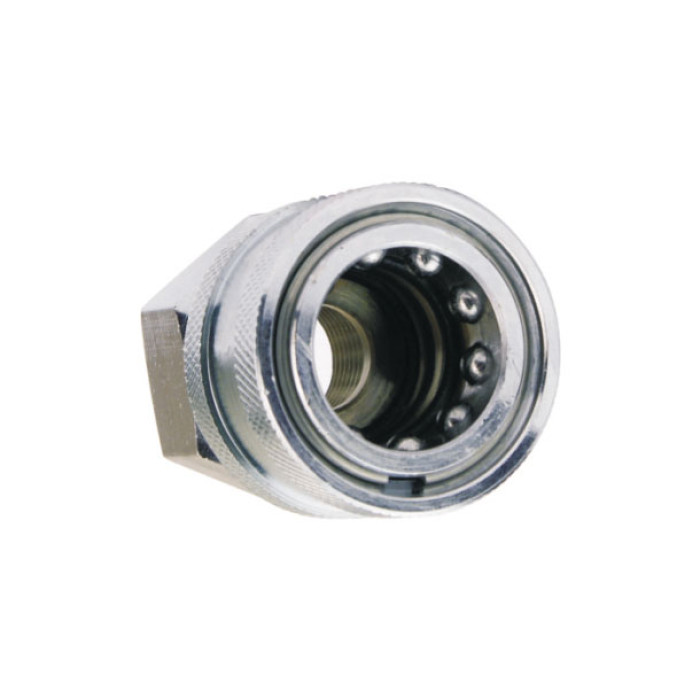

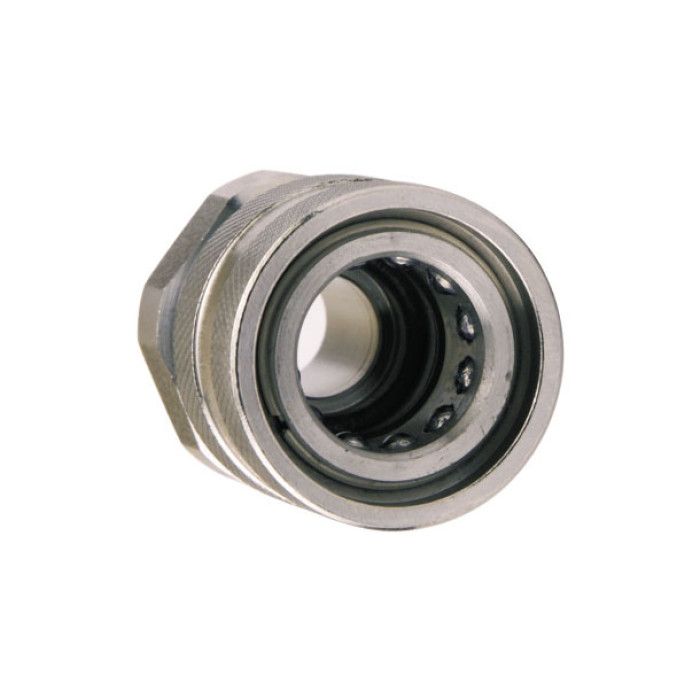

Female Coupler
Female Coupler
| Brass (Material), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | D(mm) | T |
| HFBFC5538-3/8” | 3/8” | 41 | S30 | 36 | 3/8″NPT(BSPP) |
| AISI 316 Stainless Steel (Material), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | Hs(mm) | D(mm) | T |
| HFSSFC5538-3/8” | 3/8” | 41 | S30 | 36 | 3/8″NPT(BSPP) |

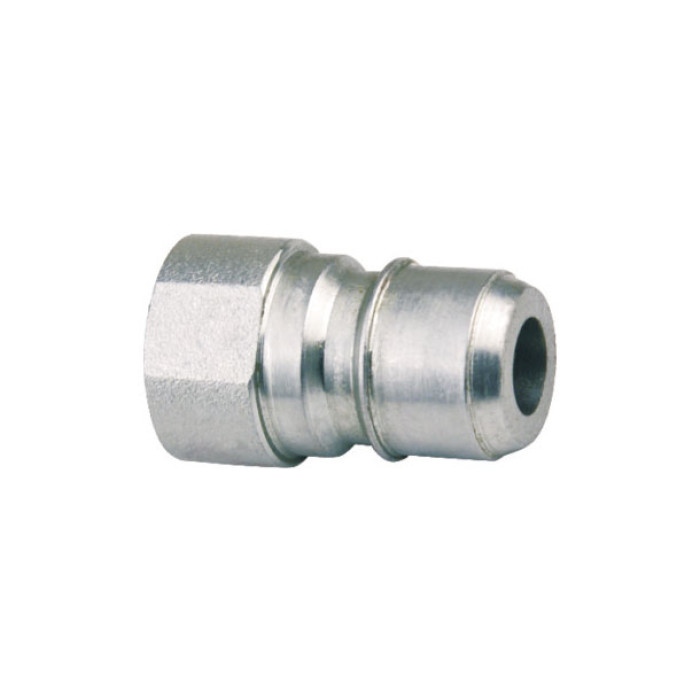

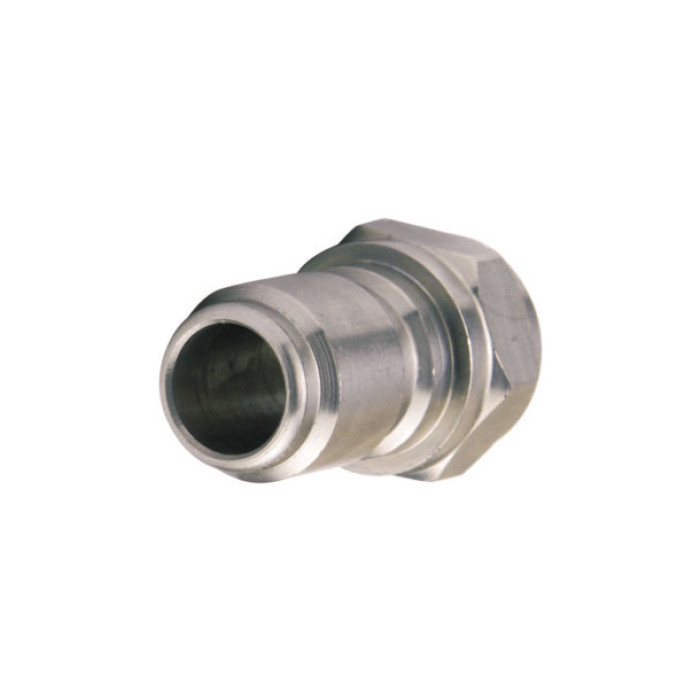

Male Plug
Male Plug
| Brass (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFBFP5538-3/8” | 3/8” | 38.5 | S22 | 3/8″NPT(BSPP) |
| AISI 316 Stainless Steel (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFP5538-3/8” | 3/8” | 38.5 | S22 | 3/8″NPT(BSPP) |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale-Brass(bar) | Max. Work PressureFemale-Brass (bar) | Max. Work PressureCoupled-Brass(bar) | Max. WorkPressureMale-Stainless 316(bar) | Max. WorkPressureFemale-Stainless 316(bar) | Max. WorkPressureCoupled-Stainless 316(bar) | Spillage(ml) |
| 06 | 3/8” | 250 | 250 | 250 | 350 | 350 | 350 | 0 |
| Material: | Brass, AISI 316 Stainless Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | HOLMBURY PWS SERIES |
| Valve Type: | None | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop
Pressure Drop
