EH 67 Series – DNP PNZ1 Quick Coupler (Steel)
This EH series is interchangeable with DNP PNZ1 SERIES. The 67 series features poppet valve quick couplings that are specialized for Australia and New Zealand.
EH 67 Series – DNP PNZ1 Quick Coupler (Steel)
This EH series is interchangeable with DNP PNZ1 SERIES. The 67 series features poppet valve quick couplings that are specialized for Australia and New Zealand.

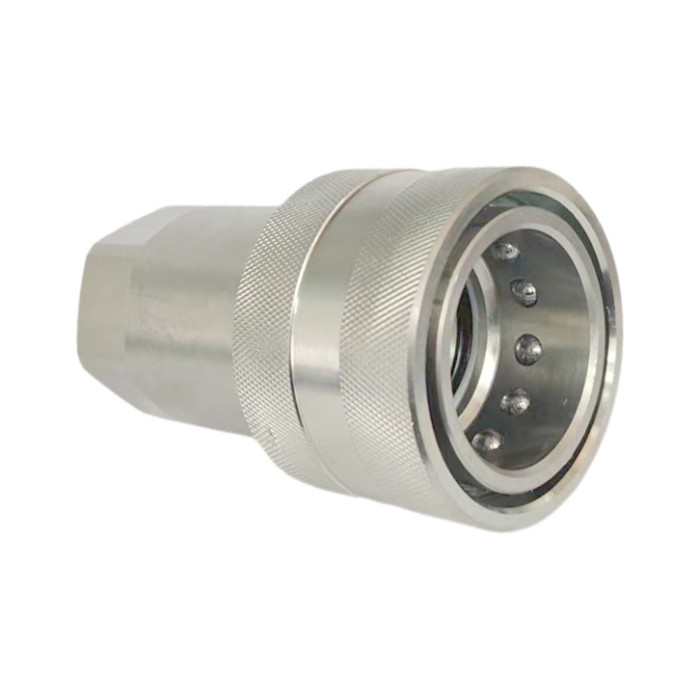

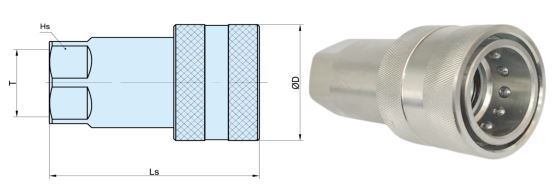

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC6710-1″ | 1” | 108 | 65 | S46 | 1″BSPP |

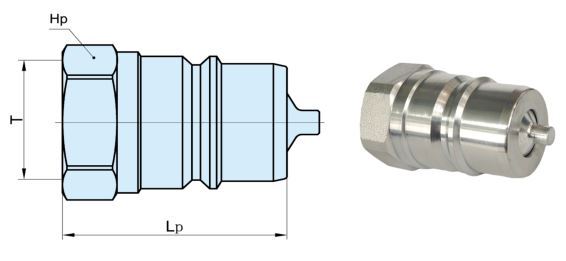

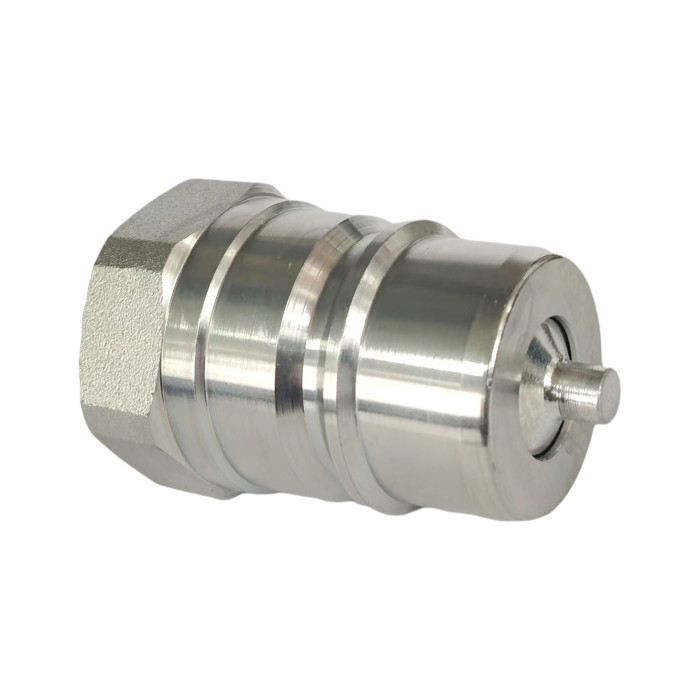

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP6710-1″ | 1” | 66 | S46 | 1″BSPP |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 16 | 1” | 230 | 230 | 230 | 920 | 920 | 920 | 13 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | DNP PNZ1 SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

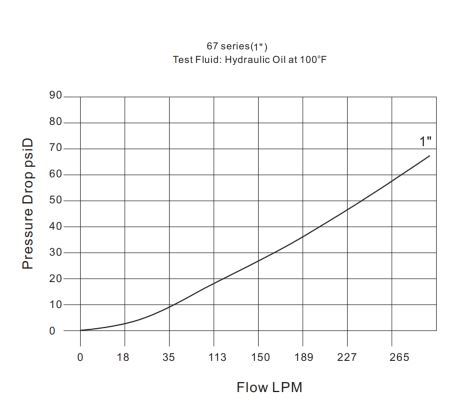

Pressure Drop
Pressure Drop
