EH 103/104 Series – SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (AISI 316 Stainless Steel)
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL SERIES, DNP PNVX SERIES, DNP PNOX SERIES and STUCCHI SH SERIES. Stainless Steel Product. 103 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 104 parts (free flow) same series. AISI SS316 Material.
Interchange
- PARKER H SERIES
- SNAP-TITE IH SERIES
- FASTER TNL SERIES
- STUCCHI SH SERIES
- PARKER IH SERIES
- DIXON V SERIES
- DNP PNVX SERIES
- SNAP-TITE H SERIES
- FASTER TNV SERIES
- DNP PNOX SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 103/104 Series – SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (AISI 316 Stainless Steel)
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL SERIES, DNP PNVX SERIES, DNP PNOX SERIES and STUCCHI SH SERIES. Stainless Steel Product. 103 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 104 parts (free flow) same series. AISI SS316 Material.
Interchange
- PARKER H SERIES
- SNAP-TITE IH SERIES
- FASTER TNL SERIES
- STUCCHI SH SERIES
- PARKER IH SERIES
- DIXON V SERIES
- DNP PNVX SERIES
- SNAP-TITE H SERIES
- FASTER TNV SERIES
- DNP PNOX SERIES
Call Tawk.to
contact@ehhydraulics.com

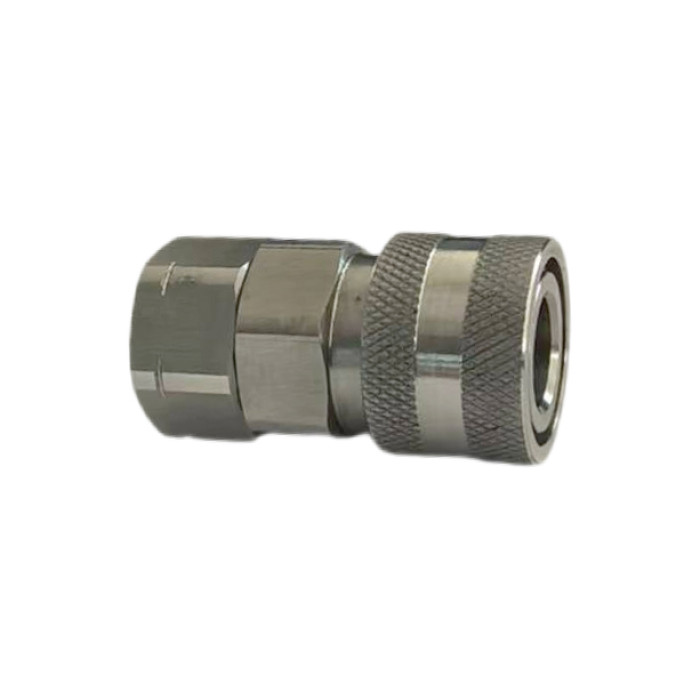

Female Coupler
Female Coupler

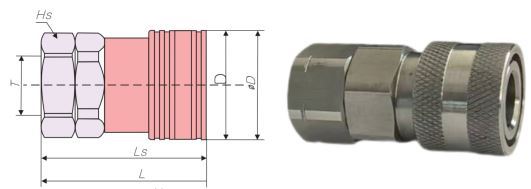

| 103 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSSFC10314-1/4″ | 1/4” | 50 | 24 | S22 | 84 | 1/4″ NPT |
| HFSSFC10338-3/8″ | 3/8” | 57 | 27 | S24 | 95 | 3/8 “NPT |
| HFSSFC10312-1/2″ | 1/2” | 65 | 34 | S30 | 110 | 1/2″ NPT |
| HFSSFC10334-3/4″ | 3/4” | 64 | 42 | S36 | 106 | 3/4″ NPT |
| HFSSFC10310-1″ | 1” | 71 | 51 | S46 | 116 | 1″ NPT |
| 104 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSSFC10414-1/4″ | 1/4” | 50 | 24 | S22 | 84 | 1/4″ NPT |
| HFSSFC10438-3/8″ | 3/8” | 57 | 27 | S24 | 95 | 3/8 “NPT |
| HFSSFC10412-1/2″ | 1/2” | 65 | 34 | S30 | 110 | 1/2″ NPT |
| HFSSFC10434-3/4″ | 3/4” | 64 | 42 | S36 | 106 | 3/4″ NPT |
| HFSSFC10410-1″ | 1” | 71 | 51 | S46 | 116 | 1″ NPT |

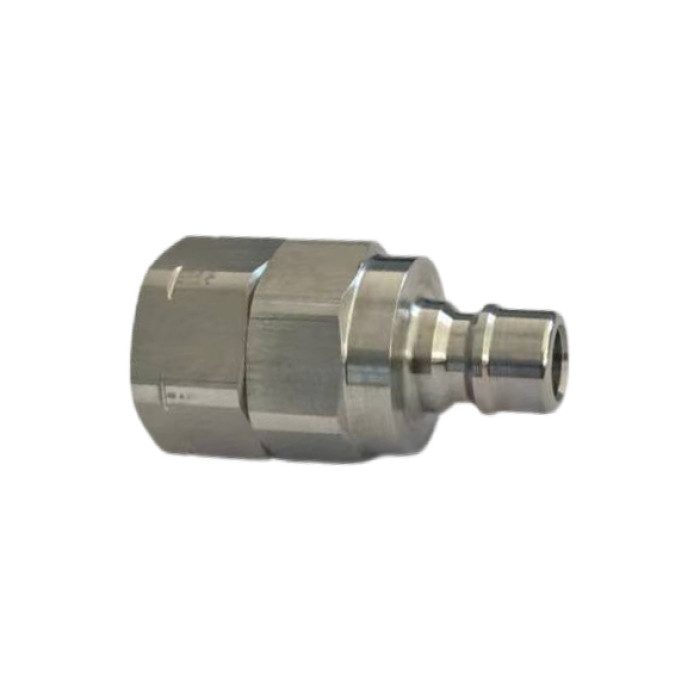

Male Plug
Male Plug
| 103 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSSFC10314-1/4″ | 1/4” | 50 | 24 | S22 | 84 | 1/4″ NPT |
| HFSSFC10338-3/8″ | 3/8” | 57 | 27 | S24 | 95 | 3/8 “NPT |
| HFSSFC10312-1/2″ | 1/2” | 65 | 34 | S30 | 110 | 1/2″ NPT |
| HFSSFC10334-3/4″ | 3/4” | 64 | 42 | S36 | 106 | 3/4″ NPT |
| HFSSFC10310-1″ | 1” | 71 | 51 | S46 | 116 | 1″ NPT |
| 104 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSSFC10414-1/4″ | 1/4” | 50 | 24 | S22 | 84 | 1/4″ NPT |
| HFSSFC10438-3/8″ | 3/8” | 57 | 27 | S24 | 95 | 3/8 “NPT |
| HFSSFC10412-1/2″ | 1/2” | 65 | 34 | S30 | 110 | 1/2″ NPT |
| HFSSFC10434-3/4″ | 3/4” | 64 | 42 | S36 | 106 | 3/4″ NPT |
| HFSSFC10410-1″ | 1” | 71 | 51 | S46 | 116 | 1″ NPT |
Technical Specifications
Technical Specifications
| 103 Series |
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 345 | 345 | 345 | 700 | 700 | 700 | 2 |
| 06 | 3/8” | 275 | 275 | 275 | 550 | 550 | 550 | 3 |
| 08 | 1/2” | 260 | 260 | 260 | 500 | 500 | 500 | 4 |
| 12 | 3/4” | 130 | 130 | 130 | 500 | 500 | 500 | 14 |
| 16 | 1” | 130 | 130 | 130 | 345 | 345 | 345 | 20 |
| 104 Series (Unvalved) |
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 670 | 670 | 670 | 2000 | 2000 | 2000 | 0 |
| 06 | 3/8” | 550 | 550 | 550 | 1900 | 1900 | 1900 | 0 |
| 08 | 1/2” | 550 | 550 | 550 | 1700 | 1700 | 1700 | 0 |
| 12 | 3/4” | 480 | 480 | 480 | 1500 | 1500 | 1500 | 0 |
| 16 | 1” | 275 | 275 | 275 | 1500 | 1500 | 1500 | 0 |
| Material: | AISI 316 Stainless Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | PARKER H SERIESPARKER IH SERIESSNAP-TITE H SERIESSNAP-TITE IH SERIESDIXON V SERIESFASTER TNV SERIESFASTER TNL SERIESDNP PNVX SERIESDNP PNOX SERIESSTUCCHI SH SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

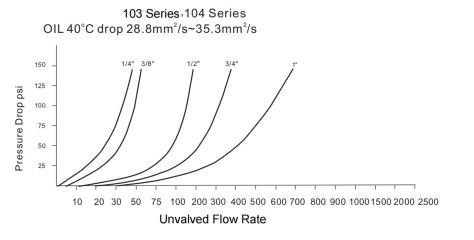

Pressure Drop
Pressure Drop
