EH 105/106 Series – SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (Steel)
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL SERIES, DNP PNV1 SERIES, DNP PNO1 SERIES and STUCCHI SH SERIES. 105 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 106 parts (free flow) same series. Carbon Steel.
Interchange
- PARKER H SERIES
- SNAP-TITE IH SERIES
- FASTER TNL SERIES
- STUCCHI SH SERIES
- PARKER IH SERIES
- DIXON V SERIES
- DNP PNV1 SERIES
- SNAP-TITE H SERIES
- FASTER TNV SERIES
- DNP PNO1 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 105/106 Series – SNAP-TITE H, IH Interchange Quick Coupling Free Flow Available (Steel)
This EH series is interchangeable with PARKER H SERIES, PARKER IH SERIES, SNAP-TITE H SERIES, SNAP-TITE IH SERIES, DIXON V SERIES, FASTER TNV SERIES, FASTER TNL SERIES, DNP PNV1 SERIES, DNP PNO1 SERIES and STUCCHI SH SERIES. 105 series couplings are commonly used in US market as an alternative to standard series. Their valves have been designed to help flow and to allow connection with 106 parts (free flow) same series. Carbon Steel.
Interchange
- PARKER H SERIES
- SNAP-TITE IH SERIES
- FASTER TNL SERIES
- STUCCHI SH SERIES
- PARKER IH SERIES
- DIXON V SERIES
- DNP PNV1 SERIES
- SNAP-TITE H SERIES
- FASTER TNV SERIES
- DNP PNO1 SERIES
Call Tawk.to
contact@ehhydraulics.com
Female Coupler
Female Coupler
| 105 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSFC10514-1/4″ | 1/4” | 50 | 24 | S22 | 84 | 1/4″ NPT |
| HFSFC10538-3/8″ | 3/8” | 57 | 27 | S24 | 95 | 3/8 “NPT |
| HFSFC10512-1/2″ | 1/2” | 65 | 34 | S30 | 110 | 1/2″ NPT |
| HFSFC10534-3/4″ | 3/4” | 64 | 42 | S36 | 106 | 3/4″ NPT |
| HFSFC10510-1″ | 1” | 71 | 51 | S46 | 116 | 1″ NPT |
| HFSFC105114-1-1/4″ | 1-1/4” | 97 | 56 | S50 | 164 | 1-1/4″ NPT |
| HFSFC105112-1-1/2″ | 1-1/2” | 91 | 70 | S65 | 148 | 1-1/2 ” NPT |
| HFSFC10520-2″ | 2” | 102 | 90 | S89 | 166 | 2″ NPT |
| 106 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | L(mm) | T |
| HFSFC10614-1/4″ | 1/4” | 50 | 24 | S22 | 84 | 1/4″ NPT |
| HFSFC10638-3/8″ | 3/8” | 57 | 27 | S24 | 95 | 3/8 “NPT |
| HFSFC10612-1/2″ | 1/2” | 65 | 34 | S30 | 110 | 1/2″ NPT |
| HFSFC10634-3/4″ | 3/4” | 64 | 42 | S36 | 106 | 3/4″ NPT |
| HFSFC10610-1″ | 1” | 71 | 51 | S46 | 116 | 1″ NPT |
Male Plug
Male Plug
| 105 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFSFP10514-1/4″ | 1/4” | 49 | 10.8 | S22 | 84 | 1/4″ NPT |
| HFSFP10538-3/8″ | 3/8” | 57 | 12.9 | S24 | 95 | 3/8 “NPT |
| HFSFP10512-1/2″ | 1/2” | 63 | 16 | S30 | 110 | 1/2″ NPT |
| HFSFP10534-3/4″ | 3/4” | 64 | 23.3 | S36 | 106 | 3/4″ NPT |
| HFSFP10510-1″ | 1” | 68 | 29.7 | S46 | 116 | 1″ NPT |
| HFSFP105114-1-1/4″ | 1-1/4” | 91 | 36.1 | S50 | 164 | 1-1/4″ NPT |
| HFSFP105112-1-1/2″ | 1-1/2” | 85 | 43.5 | S65 | 148 | 1-1/2 ” NPT |
| HFSFP10520-2″ | 2” | 98 | 56.8 | S89 | 166 | 2″ NPT |
| 106 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | A(mm) | Hp(mm) | L(mm) | T |
| HFSFP10614-1/4″ | 1/4” | 49 | 10.8 | S22 | 84 | 1/4″ NPT |
| HFSFP10638-3/8″ | 3/8” | 57 | 12.9 | S24 | 95 | 3/8 “NPT |
| HFSFP10612-1/2″ | 1/2” | 63 | 16 | S30 | 110 | 1/2″ NPT |
| HFSFP10634-3/4″ | 3/4” | 64 | 23.3 | S36 | 106 | 3/4″ NPT |
| HFSFP10610-1″ | 1” | 68 | 29.7 | S46 | 116 | 1″ NPT |
Technical Specifications
Technical Specifications
| 105 Series |
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 550 | 330 | 550 | 1400 | 1000 | 1400 | 0.01 |
| 08 | 1/2” | 550 | 330 | 550 | 1400 | 1000 | 1400 | 0.01 |
| 10 | 5/8” | 550 | 330 | 550 | 1400 | 1000 | 1400 | 0.02 |
| 12 | 3/4” | 500 | 330 | 500 | 1250 | 1000 | 1250 | 0.03 |
| 16 | 1” | 470 | 300 | 470 | 1200 | 800 | 1200 | 0.03 |
| 24 | 1-1/2” | 400 | 300 | 400 | 1100 | 800 | 1100 | 0.03 |
| 106 Series (Unvalved) |
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 760 | 760 | 760 | 2000 | 2000 | 2000 | 0 |
| 06 | 3/8” | 760 | 760 | 760 | 2000 | 2000 | 2000 | 0 |
| 08 | 1/2” | 760 | 760 | 760 | 2000 | 2000 | 2000 | 0 |
| 12 | 3/4” | 620 | 620 | 620 | 1300 | 1300 | 1300 | 0 |
| 16 | 1” | 400 | 400 | 400 | 1100 | 1100 | 1100 | 0 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | STUCCHI VEP-P SERIES PARKER FET SERIESFASTER FHV SERIESDNP PST4 SERIESVOSWINKEL FT SERIESDIXON VEP SERIESHOLMBURY HFT SERIES |
| Valve Type: | Flat | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Allowed Up To 25MPa | |

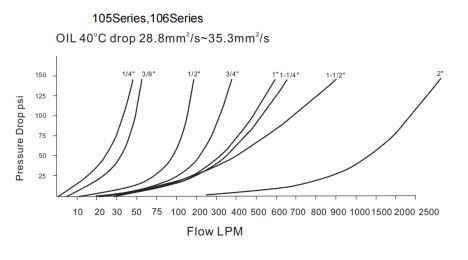

Pressure Drop
Pressure Drop
