EH 108 Series – SNAP-TITE 75 Screw To Connect Quick Couplings For Oil & Gas Application (Steel)
This EH series is interchangeable with EATON AEROQUIP FD86 SERIES, SNAP-TITE 75 SERIES, FASTER OGV SERIES, STUCCHI VOF SERIES, DIXON WS SERIES, and VOSWINKEL HV SERIES. Engineered for demanding Oil & Gas operations, these robust screw-to-connect couplings feature a durable sleeve design and reliable poppet valve system. The ACME threaded connection ensures secure, leak-proof performance in critical hydrocarbon service applications. Specifically designed to withstand harsh operating conditions, these couplings deliver dependable service through their rugged construction and precision-engineered components.
Interchange
- EATON AEROQUIP FD86 SERIES
- SNAP-TITE 75 SERIES
- FASTER OGV SERIES
- STUCCHI VOF SERIES
- DIXON WS SERIES
- VOSWINKEL HV SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 108 Series – SNAP-TITE 75 Screw To Connect Quick Couplings For Oil & Gas Application (Steel)
This EH series is interchangeable with EATON AEROQUIP FD86 SERIES, SNAP-TITE 75 SERIES, FASTER OGV SERIES, STUCCHI VOF SERIES, DIXON WS SERIES, and VOSWINKEL HV SERIES. Engineered for demanding Oil & Gas operations, these robust screw-to-connect couplings feature a durable sleeve design and reliable poppet valve system. The ACME threaded connection ensures secure, leak-proof performance in critical hydrocarbon service applications. Specifically designed to withstand harsh operating conditions, these couplings deliver dependable service through their rugged construction and precision-engineered components.
Interchange
- STUCCHI VR SERIES
- FASTER FLV SERIES
- VOSWINKEL RH SERIES
- VOSWINKEL RK SERIES
- DNP PRH3 SERIES

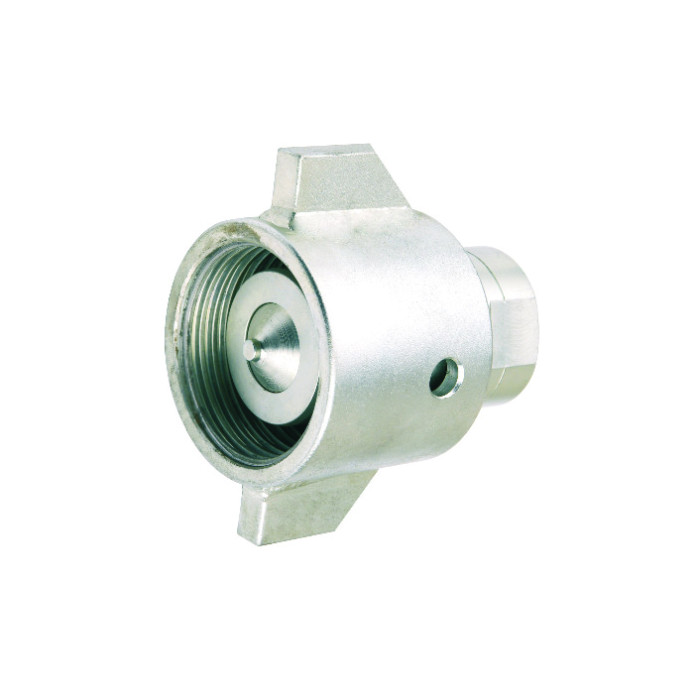

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | B(mm) | D(mm) | T |
| HFSFC10834-3/4″ | 3/4” | 70 | 82.5 | 32 | 3/4”NPT |
| HFSFC10810-1″ | 1” | 80.7 | 102 | 41 | 1”NPT |
| HFSFC108114-1-1/4″ | 1-1/4” | 109 | 119 | 50 | 1-1/4”NPT |
| HFSFC108112-1-1/2″ | 1-1/2” | 128.5 | 138 | 58 | 1-1/2”NPT |
| HFSFC10820-2″ | 2” | 152 | 170 | 75 | 2”NPT |

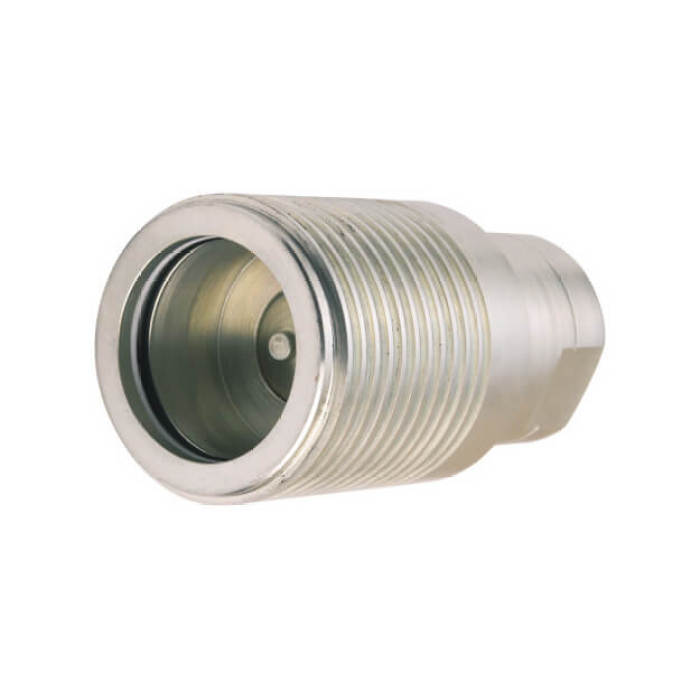

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | E(mm) | C(mm) | T |
| HFSFP10834-3/4″ | 3/4” | 83 | 32 | 44.5 | 3/4”NPT |
| HFSFP10810-1″ | 1” | 106 | 41 | 57 | 1”NPT |
| HFSFP108114-1-1/4″ | 1-1/4” | 136 | 50 | 66.5 | 1-1/4”NPT |
| HFSFP108112-1-1/2″ | 1-1/2” | 150 | 58 | 82.5 | 1-1/2”NPT |
| HFSFP10820-2″ | 2” | 179 | 75 | 101.5 | 2”NPT |

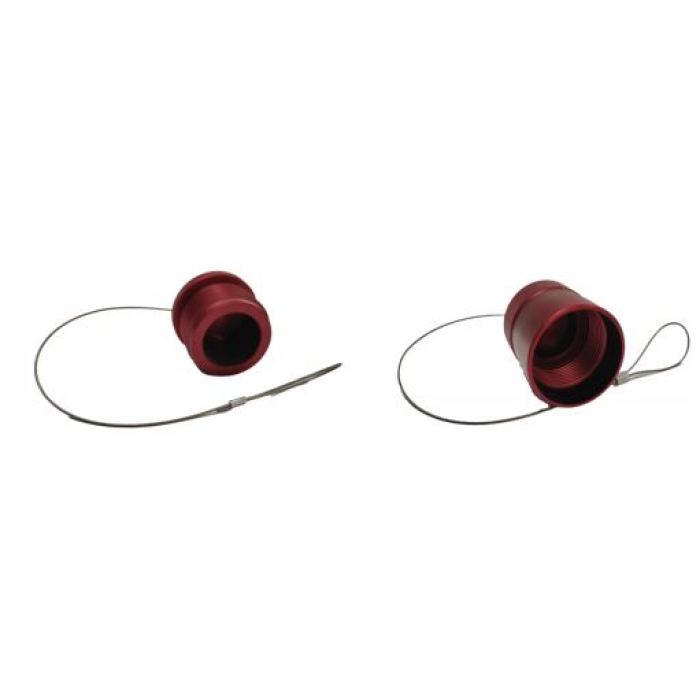

Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug For Coupler | Art. No.Dust Plug For Plug | Material |
| 12 | 19 | HFSFC10834-00-TAO | HFSFP10834-00-TAO | Aluminum |
| 16 | 25 | HFSFC10810-00-TAO | HFSFP10810-00-TAO | Aluminum |
| 20 | 31 | HFSFC108114-00-TAO | HFSFP108114-00-TAO | Aluminum |
| 24 | 40 | HFSFC108112-00-TAO | HFSFP108112-00-TAO | Aluminum |
| 32 | 50 | HFSFC10820-00-TAO | HFSFP10820-00-TAO | Aluminum |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 12 | 3/4″ | 350 | 350 | 350 | 1680 | 1600 | 1650 | 8 |
| 16 | 1″ | 350 | 350 | 350 | 1650 | 1650 | 1720 | 18 |
| 20 | 1-1/4″ | 350 | 350 | 350 | 1800 | 2000 | 1780 | 21 |
| 24 | 1-1/2″ | 350 | 350 | 350 | 1600 | 1760 | 1700 | 41 |
| 32 | 2″ | 350 | 350 | 350 | 1250 | 1300 | 1250 | 85 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | EATON AEROQUIP FD86 SERIESSNAP-TITE 75 SERIESFASTER OGV SERIESSTUCCHI VOF SERIESDIXON WS SERIESVOSWINKEL HV SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw To Connect | |
| Disconnection: | Unscrew To Disconnect | |
| Connection Under Pressure: | Allowed Residual | |

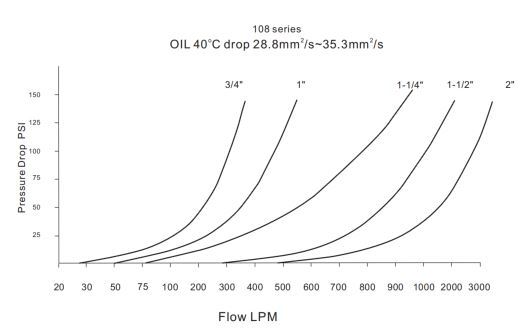

Pressure Drop
Pressure Drop
