EH 99 Series – CVE Screw-To-Connect Wing Nut Couplers For Road Machines Applications (Steel)
This EH series is interchangeable with DNP PVE1 SERIES, FASTER CVE SERIES, VOSWINKEL HT SERIES, and INTEVA VCR SERIES Heavy-duty couplings engineered for transport industry applications. Features a screw-on sleeve with integrated hexagonal wing nuts for secure tool-assisted installation and manual adjustment capability.
Interchange
- DNP PVE1 SERIES
- FASTER CVE SERIES
- VOSWINKEL HT SERIES
- INTEVA VCR SERIES

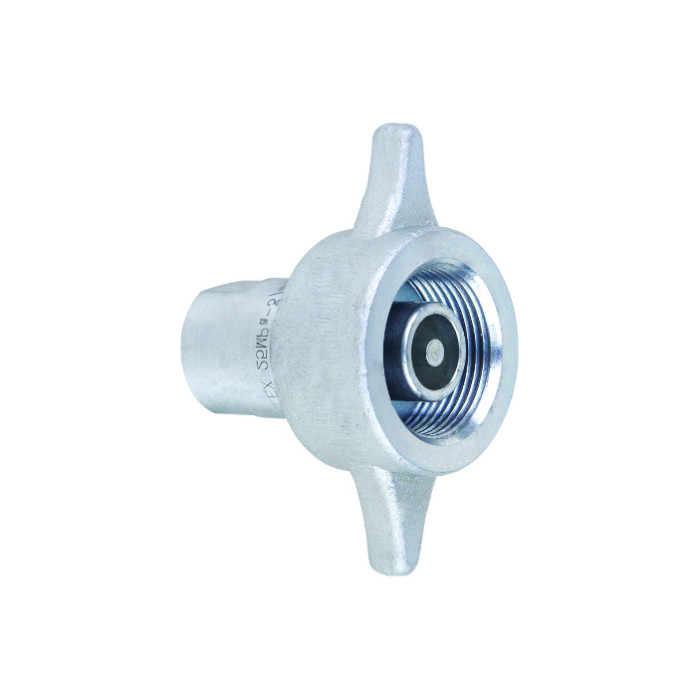

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | UN | H(mm) | Ls(mm) | T |
| HFSFC9934-3/4″ | 3/4” | 1-3/4-10UNS | 114 | 77 | 3/4″BSPP |
| HFSFC9910-1″ | 1” | 2-1/8-10UNS | 114 | 83 | 1″BSPP |

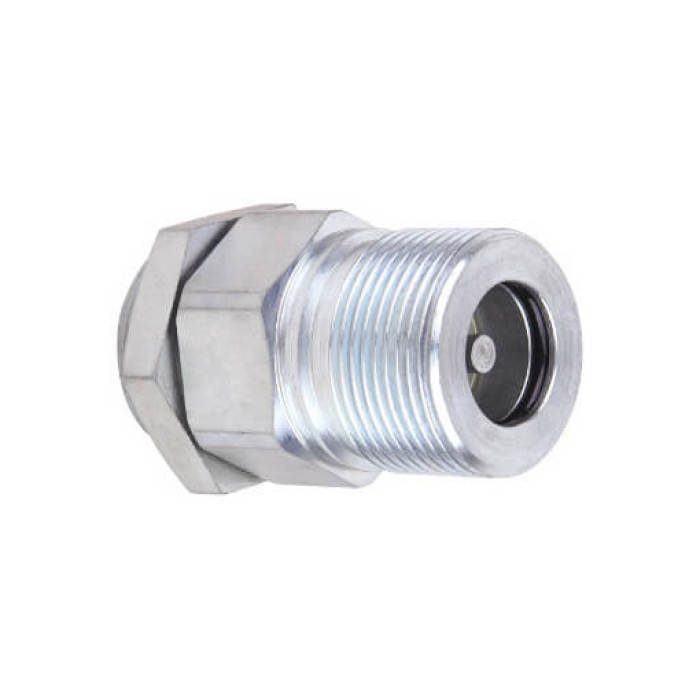

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | UN | Lp(mm) | D(mm) | d(mm) | T |
| HFSFP9934-3/4″ | 3/4” | 1-3/4-10UNS | 78 | 57 | 25.4 | 3/4″BSPP |
| HFSFP9910-1″ | 1” | 2-1/8-10UNS | 83 | 60 | 31.8 | 1″BSPP |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 12 | 3/4” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 10 |
| 16 | 1” | 250 | 250 | 250 | 1000 | 900 | 1000 | 15 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER CVE SERIESVOSWINKEL HT SERIESINTEVA VCR SERIESDNP PVE1 SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw To Connect | |
| Disconnection: | Unscrew To Disconnect | |
| Connection Under Pressure: | Allowed Residual | |

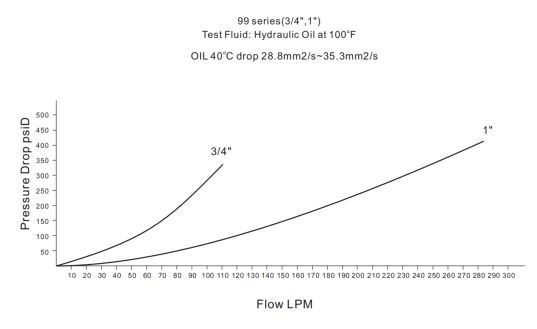

Pressure Drop
Pressure Drop
