EH 186 Series – VVM Screw To Connect Quick Couplings, Metal To Metal Seal (Steel)
This EH series is interchangeable with the FASTER VVM SERIES. Steel Product. VVM couplings feature a screw-to-connect sleeve and a metal-to-metal sealing mechanism upon disconnection. They utilize a poppet valve for positive shut-off.
EH 186 Series – VVM Screw To Connect Quick Couplings, Metal To Metal Seal (Steel)
This EH series is interchangeable with the FASTER VVM SERIES. Steel Product. VVM couplings feature a screw-to-connect sleeve and a metal-to-metal sealing mechanism upon disconnection. They utilize a poppet valve for positive shut-off.
Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | HS(mm) | T |
| HFSFC18638-G3/8 | 3/8” | 74 | 38 | S24 | BSPP 3/8″ FEMALE |
Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | HP(mm) | T |
| HFSFP18638-G3/8 | 3/8” | 40.5 | S24 | BSPP 3/8″ FEMALE |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 430 | 430 | 430 | 1300 | 1400 | 2100 | 2 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER VVM SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Not Allowed | |

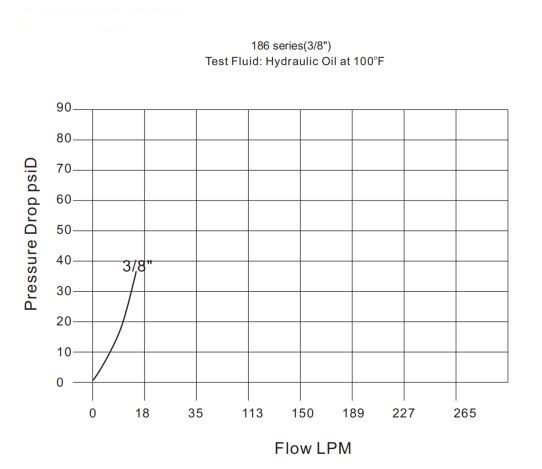

Pressure Drop
Pressure Drop
