EH 92 Series – CVV ISO 14541 Screw-To-Connect Quick Couplings (Stainless Steel)
This EH series is interchangeable with DNP PVVX SERIES, FASTER CVV SERIES, and VOSWINKEL HS-VA SERIES. General-purpose screw couplings designed for reliable operation under residual pressure conditions. Engineered to withstand high-pressure surges and flow impulses while maintaining ISO 14541 interchangeability.
Interchange
- DNP PVVX SERIES
- VOSWINKEL HS-VA SERIES
- FASTER CVV SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 92 Series – CVV ISO 14541 Screw-To-Connect Quick Couplings (Stainless Steel)
This EH series is interchangeable with DNP PVVX SERIES, FASTER CVV SERIES, and VOSWINKEL HS-VA SERIES. General-purpose screw couplings designed for reliable operation under residual pressure conditions. Engineered to withstand high-pressure surges and flow impulses while maintaining ISO 14541 interchangeability.

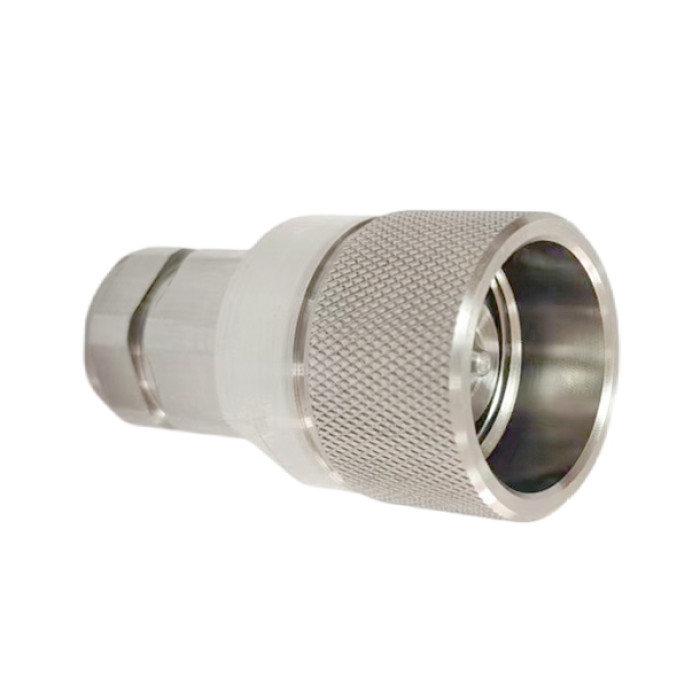

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | B(mm) | Hs(mm) | T |
| HFSSFC9214-1/4″ | 1/4” | 69.5 | 13 | 19 | 1/4″BSPP |
| HFSSFC9238-3/8″ | 3/8” | 69.5 | 17.5 | 24 | 3/8″BSPP |
| HFSSFC9212-1/2″ | 1/2” | 71.5 | 22.1 | 30 | 1/2″BSPP |
| HFSSFC9234-3/4″ | 3/4” | 85 | 28.1 | 36 | 3/4″BSPP |
| HFSSFC9210-1″ | 1” | 100 | 35 | 41 | 1″BSPP |

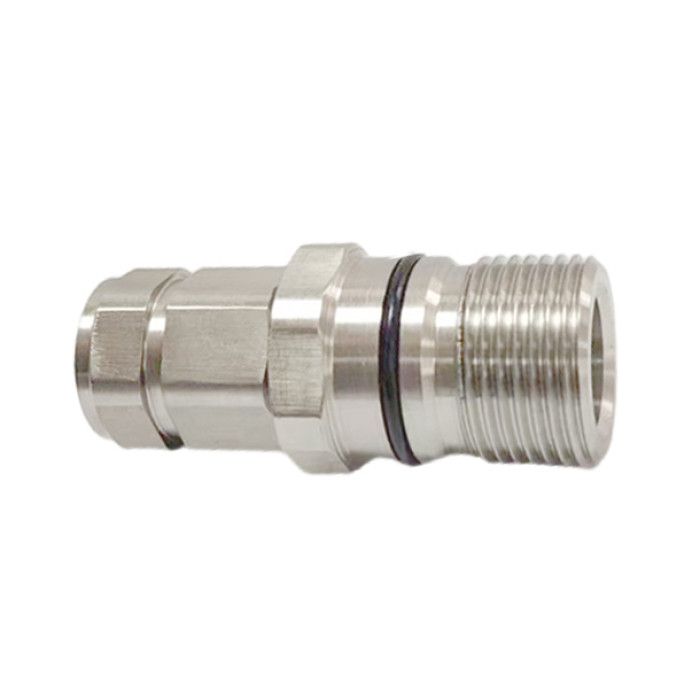

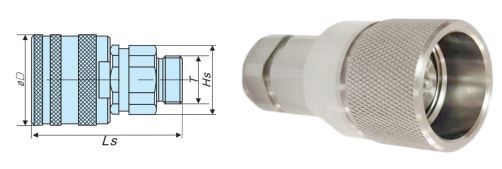

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSSFP9214-1/4″ | 1/4” | 62 | 30 | S19 | 1/4″BSPP |
| HFSSFP9238-3/8″ | 3/8” | 64 | 35 | S24 | 3/8″BSPP |
| HFSSFP9212-1/2″ | 1/2” | 67 | 42 | S30 | 1/2″BSPP |
| HFSSFP9234-3/4″ | 3/4” | 78 | 48 | S36 | 3/4″BSPP |
| HFSSFP9210-1″ | 1” | 87 | 55 | S41 | 1″BSPP |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 300 | 300 | 300 | 900 | 900 | 900 | 0.8 |
| 06 | 3/8” | 300 | 300 | 300 | 900 | 900 | 900 | 1.3 |
| 08 | 1/2″ | 250 | 250 | 250 | 800 | 750 | 750 | 1.8 |
| 12 | 3/4″ | 250 | 250 | 250 | 800 | 750 | 750 | 8 |
| 16 | 1″ | 200 | 200 | 200 | 700 | 650 | 650 | 13 |
| Material: | Stainless Steel | |
| Seals: | FKM, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -20 °C to 200 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | FASTER CVV SERIESDNP PVVX SERIESVOSWINKEL HS-VA SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Allowed Residual | |

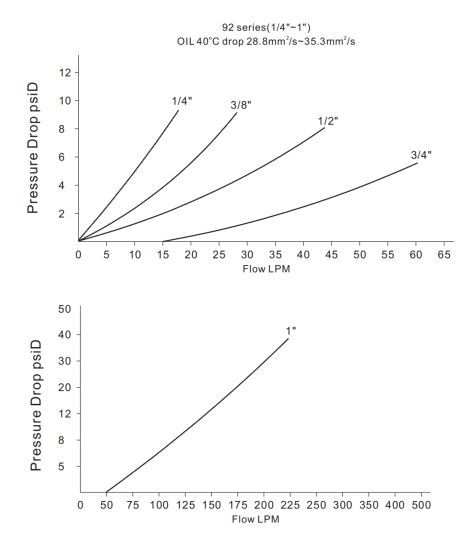

Pressure Drop
Pressure Drop
