EH 87 Series – CVV ISO 14541 European Screw Quick Coupler (Steel)

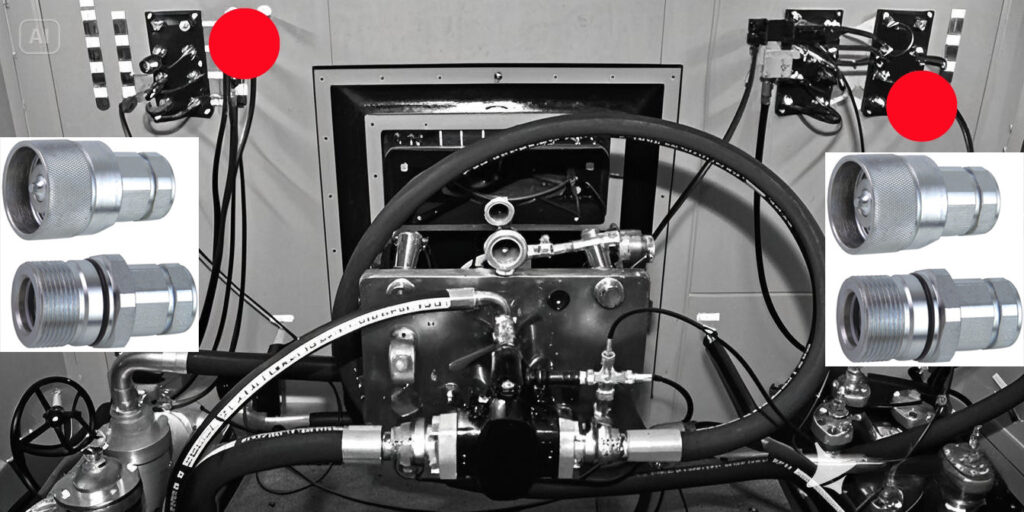

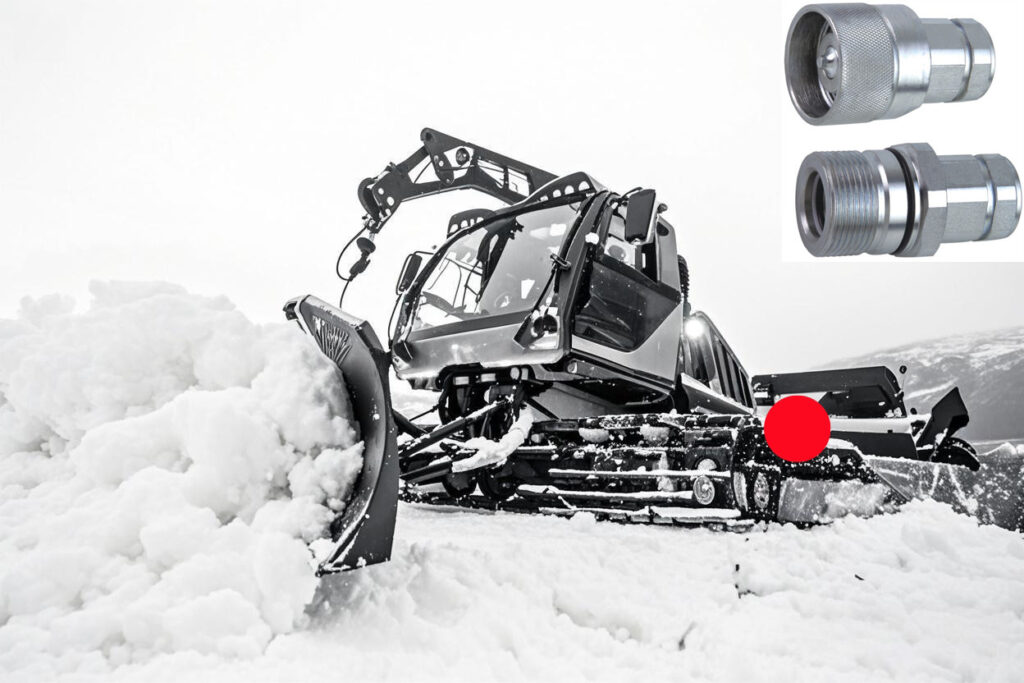

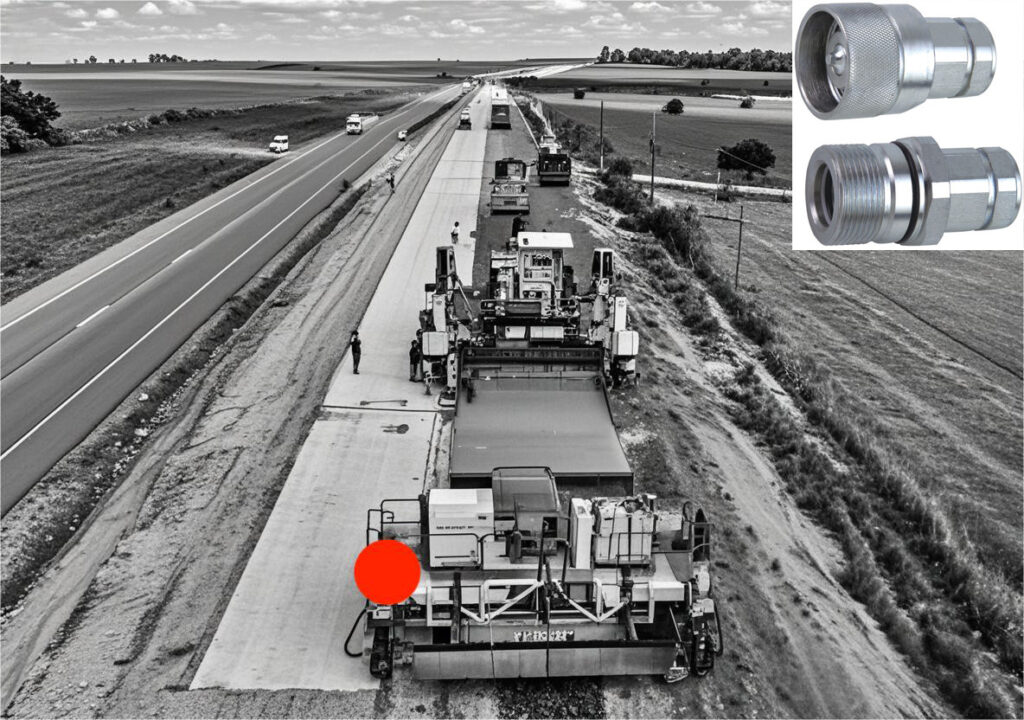

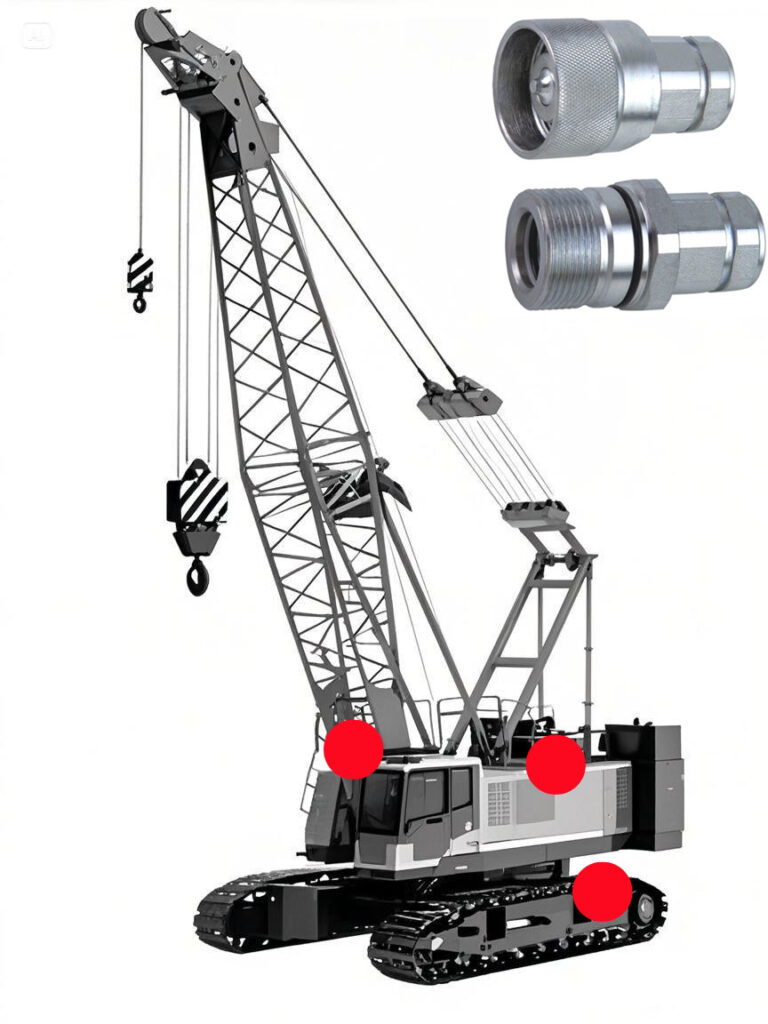

This EH series is interchangeable with STUCCHI VD SERIES, FASTER CVV SERIES, VOSWINKEL HS SERIES, DNP PVV3 SERIES, DIXON CVV SERIES, and GROMELLE 626-A SERIES. General-purpose screw-on couplings designed for reliable performance under residual pressure conditions. Engineered to withstand high-pressure impulses and flow surges while maintaining ISO 14541 interchangeability.
Interchange
- STUCCHI VD SERIES
- FASTER CVV SERIES
- VOSWINKEL HS SERIES
- DNP PVV3 SERIES
- DIXON CVV SERIES
- GROMELLE 626-A SERIES

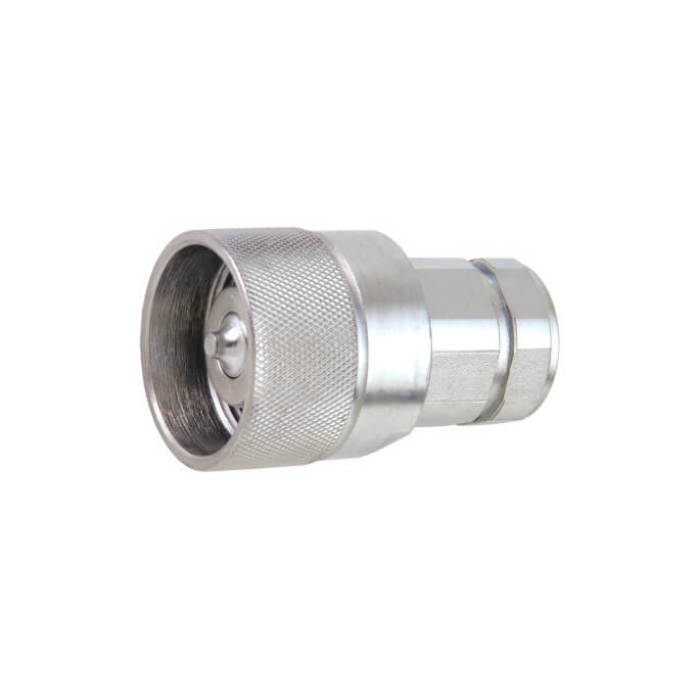

Female Coupler
Female Coupler

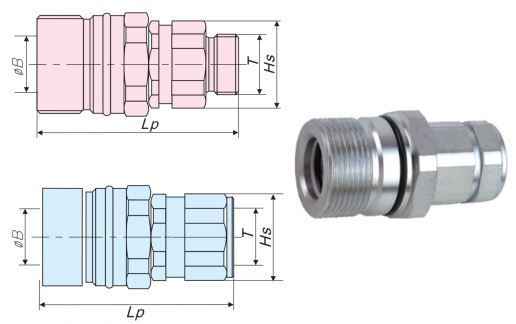

| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | B(mm) | Hs(mm) | T |
| HFSMC8714-M12X1.5-6L | 1/4” | 65.5 | 13 | S19 | M12X1.5 MALE 6L |
| HFSMC8714-M14X1.5-8L | 1/4” | 65.5 | 13 | S19 | M14X1.5 MALE 8L |
| HFSMC8714-M14X1.5-8L | 1/4” | 81.5 | 13 | S19 | M14X1.5 MALE Bulkhead short 8L |
| HFSMC8738-M16X1.5-10L | 3/8” | 66.5 | 17.5 | S24 | M16X1.5 MALE 10L |
| HFSMC8712-M16X1.5-10L | 1/2” | 66.5 | 22.1 | S30 | M16X1.5 MALE 10L |
| HFSMC8712-M18X1.5-12L | 1/2” | 66.5 | 22.1 | S30 | M18X1.5 MALE 12L |
| HFSMC8712-M22X1.5-15L | 1/2” | 67.5 | 22.1 | S30 | M22X1.5 MALE 15L |
| HFSMC8712-M16X1.5-10L | 1/2” | 90 | 22.1 | S30 | M16X1.5 MALE Bulkhead 10L |
| HFSMC8712-M18X1.5-12L | 1/2” | 90 | 22.1 | S30 | M18X1.5 MALE Bulkhead 12L |
| HFSMC8712-M22X1.5-15L | 1/2” | 90 | 22.1 | S30 | M22X1.5 MALE Bulkhead 15L |
| HFSMC8712-M16X1.5-10L | 1/2” | 81 | 22.1 | S30 | M16X1.5 MALE Bulkhead Short 10L |
| HFSMC8712-M18X1.5-12L | 1/2” | 81 | 22.1 | S30 | M18X1.5 MALE Bulkhead Short 12L |
| HFSMC8712-M22X1.5-15L | 1/2” | 81 | 22.1 | S30 | M22X1.5 MALE Bulkhead Short 15L |
| HFSMC8710-M30x2-22L | 1” | 93 | 35 | S41 | M30X2 MALE 22L |
| HFSMC8710-M36X2-28L | 1” | 93 | 35 | S41 | M36X2 MALE 28L |
| HFSMC8710-M30X2-22L | 1” | 115 | 35 | S41 | M30X2 MALE Bulkhead 22L |
| HFSMC8710-M36X2-28L | 1” | 115 | 35 | S41 | M36X2 MALE Bulkhead 28L |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | B(mm) | Hs(mm) | T |
| HFSMC8712-M20X1.5-12S | 1/2” | 67.5 | 22.1 | S30 | M20X1.5 MALE 12S |
| HFSMC8712-M22X1.5-14S | 1/2” | 67.5 | 22.1 | S30 | M22X1.5 MALE 14S |
| HFSMC8712-M24X1.5-16S | 1/2” | 69.5 | 22.1 | S30 | M24X1.5 MALE 16S |
| HFSMC8712-M20X1.5-12S | 1/2” | 90 | 22.1 | S30 | M20X1.5 MALE Bulkhead 12S |
| HFSMC8712-M22X1.5-14S | 1/2” | 90 | 22.1 | S30 | M22X1.5 MALE Bulkhead 14S |
| HFSMC8712-M24X1.5-16S | 1/2” | 90 | 22.1 | S30 | M24X1.5 MALE Bulkhead 16S |
| HFSMC8712-M20X1.5-12S | 1/2” | 81 | 22.1 | S30 | M20X1.5 MALE Bulkhead short 12S |
| HFSMC8712-M22X1.5-14S | 1/2” | 81 | 22.1 | S30 | M22X1.5 MALE Bulkhead short 14S |
| HFSMC8712-M24X1.5-16S | 1/2” | 81 | 22.1 | S30 | M24X1.5 MALE Bulkhead short 16S |
| HFSMC8710-M30x2-20S | 1” | 95 | 35 | S41 | M30X2 MALE 20S |
| HFSMC8710-M36X2-25S | 1” | 97 | 35 | S41 | M36X2 MALE 25S |
| HFSMC8710-M42X2-30S | 1” | 99 | 35 | S41 | M42X2 MALE 30S |
| HFSMC8710-M30x2-20S | 1” | 119 | 35 | S41 | M30X2 MALE Bulkhead 20S |
| HFSMC8710-M36X2-25S | 1” | 119 | 35 | S41 | M36X2 MALE Bulkhead 25S |
| HFSMC8710–M42X2-30S | 1” | 121 | 35 | S41 | M42X2 MALE Bulkhead 30S |
| Art. No. | Body Size (inch) | Lp(mm) | B(mm) | Hs(mm) | T |
| HFSFC8714-1/4″ | 1/4” | 69.5 | 13 | S19 | 1/4″ BSPP FEMALE |
| HFSFC8738-3/8″ | 3/8” | 69.5 | 17.5 | S24 | 3/8″ BSPP FEMALE |
| HFSFC8712-1/2″ | 1/2” | 71.5 | 22.1 | S30 | 1/2″ BSPP FEMALE |
| HFSFC8734-3/4″ | 3/4” | 85 | 28.1 | S36 | 3/4″ BSPP FEMALE |
| HFSFC8710-1″ | 1” | 100 | 35 | S41 | 1″ BSPP FEMALE |

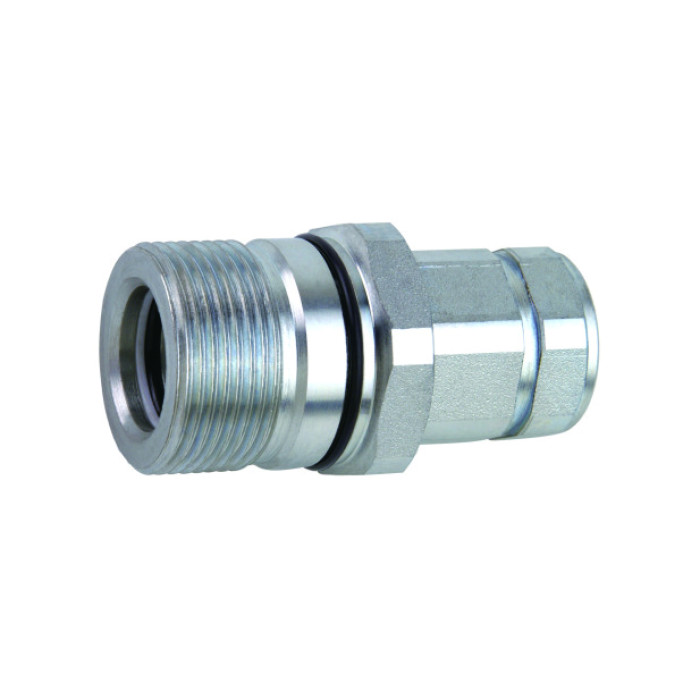

Male Plug
Male Plug

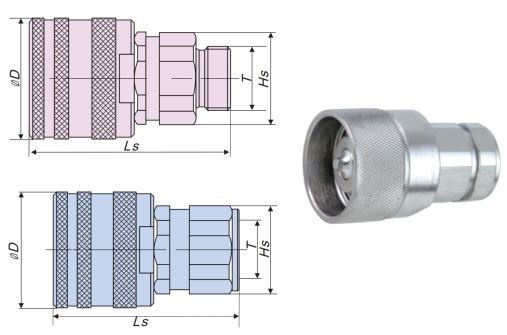

| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSMP8714-M12X1.5-6L | 1/4” | 58 | 30 | S19 | M12X1.5 MALE 6L |
| HFSMP8714-M14X1.5-8L | 1/4” | 58 | 30 | S19 | M14X1.5 MALE 8L |
| HFSMP8714-M14X1.5-8L | 1/4” | 74 | 30 | S19 | M14X1.5 MALE Bulkhead short 8L |
| HFSMP8738-M16X1.5-10L | 3/8” | 61 | 35 | S24 | M16X1.5 MALE 10L |
| HFSMP8712-M16X1.5-10L | 1/2” | 62 | 42 | S30 | M16X1.5 MALE 10L |
| HFSMP8712-M18X1.5-12L | 1/2” | 62 | 42 | S30 | M18X1.5 MALE 12L |
| HFSMP8712-M22X1.5-15L | 1/2” | 63 | 42 | S30 | M22X1.5 MALE 15L |
| HFSMP8712-M16X1.5-10L | 1/2” | 85 | 42 | S30 | M16X1.5 MALE Bulkhead 10L |
| HFSMP8712-M18X1.5-12L | 1/2” | 85 | 42 | S30 | M18X1.5 MALE Bulkhead 12L |
| HFSMP8712-M22X1.5-15L | 1/2” | 85 | 42 | S30 | M22X1.5 MALE Bulkhead 15L |
| HFSMP8712-M16X1.5-10L | 1/2” | 76 | 42 | S30 | M16X1.5 MALE Bulkhead Short 10L |
| HFSMP8712-M18X1.5-12L | 1/2” | 76 | 42 | S30 | M18X1.5 MALE Bulkhead Short 12L |
| HFSMP8712-M22X1.5-15L | 1/2” | 76 | 42 | S30 | M22X1.5 MALE Bulkhead Short 15L |
| HFSMP8710-M30x2-22L | 1” | 80 | 55 | S41 | M30X2 MALE 22L |
| HFSMP8710-M36X2-28L | 1” | 80 | 55 | S41 | M36X2 MALE 28L |
| HFSMP8710-M30X2-34-22L | 1” | 102 | 55 | S41 | M30X2 MALE Bulkhead 22L |
| HFSMP8710-M36X2-34-28L | 1” | 102 | 55 | S41 | M36X2 MALE Bulkhead 28L |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSMP8712-M20X1.5-12S | 1/2” | 63 | 42 | S30 | M20X1.5 MALE 12S |
| HFSMP8712-M22X1.5-14S | 1/2” | 65 | 42 | S30 | M22X1.5 MALE 14S |
| HFSMP8712-M24X1.5-16S | 1/2” | 65 | 42 | S30 | M24X1.5 MALE 16S |
| HFSMP8712-M20X1.5-12S | 1/2” | 85 | 42 | S30 | M20X1.5 MALE Bulkhead 12S |
| HFSMP8712-M22X1.5-14S | 1/2” | 85 | 42 | S30 | M22X1.5 MALE Bulkhead 14S |
| HFSMP8712-M24X1.5-16S | 1/2” | 85 | 42 | S30 | M24X1.5 MALE Bulkhead 16S |
| HFSMP8712-M20X1.5-12S | 1/2” | 76 | 42 | S30 | M20X1.5 MALE Bulkhead short 12S |
| HFSMP8712-M22X1.5-14S | 1/2” | 76 | 42 | S30 | M22X1.5 MALE Bulkhead short 14S |
| HFSMP8712-M24X1.5-16S | 1/2” | 76 | 42 | S30 | M24X1.5 MALE Bulkhead short 16S |
| HFSMP8710-M30x2-20S | 1” | 82 | 55 | S41 | M30X2 MALE 20S |
| HFSMP8710-M36X2-25S | 1” | 84 | 55 | S41 | M36X2 MALE 25S |
| HFSMP8710-M42X2-30S | 1” | 86 | 55 | S41 | M42X2 MALE 30S |
| HFSMP8710-M30x2-38-20S | 1” | 108 | 55 | S41 | M30X2 MALE Bulkhead 20S |
| HFSMP8710-M36X2-38-25S | 1” | 108 | 55 | S41 | M36X2 MALE Bulkhead 25S |
| HFSMP8710–M42X2-40-30S | 1” | 110 | 55 | S41 | M42X2 MALE Bulkhead 30S |
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFP8714-1/4″ | 1/4” | 62 | 30 | S19 | 1/4″ BSPP FEMALE |
| HFSFP8738-3/8″ | 3/8” | 64 | 35 | S24 | 3/8″ BSPP FEMALE |
| HFSFP8712-1/2″ | 1/2” | 67 | 42 | S30 | 1/2″ BSPP FEMALE |
| HFSFP8734-3/4″ | 3/4” | 78 | 48 | S48 | 3/4″ BSPP FEMALE |
| HFSFP8710-1″ | 1” | 87 | 55 | S55 | 1″ BSPP FEMALE |
Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Cap For Coupler | Art. No.Dust Cap For Coupler | Material |
| 04 | 6.3 | ISO-14541-1/4-C-AL | ISO-14541-1/4-P-AL | Aluminum |
| 06 | 10 | ISO-14541-3/8-C-AL | ISO-14541-3/8-P-AL | Aluminum |
| 08 | 12.5 | ISO-14541-1/2-C-AL | ISO-14541-1/2-P-AL | Aluminum |
| 12 | 20 | ISO-14541-3/4-C-AL | ISO-14541-3/4-P-AL | Aluminum |
| 16 | 25 | ISO-14541-1-C-AL | ISO-14541-1-P-AL | Aluminum |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 370 | 370 | 370 | 1500 | 1600 | 1900 | 0.8 |
| 06 | 3/8” | 300 | 300 | 300 | 1200 | 1300 | 1700 | 1.3 |
| 08 | 1/2” | 300 | 300 | 300 | 1200 | 1400 | 1400 | 1.8 |
| 12 | 3/4” | 270 | 270 | 300 | 1100 | 1200 | 1300 | 8 |
| 16 | 1” | 270 | 270 | 270 | 1100 | 1300 | 1400 | 13 |
| Material: | Steel | |
| Seals: | NBR, FKM, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, -20 °C to 200 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | FASTER CVV SERIESSTUCCHI VD SERIESDNP PVV3 SERIESVOSWINKEL HS SERIESGROMELLE 626-A SERIESDIXON CVV SERIES |
| Valve Type: | Poppet | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Allowed Residual | |

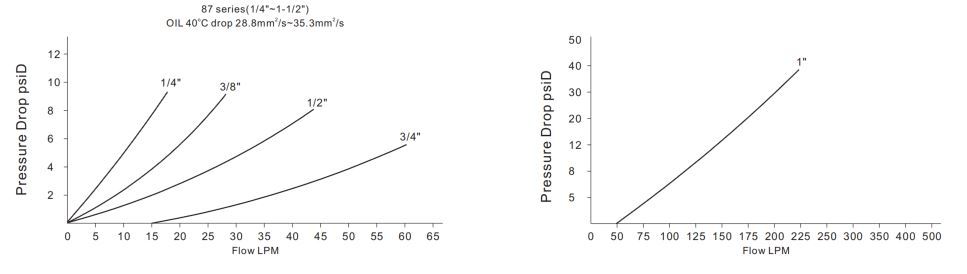

Pressure Drop
Pressure Drop
