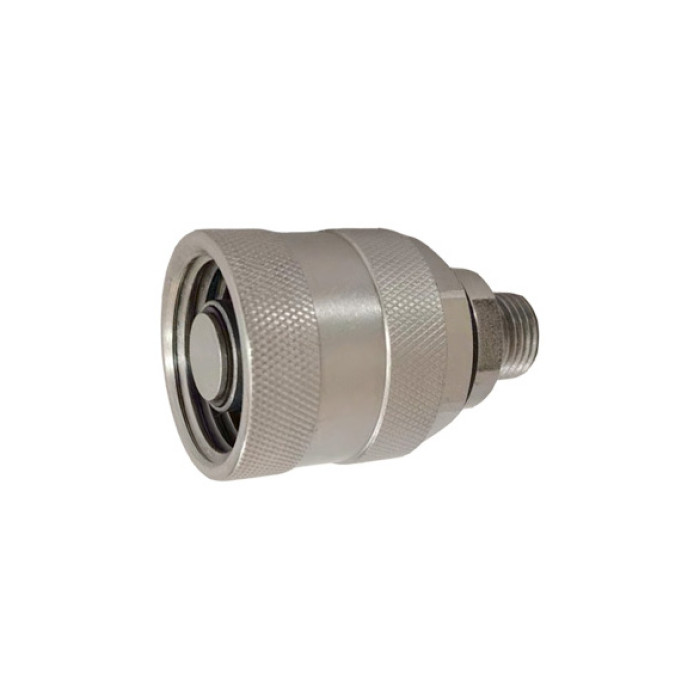

EH 64 Series – VR German Screw Quick Coupler (Steel)
This EH series is interchangeable with STUCCHI VR SERIES, FASTER FLV SERIES, VOSWINKEL RH SERIES, VOSWINKEL RK SERIES, and DNP PRH3 SERIES. Steel Product. The 64 Series German Screw Coupler features a low-leakage valve for sealing and threaded connections, enabling secure mating even under residual pressure. Its robust construction makes it ideal for demanding applications, including mobile construction and industrial hydraulics.
Interchange
- STUCCHI VR SERIES
- FASTER FLV SERIES
- VOSWINKEL RH SERIES
- VOSWINKEL RK SERIES
- DNP PRH3 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 64 Series – VR German Screw Quick Coupler (Steel)
This EH series is interchangeable with STUCCHI VR SERIES, FASTER FLV SERIES, VOSWINKEL RH SERIES, VOSWINKEL RK SERIES, and DNP PRH3 SERIES. Steel Product. The 64 Series German Screw Coupler features a low-leakage valve for sealing and threaded connections, enabling secure mating even under residual pressure. Its robust construction makes it ideal for demanding applications, including mobile construction and industrial hydraulics.
Interchange
- STUCCHI VR SERIES
- FASTER FLV SERIES
- VOSWINKEL RH SERIES
- VOSWINKEL RK SERIES
- DNP PRH3 SERIES

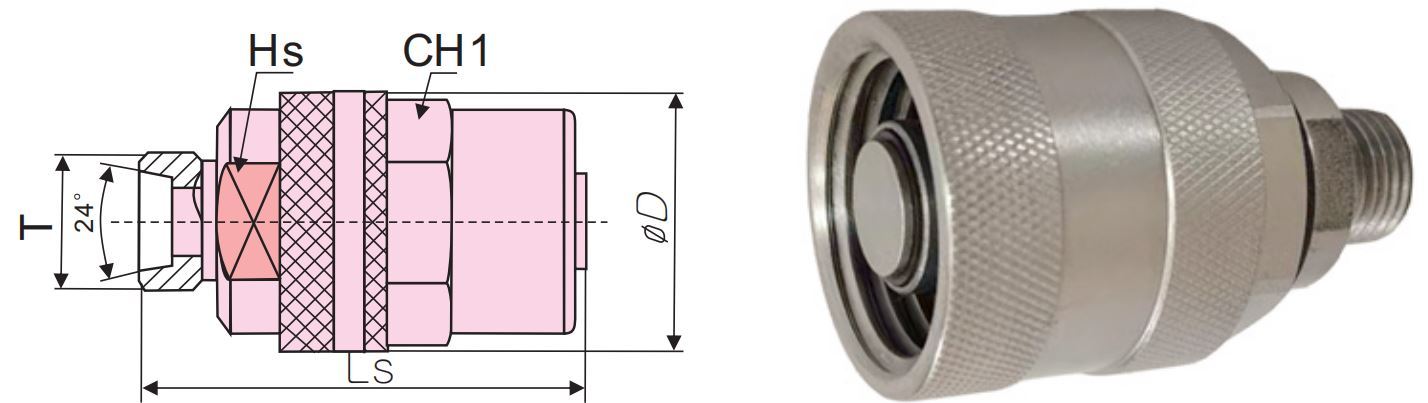

Female Coupler
Female Coupler
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | CH1(mm) | T |
| HFSMC6438-M16X1.5 | 3/8” | 61.6 | 38.7 | 22 | 32 | M16X1.5/L10 |
| HFSMC6438-M18X1.5 | 3/8” | 61.6 | 38.7 | 22 | 32 | M18X1.5/L12 |
| HFSMC6438-M22X1.5 | 3/8” | 62.6 | 38.7 | 22 | 32 | M22X1.5/L15 |
| HFSMC6412-M22X1.5 | 1/2” | 71.6 | 54 | 24 | 46 | M22X1.5/L15 |
| HFSMC6434-M22X1.5 | 3/4” | 84.1 | 68 | 32 | 60 | M22X1.5/L15 |
| HFSMC6434-M26X1.5 | 3/4” | 84.1 | 68 | 32 | 60 | M26X1.5/L18 |
| HFSMC6410-M26X1.5 | 1” | 107 | 64 | 41 | 55 | M26X1.5/L18 |
| HFSMC6410-M30X1.5 | 1” | 109 | 64 | 41 | 55 | M30X1.5/L22 |
| HFSMC6410-M36X2 | 1” | 109 | 64 | 41 | 55 | M36X2/128 |
| HFSMC64114-M45X2 | 1-1/4” | 130.4 | 89.7 | 55 | / | M45X2/L30 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | CH1(mm) | T |
| HFSMC6438-M18X1.5 | 3/8” | / | / | / | / | M18X1.5/S10 |
| HFSMC6438-M20X1.5 | 3/8” | 64.6 | 38.7 | 22 | 32 | M20X1.5/S12 |
| HFSMC6438-M22X1.5 | 3/8” | 64.6 | 38.7 | 22 | 32 | M22X1.5/S14 |
| HFSMC6438-M24X1.5 | 3/8” | 64.6 | 83.7 | 22 | 32 | M24X1.5/S16 |
| HFSMC6412-M24X1.5 | 1/2” | 73.6 | 54 | 24 | 46 | M24X1.5/S16 |
| HFSMC6412-M30X2 | 1/2” | 100.8 | 54 | 32 | 46 | M30X2/S20 |
| HFSMC6434-M24X1.5 | 3/4” | 86.1 | 68 | 32 | 60 | M24X1.5/S16 |
| HFSMC6434-M30X2 | 3/4” | 86.1 | 68 | 32 | 60 | M30X2/S20 |
| HFSMC6410-M30X2 | 1” | 111 | 64 | 41 | 55 | M30X2/S20 |
| HFSMC6410-M36X2 | 1” | 113 | 64 | 41 | 55 | M36X2/S25 |
| HFSMC6410-M42X2 | 1” | 115 | 64 | 41 | 55 | M42X2/S30 |
| HFSMC64114-M52X2 | 1-1/4” | 136.4 | 89.7 | 55 | / | M52X2/S38 |

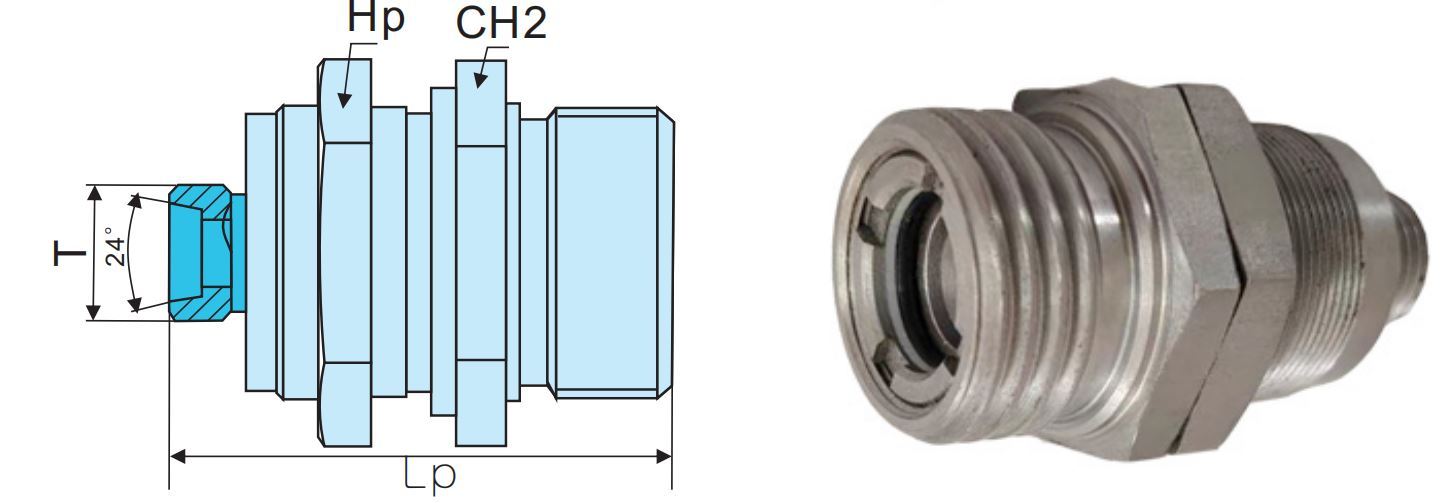

Male Plug
Male Plug
| L/Light-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | CH2(mm) | T |
| HFSMP6438-M16X1.5 | 3/8” | 60 | 36 | 36 | M16X1.5/L10 |
| HFSMP6438-M18X1.5 | 3/8” | 60 | 36 | 36 | M18X1.5/L12 |
| HFSMP6438-M22X1.5 | 3/8” | 61 | 36 | 36 | M22X1.5/L15 |
| HFSMP6412-M22X1.5 | 1/2” | 69.7 | 41 | 41 | M22X1.5/L15 |
| HFSMP6434-M22X1.5 | 3/4” | 90.1 | 50 | 55 | M22X1.5/L15 |
| HFSMP6434-M26X1.5 | 3/4” | 90.1 | 50 | 55 | M26X1.5/L18 |
| HFSMP6410-M26X1.5 | 1” | 96.2 | 60 | 55 | M26X1.5/L18 |
| HFSMP6410-M30X1.5 | 1” | 98.2 | 60 | 55 | M30X1.5/L22 |
| HFSMP6410-M36X2 | 1” | 98.2 | 60 | 55 | M36X2/L28 |
| HFSMP64114-M45X2 | 1-1/4” | 123 | 90.5 | 85 | M45X2/L30 |
| S/Heavy-Duty, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | CH2(mm) | T |
| HFSMP6438-M18X1.5 | 3/8” | 61 | 36 | 36 | M18X1.5/S10 |
| HFSMP6438-M20X1.5 | 3/8” | 61 | 36 | 36 | M20X1.5/S12 |
| HFSMP6438-M22X1.5 | 3/8” | 63 | 36 | 36 | M22X1.5/S14 |
| HFSMP6438-M24X1.5 | 3/8” | 63 | 36 | 36 | M24X1.5/S16 |
| HFSMP6412-M24X1.5 | 1/2” | 71.7 | 41 | 41 | M24X1.5/S16 |
| HFSMP6412-M30X2 | 1/2” | 73.7 | 41 | 41 | M30X2/S20 |
| HFSMP6434-M24X1.5 | 3/4” | / | / | / | M24X1.5/S16 |
| HFSMP6434-M30X2 | 3/4” | 94.1 | 50 | 55 | M30X2/S20 |
| HFSMP6410-M30X2 | 1” | 100.2 | 60 | 55 | M30X2/S20 |
| HFSMP6410-M36X2 | 1” | 100.2 | 60 | 55 | M36X2/S25 |
| HFSMP6410-M42X2 | 1” | 104.2 | 60 | 55 | M42X2/S30 |
| HFSMP64114-M52X2 | 1-1/4” | 129 | 90.5 | 85 | M52X2/S38 |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 420 | 420 | 420 | 1300 | 1400 | 2500 | 0.02 |
| 08 | 1/2” | 420 | 420 | 420 | 1300 | 1300 | 2000 | 0.02 |
| 12 | 3/4” | 420 | 420 | 420 | 1200 | 1300 | 1300 | 0.06 |
| 16 | 1” | 420 | 420 | 420 | 1300 | 1400 | 1700 | 0.1 |
| 20 | 1-1/4” | 420 | 420 | 420 | 1200 | 1200 | 1300 | 1 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 1000 (ZnNi) | |
| Specifications: | Market Interchange | STUCCHI VR SERIESVOSWINKEL RH SERIESVOSWINKEL RK SERIESFASTER FLV SERIESDNP PRH3 SERIES |
| Valve Type: | Flat | |
| Connection: | Screw to Connect | |
| Disconnection: | Unscrew to Disconnect | |
| Connection Under Pressure: | Not Allowed | |

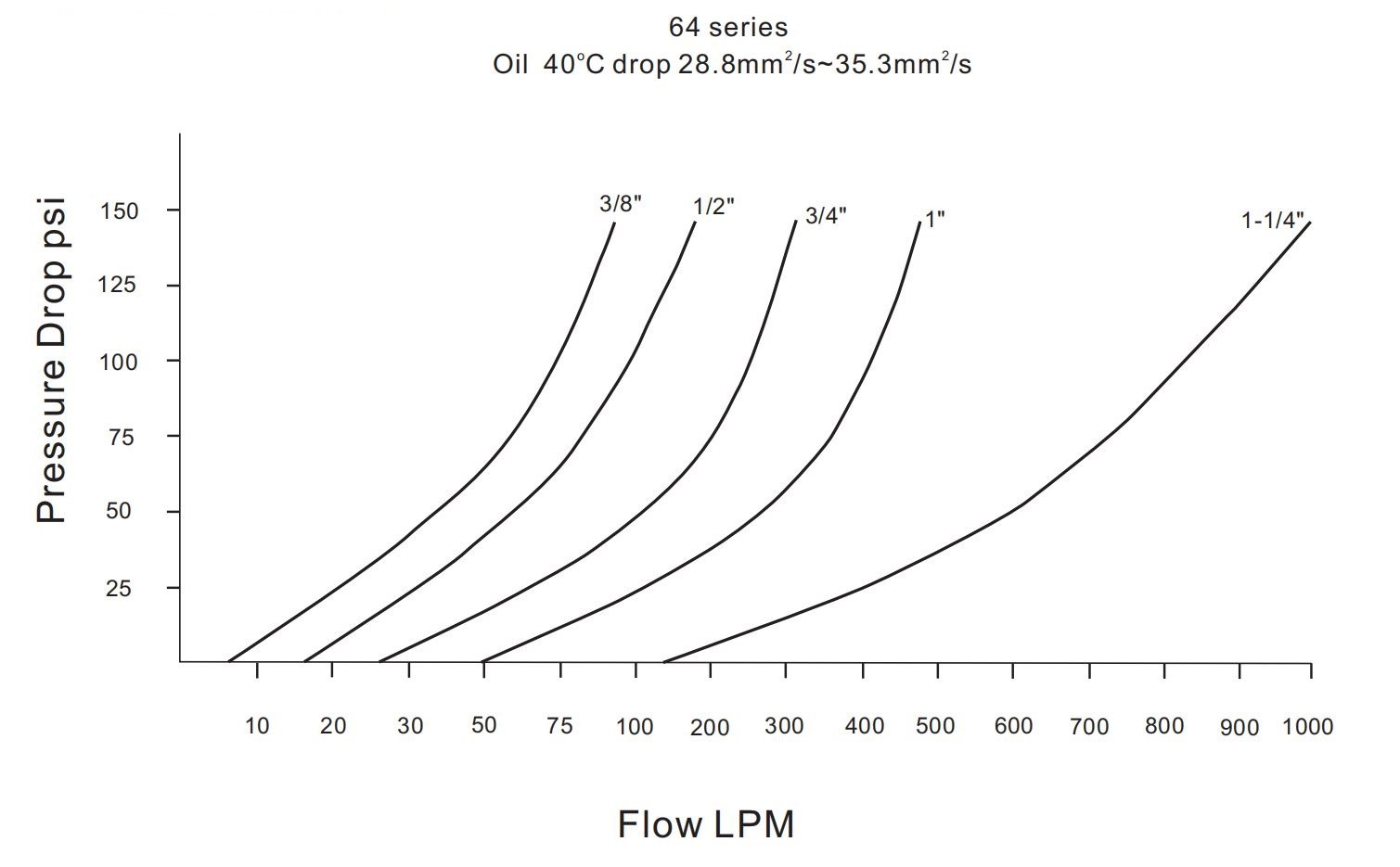

Pressure Drop
Pressure Drop
