EH 200/202 Series – Nordic TEMA Model Quick Couplers With Pressure Eliminator (Steel, Brass)
This EH series is interchangeable with CEJN 525 SERIES, STUCCHI IRC SERIES, TEMA T SERIES, DNP PTK1 SERIES, DIXON TR SERIES, and DNP PTO1 SERIES. The 200 Series Interchange Coupler (Nordic-type) combines advanced safety and reliable sealing for demanding hydraulic applications. Its protective safety sleeve prevents accidental disconnection, while the elastomer-sealed poppet valve ensures leak-free performance when disconnected. The series offers dual poppet options—standard and pressure-eliminator variants—to meet diverse system requirements. Designed for flexible operation, these couplers allow connection under residual pressure (male or female side), provided the counterpart is pressure-free, ensuring safe and efficient maintenance in industrial environments. 100 is the standard version, 200 is the connection under pressure version. 202 is the version without any internal valve, so free flow.
Interchange
- CEJN 525 SERIES
- STUCCHI IRC SERIES
- TEMA T SERIES
- DNP PTK1 SERIES
- DNP PTO1 SERIES
- DIXON TR SERIES

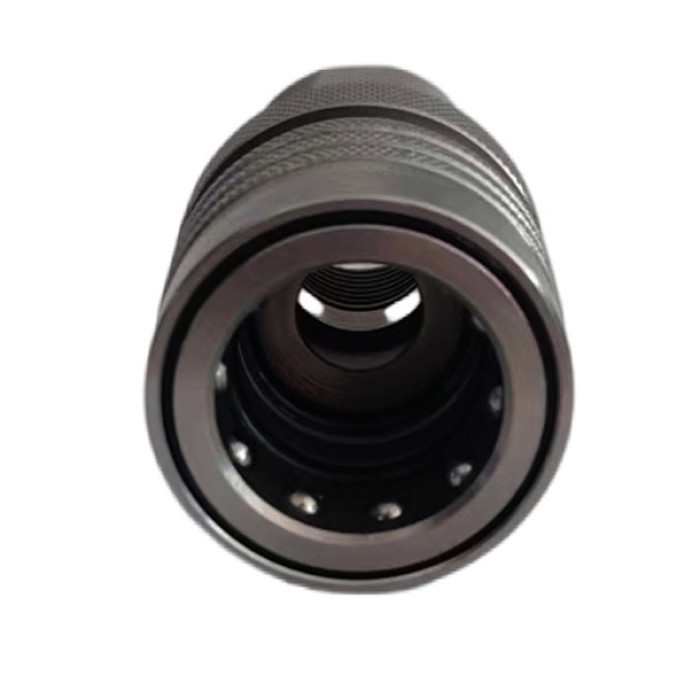

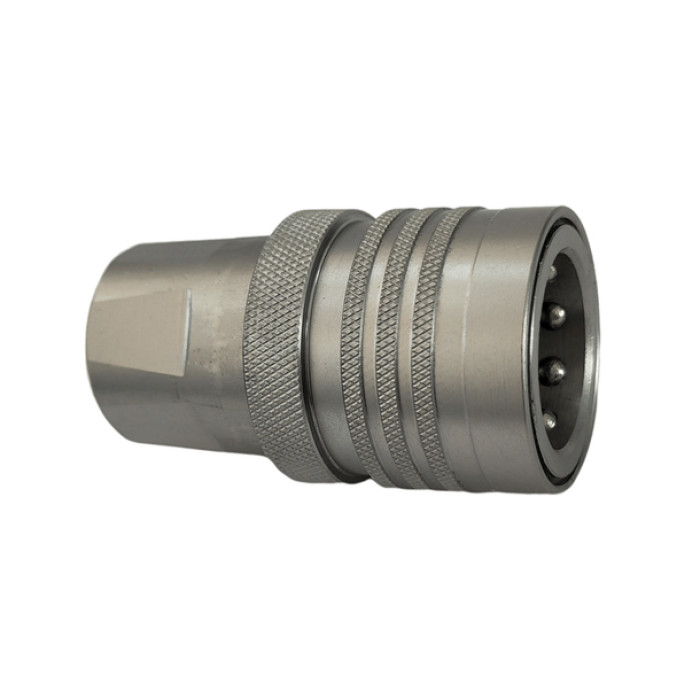

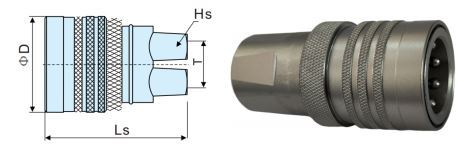

Female Coupler
Female Coupler
| 200 Series, Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC20038-3/8″ | 3/8” | 62 | 34 | S24 | 3/8″BSPP |
| HFSFC20012-1/2″ | 1/2” | 68 | 40 | S30 | 1/2″ BSPP |
| HFSFC20034-3/4″ | 3/4” | 79 | 52 | S38 | 3/4″ BSPP |
| HFSFC20010-1″ | 1” | 92 | 62 | S45 | 1″ BSPP |
| 202 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC20238-3/8″ | 3/8” | 62 | 34 | S24 | 3/8″BSPP |
| HFSFC20212-1/2″ | 1/2” | 68 | 40 | S30 | 1/2″ BSPP |
| HFSFC20234-3/4″ | 3/4” | 79 | 52 | S38 | 3/4″ BSPP |
| HFSFC20210-1″ | 1” | 92 | 62 | S45 | 1″ BSPP |

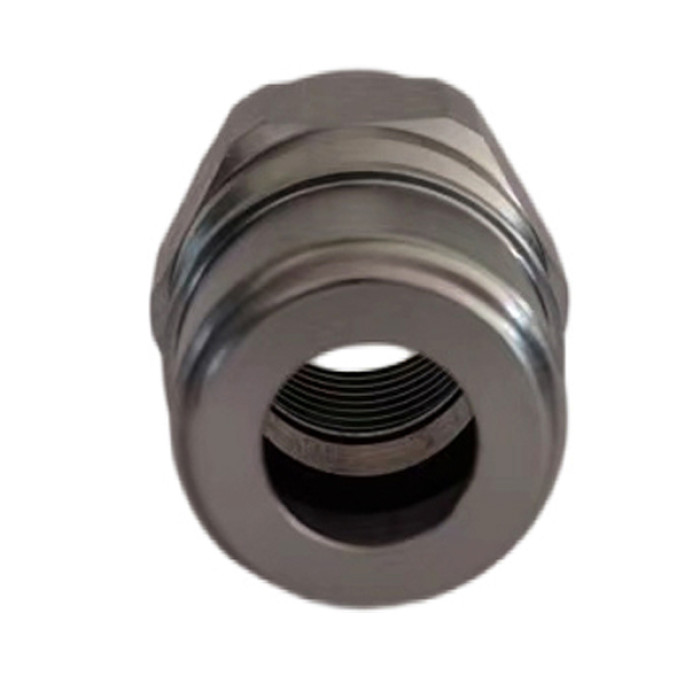

Male Coupler
Male Coupler
| 200 Series, Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP20038-3/8″ | 3/8” | 39 | S22 | 3/8″BSPP |
| HFSFP20012-1/2″ | 1/2” | 43 | S27 | 1/2″ BSPP |
| HFSFP20034-3/4″ | 3/4” | 50 | S36 | 3/4″ BSPP |
| HFSFP20010-1″ | 1” | 56.5 | S45 | 1″ BSPP |
| 202 Series (Unvalved), Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP20238-3/8″ | 3/8” | 39 | S22 | 3/8″BSPP |
| HFSFP20212-1/2″ | 1/2” | 43 | S27 | 1/2″ BSPP |
| HFSFP20234-3/4″ | 3/4” | 50 | S36 | 3/4″ BSPP |
| HFSFP20210-1″ | 1” | 56.5 | S45 | 1″ BSPP |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 06 | 3/8” | 350 | 350 | 350 | 1300 | 1300 | 1300 | 0.02 |
| 08 | 1/2” | 300 | 300 | 300 | 1100 | 1100 | 1100 | 0.03 |
| 12 | 3/4” | 280 | 280 | 280 | 1000 | 1000 | 1000 | 0.06 |
| 16 | 1” | 250 | 250 | 250 | 930 | 930 | 930 | 0.1 |
| Material: | Steel, Brass | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | CEJN 525 SERIESSTUCCHI IRC SERIESTEMA T SERIESDIXON TR SERIESDNP PTK1 SERIESDNP PTO1 SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Allowed Residual | |
