EH 29 Series | RECTUS Style Pneumatic Quick Coupling, Instant Air Couplings, Adaptors, Swivel Adaptors (Steel)
Pneumatic Quick Coupling, Instant Air Couplings, Adaptors, Swivel Adaptors (Steel). This coupling system has a safety lock. To disconnect, the plug must first be twisted out from the coupling before it can be unlocked. This prevents unintentional disconnection.

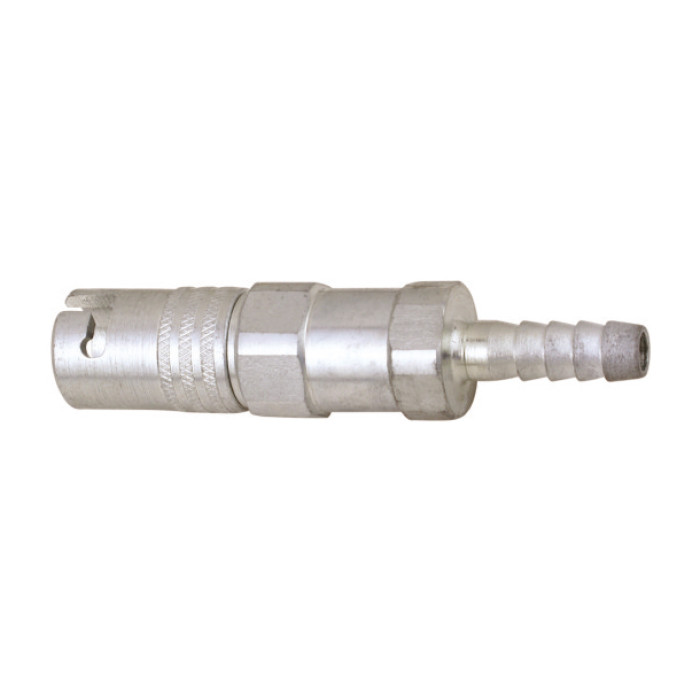

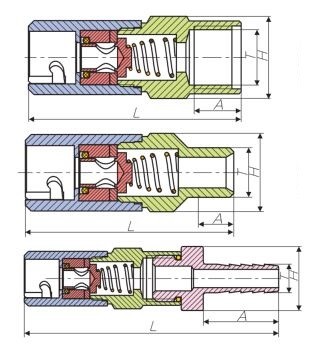

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Size | L(mm) | A(mm) | H(mm) | T |
| PFSFC2914 | 1/4” | 04SF | 57 | 11 | S19 | 1/4″BSPP |
| PFSFC2938 | 3/8” | 06SF | 57 | 12 | S21 | 3/8″BSPP |
| PFSMC2914 | 1/4” | 04SM | 57 | 11 | S19 | 1/4″BSPT |
| PFSMC2938 | 3/8” | 06SM | 57 | 12 | S19 | 3/8″BSPT |
| PFSHC2914 | 1/4” | 04SH | 91 | 25 | S21 | 1/4H |
| PFSHC29516 | / | 05SH | 95 | 29 | S21 | 5/16H |
| PFSHC2938 | 3/8” | 06SH | 95 | 29 | S21 | 3/8H |

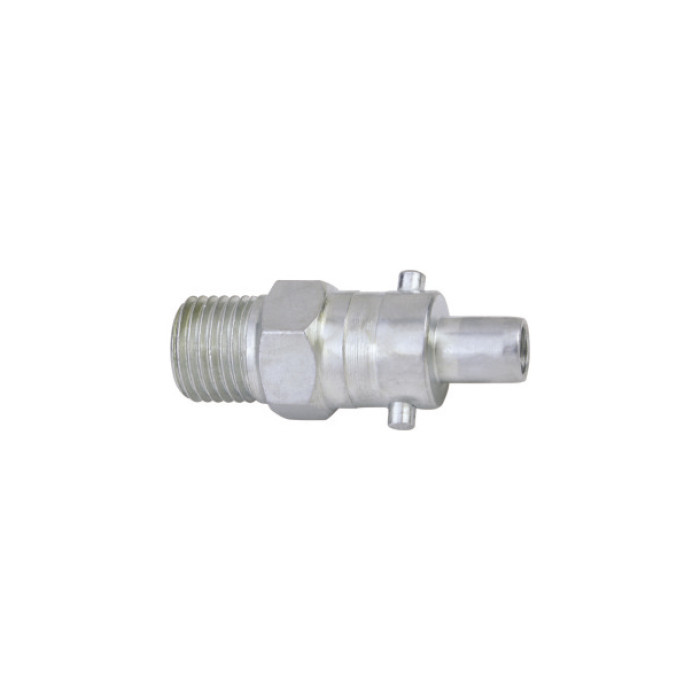

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Size | L(mm) | A(mm) | H(mm) | T |
| PFSFP2914 | 1/4” | 04PF | 41.5 | 11 | S19 | 1/4″BSPP |
| PFSFP2938 | 3/8” | 06PF | 42.5 | 12 | S21 | 3/8″BSPP |
| PFSMP2914 | 1/4” | 04PM | 41.5 | 11 | S15.2 | 1/4″BSPT |
| PFSMP2938 | 3/8” | 06PM | 42.5 | 12 | S19 | 3/8″BSPT |
| PFSHP2914 | 1/4” | 04PH | 75 | 25 | S21 | 1/4H |
| PFSHP29516 | / | 05PH | 79 | 29 | S21 | 5/16H |
| PFSHP2938 | 3/8” | 06PH | 79 | 29 | S21 | 3/8H |

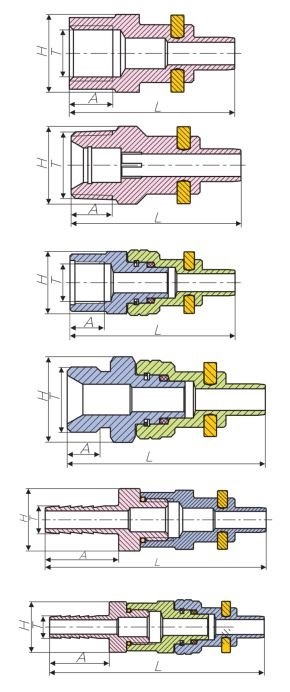

| Art. No. | Body Size (inch) | Size | L(mm) | A(mm) | H(mm) | T |
| PFSFSP2914 | 1/4” | 04SPF | 51.3 | 11 | S19 | 1/4″BSPP |
| PFSFSP2938 | 3/8” | 06SPF | 52.3 | 12 | S21 | 3/8″BSPP |
| PFSMSP2914 | 1/4” | 04SPM | 46.8 | 6.5 | S15 | 1/4″BSPP |
| PFSMSP2938 | 3/8” | 06SPM | 48.8 | 8.5 | S19 | 3/8″BSPP |
| PFSHSP2914 | 1/4” | 04SPH | 83.8 | 25 | S21 | 1/4H |
| PFSHSP29516 | / | 05SPH | 89.3 | 29 | S21 | 5/16H |
| PFSHSP2938 | 3/8” | 06SPH | 89.3 | 29 | S21 | 3/8H |
Technical Specifications
Technical Specifications
| Max. Work Pressure (Psi) |
| 250 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Series Interchange: | / |
| Valve Type: | / | |
| Connection: | Twist To Lock | |
| Disconnection: | Twist To Unlock | |
| Connection Under Pressure: | Not Allowed | |
