EH 51 Series – FST High Flow, Unvalved, Hydraulic Quick Couplings (Brass, Steel, Stainless Steel)
This EH series is interchangeable with HANSEN ST SERIES, PARKER SST SERIES, PARKER BST SERIES, DIXON E SERIES, and FOSTER FST SERIES. This series is all unvalved (no internal valve), and it is used in applications where maximum flow is required. Ideal for high-pressure water and steam washers, carpet cleaners, and mold coolant lines applications.
Interchange
- HANSEN ST SERIES
- DIXON E SERIES
- PARKER SST SERIES
- FOSTER FST SERIES
- PARKER BST SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 51 Series – FST High Flow, Unvalved, Hydraulic Quick Couplings (Brass, Steel, Stainless Steel)
This EH series is interchangeable with HANSEN ST SERIES, PARKER SST SERIES, PARKER BST SERIES, DIXON E SERIES, and FOSTER FST SERIES. This series is all unvalved (no internal valve), and it is used in applications where maximum flow is required. Ideal for high-pressure water and steam washers, carpet cleaners, and mold coolant lines applications.
Interchange
- HANSEN ST SERIES
- DIXON E SERIES
- PARKER SST SERIES
- FOSTER FST SERIES
- PARKER BST SERIES
Call Tawk.to
contact@ehhydraulics.com

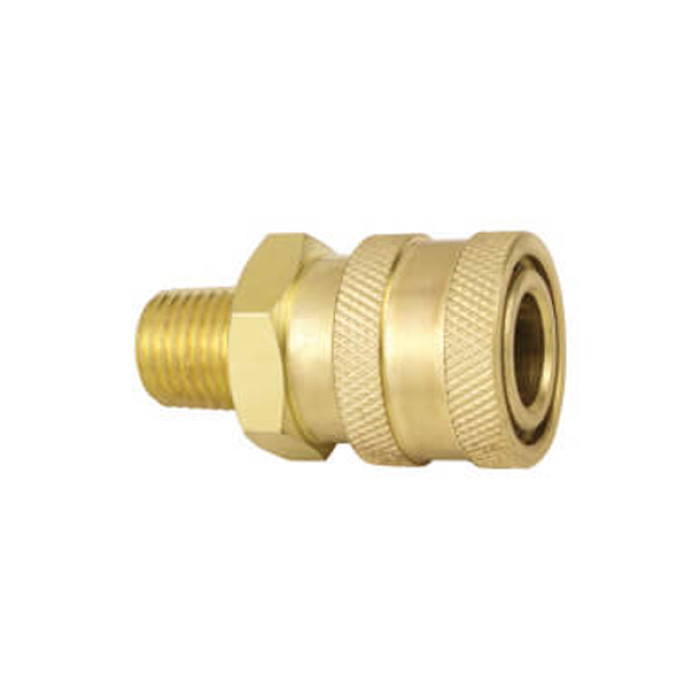

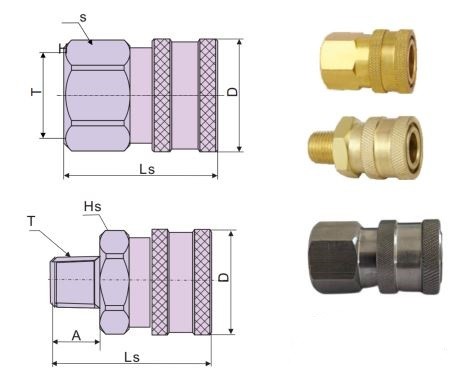

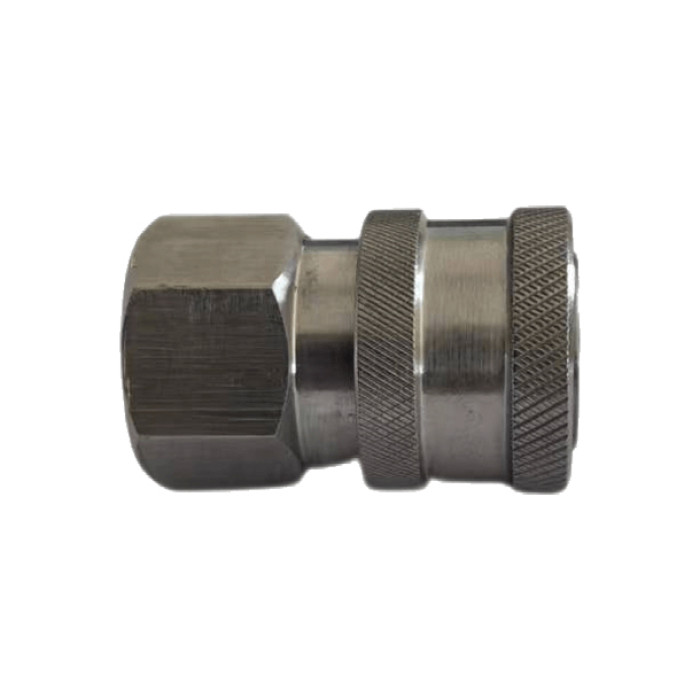

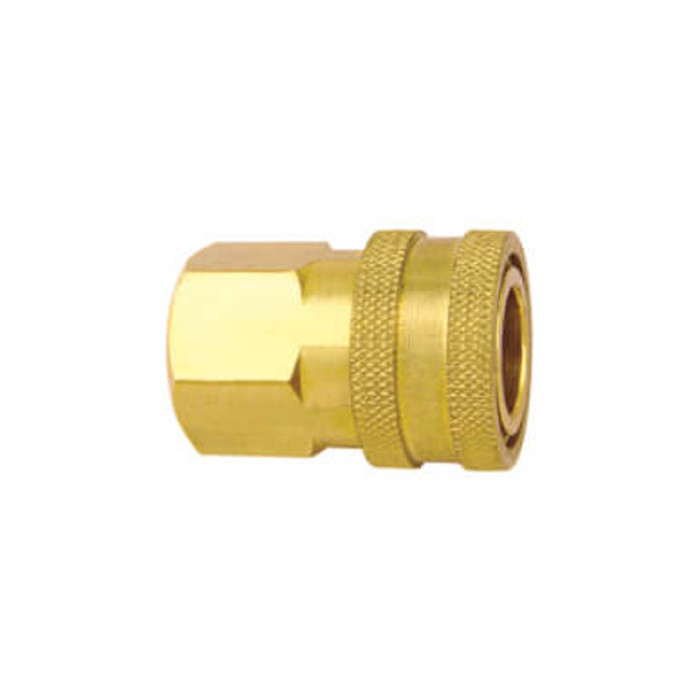

Female Coupler
Female Coupler
| Brass (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | A(mm) | T |
| PFBFC5114-1/4″ | 1/4” | 37.5 | 25 | S22.3 | 12 | 1/4″NPT |
| PFBFC5138-3/8″ | 3/8” | 39.5 | 28.5 | S25.4 | 14 | 3/8″NPT |
| PFBFC5112-1/2″ | 1/2” | 54.1 | 34.5 | S30.2 | 16 | 1/2″NPT |
| PFBFC5134-3/4″ | 3/4” | 62.7 | 42.4 | S38.1 | 20 | 3/4″NPT |
| PFBFC5110-1″ | 1” | 68.6 | 52.3 | S47.6 | 25.5 | 1″NPT |
| PFBMC5114-1/4″ | 1/4” | 43 | 25 | S22.3 | 12 | 1/4″NPT |
| PFBMC5138-3/8″ | 3/8” | 45 | 28.5 | S25.4 | 14 | 3/8″NPT |
| PFBMC5112-1/2″ | 1/2” | 54.1 | 34.5 | S30.2 | 16 | 1/2″NPT |
| PFBMC5134-3/4″ | 3/4” | 62.7 | 42.4 | S38.1 | 20 | 3/4″NPT |
| PFBMC5110-1″ | 1” | 68.6 | 52.3 | S47.6 | 25.5 | 1″NPT |
| Stainless 316 (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | A(mm) | T |
| PFSSFC5114-1/4″ | 1/4” | 37.5 | 25 | S22.3 | 12 | 1/4″NPT |
| PFSSFC5138-3/8″ | 3/8” | 39.5 | 28.5 | S25.4 | 14 | 3/8″NPT |
| PFSSFC5112-1/2″ | 1/2” | 54.1 | 34.5 | S30.2 | 16 | 1/2″NPT |
| PFSSFC5134-3/4″ | 3/4” | 62.7 | 42.4 | S38.1 | 20 | 3/4″NPT |
| PFSSFC5110-1″ | 1” | 68.6 | 52.3 | S47.6 | 25.5 | 1″NPT |
| PFSSMC5114-1/4″ | 1/4” | 43 | 25 | S22.3 | 12 | 1/4″NPT |
| PFSSMC5138-3/8″ | 3/8” | 45 | 28.5 | S25.4 | 14 | 3/8″NPT |
| PFSSMC5112-1/2″ | 1/2” | 54.1 | 34.5 | S30.2 | 16 | 1/2″NPT |
| PFSSMC5134-3/4″ | 3/4” | 62.7 | 42.4 | S38.1 | 20 | 3/4″NPT |
| PFSSMC5110-1″ | 1” | 68.6 | 52.3 | S47.6 | 25.5 | 1″NPT |

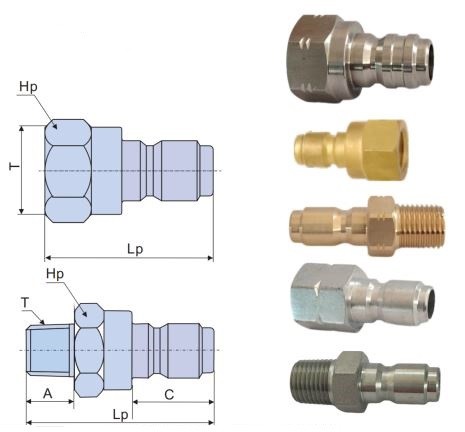

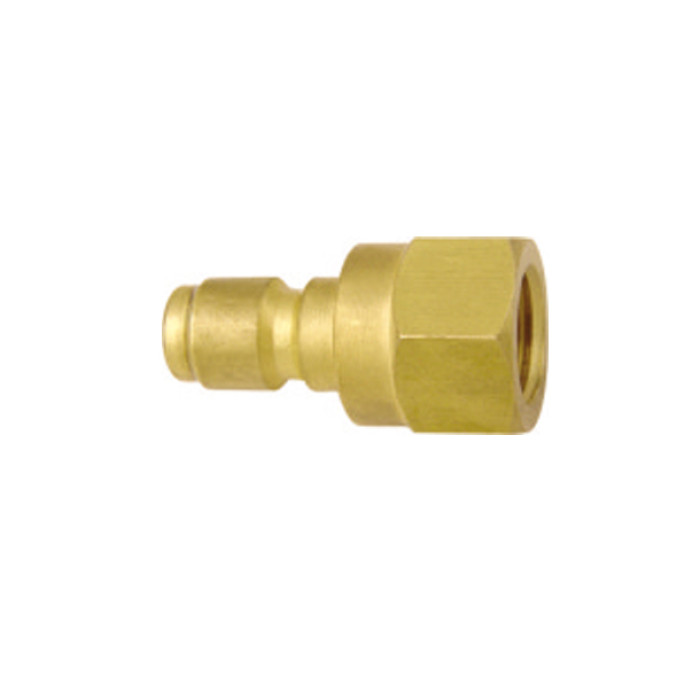

Male Plug
Male Plug
| Brass (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | C(mm) | Hp(mm) | A(mm) | T |
| PFBFP5114-1/4″ | 1/4” | 37 | 19.5 | S19 | 12 | 1/4″NPT |
| PFBFP5138-3/8″ | 3/8” | 40.5 | 22.5 | S22.5 | 14 | 3/8″NPT |
| PFBFP5112-1/2″ | 1/2” | 50.5 | 33.3 | S30.2 | 16 | 1/2″NPT |
| PFBFP5134-3/4″ | 3/4” | 58.7 | 41.9 | S38.1 | 20 | 3/4″NPT |
| PFBFP5110-1″ | 1” | 66 | 52.3 | S47.6 | 25.5 | 1″NPT |
| PFBMP5114-1/4″ | 1/4” | 43 | 19.5 | S19 | 12 | 1/4″NPT |
| PFBMP5138-3/8″ | 3/8” | 46.5 | 22.5 | S22.5 | 14 | 3/8″NPT |
| PFBMP5112-1/2″ | 1/2” | 50.5 | 33.3 | S30.2 | 16 | 1/2″NPT |
| PFBMP5134-3/4″ | 3/4” | 58.7 | 41.9 | S38.1 | 20 | 3/4″NPT |
| PFBMP5110-1″ | 1” | 66 | 52.3 | S47.6 | 25.5 | 1″NPT |
| Steel (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | C(mm) | Hp(mm) | A(mm) | T |
| PFSFP5114-1/4″ | 1/4” | 37 | 19.5 | S19 | 12 | 1/4″NPT |
| PFSFP5138-3/8″ | 3/8” | 40.5 | 22.5 | S22.5 | 14 | 3/8″NPT |
| PFSFP5112-1/2″ | 1/2” | 50.5 | 33.3 | S30.2 | 16 | 1/2″NPT |
| PFSFP5134-3/4″ | 3/4” | 58.7 | 41.9 | S38.1 | 20 | 3/4″NPT |
| PFSFP5110-1″ | 1” | 66 | 52.3 | S47.6 | 25.5 | 1″NPT |
| PFSMP5114-1/4″ | 1/4” | 43 | 19.5 | S19 | 12 | 1/4″NPT |
| PFSMP5138-3/8″ | 3/8” | 46.5 | 22.5 | S22.5 | 14 | 3/8″NPT |
| PFSMP5112-1/2″ | 1/2” | 50.5 | 33.3 | S30.2 | 16 | 1/2″NPT |
| PFSMP5134-3/4″ | 3/4” | 58.7 | 41.9 | S38.1 | 20 | 3/4″NPT |
| PFSMP5110-1″ | 1” | 66 | 52.3 | S47.6 | 25.5 | 1″NPT |
| Stainless 316 (Material), Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | C(mm) | Hp(mm) | A(mm) | T |
| PFSSFP5114-1/4″ | 1/4” | 37 | 19.5 | S19 | 12 | 1/4″NPT |
| PFSSFP5138-3/8″ | 3/8” | 40.5 | 22.5 | S22.5 | 14 | 3/8″NPT |
| PFSSFP5112-1/2″ | 1/2” | 50.5 | 33.3 | S30.2 | 16 | 1/2″NPT |
| PFSSFP5134-3/4″ | 3/4” | 58.7 | 41.9 | S38.1 | 20 | 3/4″NPT |
| PFSSFP5110-1″ | 1” | 66 | 52.3 | S47.6 | 25.5 | 1″NPT |
| PFSSMP5114-1/4″ | 1/4” | 43 | 19.5 | S19 | 12 | 1/4″NPT |
| PFSSMP5138-3/8″ | 3/8” | 46.5 | 22.5 | S22.5 | 14 | 3/8″NPT |
| PFSSMP5112-1/2″ | 1/2” | 50.5 | 33.3 | S30.2 | 16 | 1/2″NPT |
| PFSSMP5134-3/4″ | 3/4” | 58.7 | 41.9 | S38.1 | 20 | 3/4″NPT |
| PFSSMP5110-1″ | 1” | 66 | 52.3 | S47.6 | 25.5 | 1″NPT |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureBrass Coupler+Steel Plug(bar) | Max.WorkPressureBrassCoupler+BrassPlug(bar) | Max.WorkPressureBrassCoupler+StainlessPlug(bar) | Max.WorkPressureStainlessCoupler+StainlessPlug(bar) | Min. BurstPressureBrass Coupler+Steel Plug(bar) | Min. BurstPressureBrassCoupler+BrassPlug(bar) | Min. BurstPressureBrassCoupler+StainlessPlug(bar) | Min. BurstPressureStainlessCoupler+StainlessPlug(bar) |
| 04 | 1/4” | 379 | 262 | 379 | 517 | 1517 | 1055 | 1621 | 2331 |
| 06 | 3/8” | 310 | 207 | 310 | 517 | 1262 | 972 | 1462 | 2372 |
| 08 | 1/2” | 241 | 166 | 241 | 241 | 960 | 669 | 966 | 966 |
| 12 | 3/4” | 207 | 138 | 172 | 207 | 870 | 600 | 862 | 1338 |
| 16 | 1” | 172 | 110 | 138 | 138 | 697 | 462 | 607 | 628 |
| Material: | Carbon Steel, Stainless 316, Brass | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | HANSEN ST SERIESPARKER SST SERIESPARKER BST SERIES DIXON E SERIESFOSTER FST SERIES |
| Valve Type: | None | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

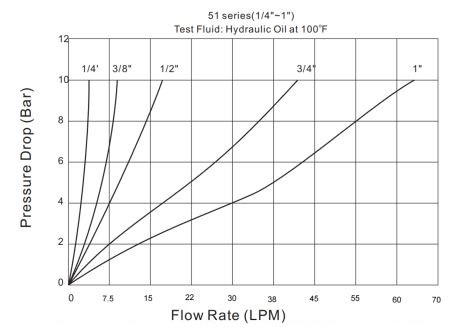

Pressure Drop
Pressure Drop
