EH 80 Series – ISO 7241-B Quick Couplings Free Flow (Stainless Steel)
This EH series is interchangeable with DNP PBOX SERIES. As the free-flow version of the 83 series, 80 couplings feature an open-passage design with no internal valves, ensuring higher flow efficiency and reduced pressure loss. ISO 7241 part B interchange.
EH 80 Series – ISO 7241-B Quick Couplings Free Flow (Stainless Steel)
This EH series is interchangeable with DNP PBOX SERIES. As the free-flow version of the 83 series, 80 couplings feature an open-passage design with no internal valves, ensuring higher flow efficiency and reduced pressure loss. ISO 7241 part B interchange.
Interchange
- DNP PBOX SERIES
- FASTER FHV SERIES
- DIXON VEP SERIES
Call Tawk.to
contact@ehhydraulics.com

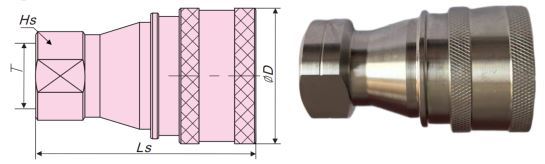

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSSFC8014-1/4″ | 1/4” | 58 | 28 | S17 | 1/4″NPT(BSPP) |
| HFSSFC8038-3/8″ | 3/8” | 65 | 35 | S21 | 3/8″NPT(BSPP) |
| HFSSFC8012-1/2″ | 1/2” | 72 | 44.5 | S29 | 1/2″NPT(BSPP) |
| HFSSFC8034-3/4″ | 3/4” | 88 | 55 | S35 | 3/4″NPT(BSPP) |
| HFSSFC8010-1″ | 1” | 102 | 65 | S41 | 1″NPT(BSPP) |
Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFP8014-1/4″ | 1/4” | 36.5 | S17 | 1/4″NPT(BSPP) |
| HFSSFP8038-3/8″ | 3/8” | 40 | S21 | 3/8″NPT(BSPP) |
| HFSSFP8012-1/2″ | 1/2” | 44 | S29 | 1/2″NPT(BSPP) |
| HFSSFP8034-3/4″ | 3/4” | 52 | S35 | 3/4″NPT(BSPP) |
| HFSSFP8010-1″ | 1” | 62 | S42 | 1″NPT(BSPP) |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0 |
| 06 | 3/8” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0 |
| 08 | 1/2” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0 |
| 12 | 3/4” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 0 |
| 16 | 1” | 200 | 200 | 200 | 800 | 800 | 800 | 0 |
| Material: | Stainless Steel | |
| Seals: | NBR, FKM, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, -20 °C to 200 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | DNP PBOX SERIES |
| Valve Type: | None | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

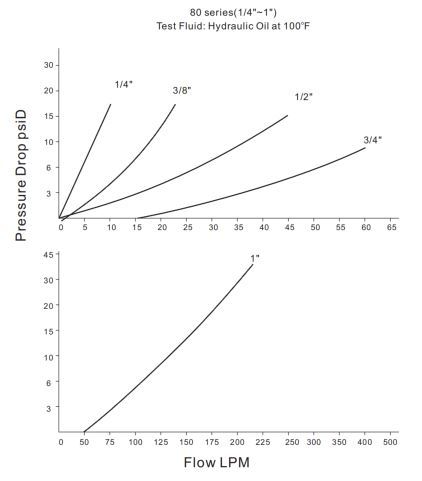

Pressure Drop
Pressure Drop
