EH 83 Series – ISO 7241-B Quick Couplings (Stainless Steel)
This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV STAINLESS STEEL SERIES, DNP PBVX SERIES, STUCCHI IRBX SERIES, HANSEN HK SERIES, SAFEWAY SS10 SERIES, VOSWINKEL IB-VA SERIES, and GROMELLE 635-Z SERIES. Standard couplings for industrial applications with stainless steel components (AISI 316). ISO 7241 part B interchange.
Interchange
- GROMELLE 635-A SERIESPARKER 60 SERIES
- DIXON H SERIES
- EATON AEROQUIP FD45 SERIES
- GROMELLE 635-A SERIES
- FASTER HNV SERIES
- DNP PBV1 SERIES
- SAFEWAY S10 SERIES
- STUCCHI IRB SERIES
- HANSEN HK SERIES
- VOSWINKEL IB SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 83 Series – ISO 7241-B Quick Couplings (Stainless Steel)
This EH series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV STAINLESS STEEL SERIES, DNP PBVX SERIES, STUCCHI IRBX SERIES, HANSEN HK SERIES, SAFEWAY SS10 SERIES, VOSWINKEL IB-VA SERIES, and GROMELLE 635-Z SERIES. Standard couplings for industrial applications with stainless steel components (AISI 316). ISO 7241 part B interchange.
Interchange
- PARKER 60 SERIES
- DIXON H SERIES
- EATON AEROQUIP FD45 SERIES
- FASTER HNV SERIES
- DNP PBV1 SERIES
- GROMELLE 635-A SERIES
- STUCCHI IRB SERIES
- HANSEN HK SERIES
- SAFEWAY S10 SERIES
- VOSWINKEL IB SERIES
Call Tawk.to
contact@ehhydraulics.com

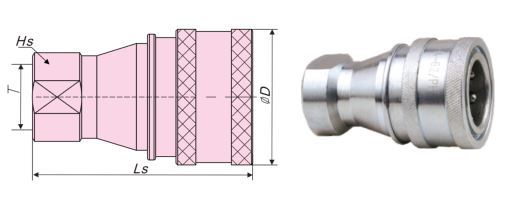

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC8218-1/8″ | 1/8” | 48 | 24 | S14 | 1/8″NPT(BSPP) |
| HFSFC8214-1/4″ | 1/4” | 58 | 28 | S19 | 1/4″NPT(BSPP) |
| HFSFC8238-3/8″ | 3/8” | 65 | 35 | S21 | 3/8″NPT(BSPP) |
| HFSFC8212-1/2″ | 1/2” | 72 | 44.5 | S29 | 1/2″NPT(BSPP) |
| HFSFC8234-3/4″ | 3/4” | 88 | 55 | S35 | 3/4″NPT(BSPP) |
| HFSFC8210-1″ | 1” | 102 | 65 | S41 | 1″NPT(BSPP) |
| HFSFC82112-1-1/2″ | 1-1/2” | 124 | 79 | S63 | 1-1/2″NPT(BSPP) |
| HFSFC8220-2″ | 2” | 132 | 109 | S77 | 2″NPT(BSPP) |

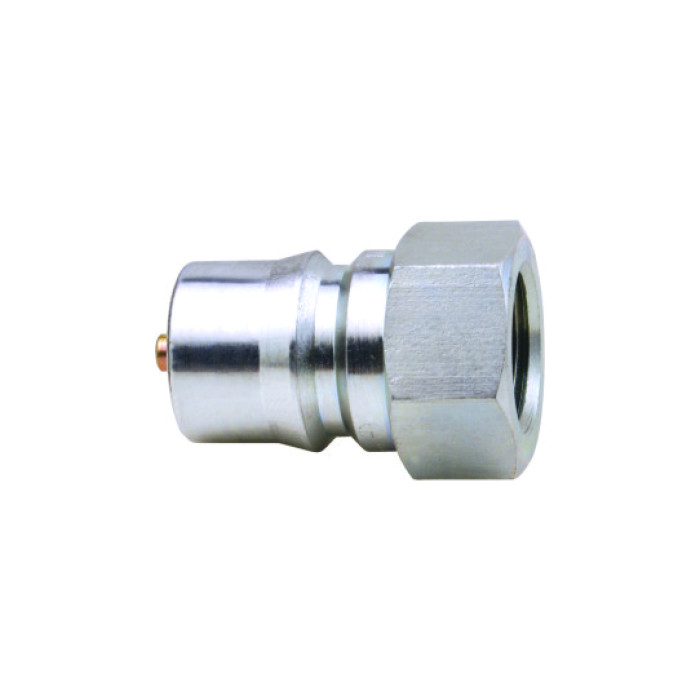

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP8218-1/8″ | 1/8” | 30 | S14 | 1/8″NPT(BSPP) |
| HFSFP8214-1/4″ | 1/4” | 36.5 | S17 | 1/4″NPT(BSPP) |
| HFSFP8238-3/8″ | 3/8” | 40 | S21 | 3/8″NPT(BSPP) |
| HFSFP8212-1/2″ | 1/2” | 44 | S29 | 1/2″NPT(BSPP) |
| HFSFP8234-3/4″ | 3/4” | 52.5 | S35 | 3/4″NPT(BSPP) |
| HFSFP8210-1″ | 1” | 62 | S42 | 1″NPT(BSPP) |
| HFSFP82112-1-1/2″ | 1-1/2” | 75 | S63 | 1-1/2″NPT(BSPP) |
| HFSFP8220-2″ | 2” | 80 | S77 | 2″NPT(BSPP) |
Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO-B-1/4-P-P | ISO-B-1/4-C-P | PVC |
| 06 | 10 | ISO-B-3/8-P-P | ISO-B-3/8-C-P | PVC |
| 08 | 12.5 | ISO-B-1/2-P-P | ISO-B-1/2-C-P | PVC |
| 12 | 20 | ISO-B-3/4-P-P | ISO-B-3/4-C-P | PVC |
| 16 | 25 | ISO-B-1-P-P | ISO-B-1-C-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 02 | 1/8” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0.5 |
| 04 | 1/4” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 1 |
| 06 | 3/8” | 315 | 315 | 315 | 1260 | 1260 | 1260 | 1.5 |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 2.8 |
| 12 | 3/4” | 230 | 230 | 230 | 920 | 920 | 920 | 10 |
| 16 | 1” | 200 | 200 | 200 | 800 | 800 | 800 | 13 |
| 24 | 1-1/2” | 80 | 80 | 80 | 320 | 320 | 320 | 80 |
| 32 | 2” | 60 | 60 | 60 | 240 | 240 | 240 | 160 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | HANSEN HK SERIESPARKER 60 SERIESSAFEWAY S10 SERIESEATON AEROQUIP FD45 SERIESVOSWINKEL IB SERIESFASTER HNV SERIESSTUCCHI IRB SERIESDNP PBV1 SERIESGROMELLE 635-A SERIESDIXON H SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

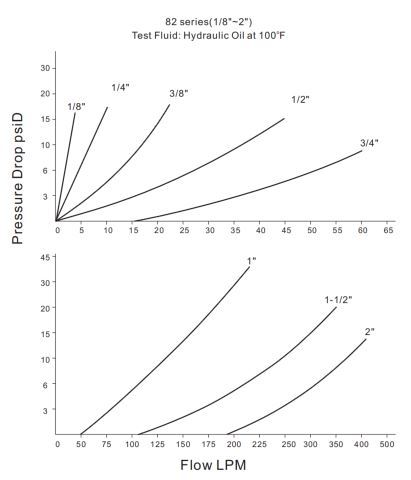

Pressure Drop
Pressure Drop
