EH 93 Series – FL ISO 16028 Flat Face Quick Coupling (Stainless Steel)
This EH series is interchangeable with STUCCHI FL SERIES, CEJN X66 SERIES, PARKER FS SERIES, VOSWINKEL FH-VA SERIES, GROMELLE 629-Z SERIES, FASTER 2FFI Stainless Steel SERIES, DNP PLTX SERIES, and DIXON HT SERIES. Flat face couplings, with stainless steel (AISI 316) components and seals in Viton. High corrosion resistance. ISO 16028 interchange.
Interchange
- STUCCHI FL SERIES
- VOSWINKEL FH-VA SERIES
- DNP PLTX SERIES
- CEJN X66 SERIES
- GROMELLE 629-Z SERIES
- DIXON HT SERIES
- PARKER FS SERIES
- FASTER 2FFI Stainless Steel SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 93 Series – FL ISO 16028 Flat Face Quick Coupling (Stainless Steel)
This EH series is interchangeable with STUCCHI FL SERIES, CEJN X66 SERIES, PARKER FS SERIES, VOSWINKEL FH-VA SERIES, GROMELLE 629-Z SERIES, FASTER 2FFI Stainless Steel SERIES, DNP PLTX SERIES, and DIXON HT SERIES. Flat face couplings, with stainless steel (AISI 316) components and seals in Viton. High corrosion resistance. ISO 16028 interchange.
Interchange
- STUCCHI FL SERIES
- VOSWINKEL FH-VA SERIES
- DNP PLTX SERIES
- CEJN X66 SERIES
- GROMELLE 629-Z SERIES
- DIXON HT SERIES
- PARKER FS SERIES
- FASTER 2FFI Stainless Steel SERIES
Call Tawk.to
contact@ehhydraulics.com

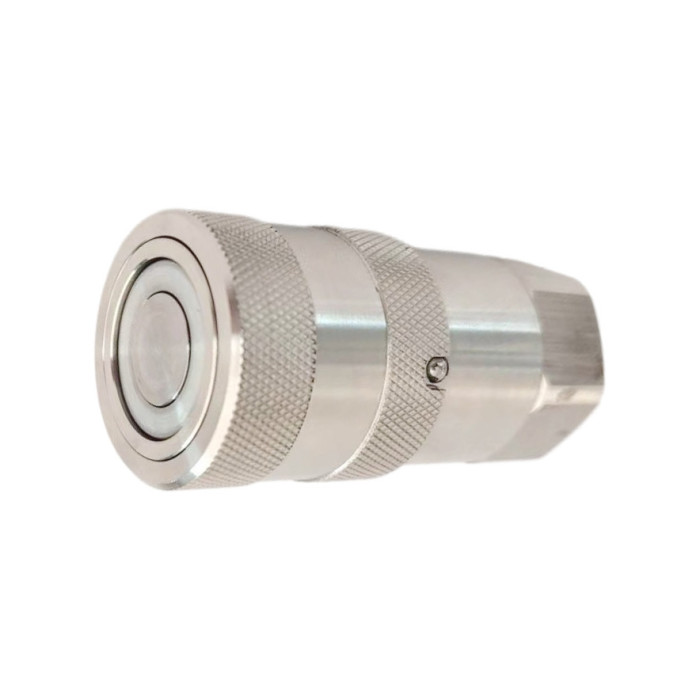

Female Coupler

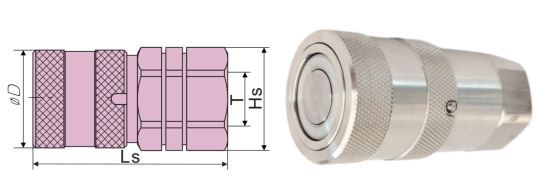

Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSSFC9314-1/4″NPT | 1/4” | 53 | 28 | S27 | 1/4″ NPT |
| HFSSFC9314-1/4″G | 1/4” | 53 | 28 | S27 | 1/4″ BSPP |
| HFSSFC9338-3/8″NPT | 3/8” | 69 | 32 | S30 | 3/8″NPT |
| HFSSFC9338-3/8″G | 3/8” | 69 | 32 | S30 | 3/8″BSPP |
| HFSSFC9312-1/2″NPT | 1/2” | 77.5 | 38 | S36 | 1/2″ NPT |
| HFSSFC9312-1/2″G | 1/2” | 77.5 | 38 | S36 | 1/2″ BSPP |
| HFSSFC9312-3/4″G | 1/2” | 84 | 38 | S36 | 3/4″ BSPP |
| HFSSFC9312-7/8″UNF | 1/2” | 80 | 38 | S36 | 7/8″UNF-14 |
| HFSSFC9358-3/4″NPT | 5/8” | 87 | 42 | S41 | 3/4″ NPT |
| HFSSFC9334-3/4″NPT | 3/4” | 95.8 | 48 | S46 | 3/4″ NPT |
| HFSSFC9334-3/4″G | 3/4” | 95.8 | 48 | S46 | 3/4″ BSPP |
| HFSSFC9310-1″NPT | 1” | 104.5 | 56.5 | S55 | 1″ NPT |
| HFSSFC9310 1″G | 1” | 104.5 | 56.5 | S55 | 1″ BSPP |
Male Plug

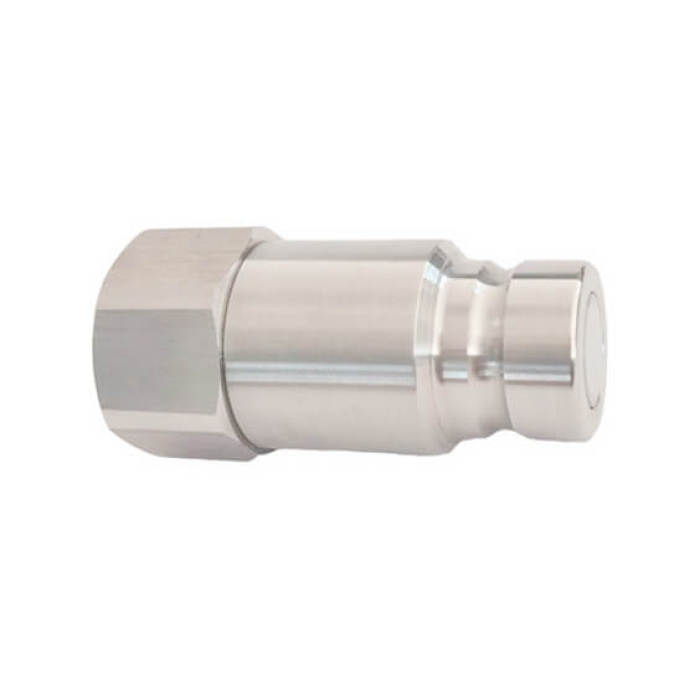

Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSSFP9314-1/4″NPT | 1/4” | 50 | S22 | 1/4″ NPT |
| HFSSFP9314-1/4″G | 1/4” | 50 | S22 | 1/4″ BSPP |
| HFSSFP9338-3/8″NPT | 3/8” | 60 | S27 | 3/8″NPT |
| HFSSFP9338-3/8″G | 3/8” | 60 | S27 | 3/8″BSPP |
| HFSSFP9312-1/2″NPT | 1/2” | 68 | S36 | 1/2″ NPT |
| HFSSFP9312-1/2″G | 1/2” | 68 | S36 | 1/2″ BSPP |
| HFSSFP9312-3/4″G | 1/2” | 70.5 | S36 | 3/4″ BSPP |
| HFSSFP9312-7/8″UNF | 1/2” | 70.5 | S36 | 7/8″UNF-14 |
| HFSSFP9358-3/4″NPT | 5/8” | 73 | S36 | 3/4″ NPT |
| HFSSFP9334-3/4″NPT | 3/4” | 83 | S46 | 3/4″ NPT |
| HFSSFP9334-3/4″G | 3/4” | 83 | S46 | 3/4″ BSPP |
| HFSSFP9310-1″NPT | 1” | 90.5 | S55 | 1″ NPT |
| HFSSFP9310-1″G | 1” | 90.5 | S55 | 1″ BSPP |
Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 04 | 6.3 | ISO16028-6-C-P | ISO16028-6-P-P | PVC |
| 06 | 10 | ISO16028-10-C-P | ISO16028-10-P-P | PVC |
| 08 | 12.5 | ISO16028-12-C-P | ISO16028-12-P-P | PVC |
| 10 | 16 | ISO16028-16-C-P | ISO16028-16-P-P | PVC |
| 12 | 20 | ISO16028-20-C-P | ISO16028-20-P-P | PVC |
| 16 | 25 | ISO16028-25-C-P | ISO16028-25-P-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 0.006 |
| 06 | 3/8” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 0.008 |
| 08 | 1/2” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 0.01 |
| 10 | 5/8” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 0.02 |
| 12 | 3/4” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 0.02 |
| 16 | 1” | 250 | 250 | 250 | 1000 | 1000 | 1000 | 0.03 |
| Material: | Stainless Steel | |
| Seals: | FKM, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -20 °C to 200 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | STUCCHI FL SERIESCEJN X66 SERIESPARKER FS SERIESVOSWINKEL FH-VA SERIESGROMELLE 629-Z SERIESFASTER 2FFI Stainless Steel SERIESDNP PLTX SERIESDIXON HT SERIES |
| Valve Type: | Flat | |
| Connection: | Push To Connect | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

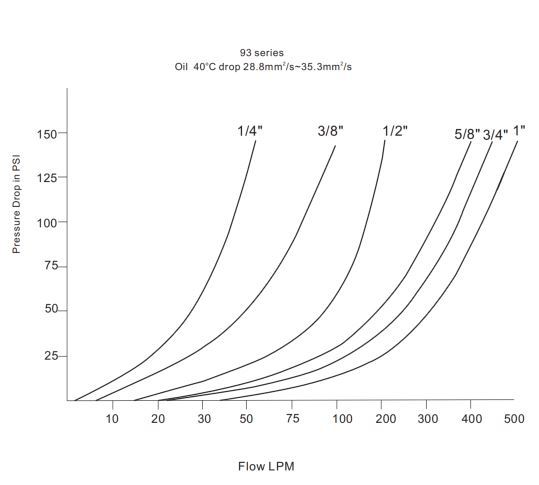

Pressure Drop
Pressure Drop
Application areas
Snubbing Units For Wells Control
Mold & Die Industry
Application areas
Snubbing Units For Wells Control
Mold & Die Industry
