EH 95 Series – FIRG ISO 16028 Flat Face Quick Coupling (Steel)
This EH series is interchangeable with STUCCHI FIRG SERIES, DNP PLT1 SERIES, PARKER FF SERIES, EATON AEROQUIP FD 89 SERIES, DIXON HT SERIES, HANSEN QA29000 SERIES, and SAFEWAY FFE49 SERIES. The 95 Series, renowned as the original ISO 16028-compliant coupling solution, continues to deliver reliable performance, exceptional durability, and competitive value. Its innovative integrated sealing system significantly minimizes premature wear by effectively compensating for three critical stress factors: relative movement between coupling components, sudden pressure impulses, and the constant strain exerted by hose weight during horizontal operation.
Interchange
- STUCCHI FIRG SERIES
- EATON AEROQUIP FD 89 SERIES
- SAFEWAY FFE49 SERIES
- DNP PLT1 SERIES
- DIXON HT SERIES
- PARKER FF SERIES
- HANSEN QA29000 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 95 Series – FIRG ISO 16028 Flat Face Quick Coupling (Steel)
This EH series is interchangeable with STUCCHI FIRG SERIES, DNP PLT1 SERIES, PARKER FF SERIES, EATON AEROQUIP FD 89 SERIES, DIXON HT SERIES, HANSEN QA29000 SERIES, and SAFEWAY FFE49 SERIES. The 95 Series, renowned as the original ISO 16028-compliant coupling solution, continues to deliver reliable performance, exceptional durability, and competitive value. Its innovative integrated sealing system significantly minimizes premature wear by effectively compensating for three critical stress factors: relative movement between coupling components, sudden pressure impulses, and the constant strain exerted by hose weight during horizontal operation.
Interchange
- STUCCHI FIRG SERIES
- EATON AEROQUIP FD 89 SERIES
- SAFEWAY FFE49 SERIES
- DNP PLT1 SERIES
- DIXON HT SERIES
- PARKER FF SERIES
- HANSEN QA29000 SERIES
Call Tawk.to
contact@ehhydraulics.com

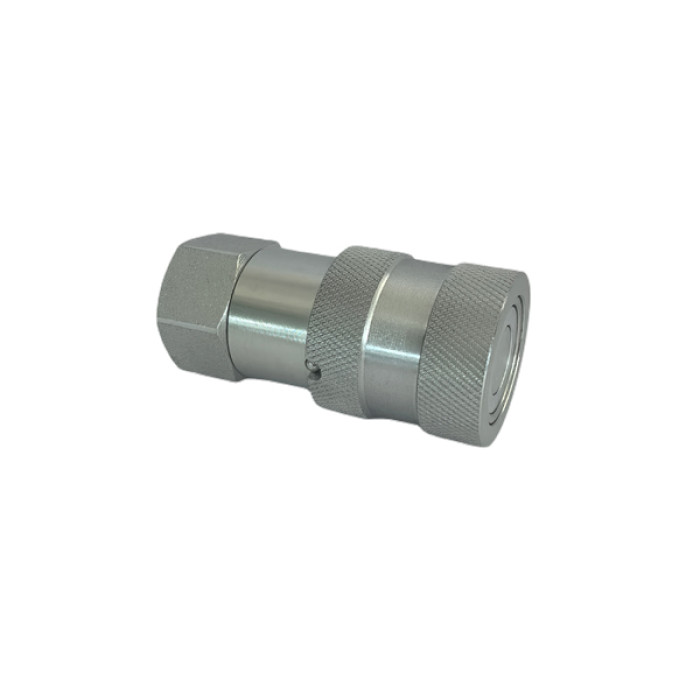

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFC9514-1/4″ NPT | 1/4” | 53 | 28 | S22 | 1/4″ NPT |
| HFSFC9514-1/4″ BSP | 1/4” | 53 | 28 | S22 | 1/4″ BSPP |
| HFSFC9514-7/16″ UNF | 1/4” | 53 | 28 | S22 | 7/16″ UNF-20 |
| HFSFC9538-3/8″ NPT | 3/8” | 64.5 | 32 | S27 | 3/8″ NPT |
| HFSFC9538-1/2″ NPT | 3/8” | 69.5 | 32 | S27 | 1/2″ NPT |
| HFSFC9538-3/8″ BSP | 3/8” | 64.5 | 32 | S27 | 3/8″ BSPP |
| HFSFC9538-1/2″ BSP | 3/8” | 69.5 | 32 | S27 | 1/2″ BSPP |
| HFSFC9538-9/16″ UNF | 3/8” | 69.5 | 32 | S27 | 9/16″ UNF-18 |
| HFSFC9538-3/4″ UNF | 3/8” | 69.5 | 32 | S27 | 3/4″ UNF-16 |
| HFSFC9512-1/2″ NPT | 1/2” | 73.5 | 38 | S32 | 1/2″ NPT |
| HFSFC9512-3/4″ NPT | 1/2” | 79 | 38 | S36 | 3/4″ NPT |
| HFSFC9512-1/2″ BSP | 1/2” | 73.5 | 38 | S32 | 1/2″ BSPP |
| HFSFC9512-3/4″ BSP | 1/2” | 79 | 38 | S36 | 3/4″ BSPP |
| HFSFC9512-3/4″ UNF | 1/2” | 79 | 38 | S36 | 3/4″ UNF-16 |
| HFSFC9512-7/8″ UNF | 1/2” | 79 | 38 | S32 | 7/8″ UNF-14 |
| HFSFC9512-1-1/16″ UN | 1/2” | 80.5 | 38 | S36 | 1-1/16″ UN-12 |
| HFSFC9558-3/4″ NPT | 5/8” | 80.5 | 42 | S36 | 3/4″ NPT |
| HFSFC9534-3/4″ NPT | 3/4” | 93 | 48 | S41 | 3/4″ NPT |
| HFSFC9534-3/4″ BSP | 3/4” | 93 | 48 | S41 | 3/4″ BSPP |
| HFSFC9534-1″ NPT | 3/4” | 93 | 48 | S41 | 1″ NPT |
| HFSFC9534-1″ BSP | 3/4” | 93 | 48 | S41 | 1″ BSPP |
| HFSFC9534-1-1/16″ UN | 3/4” | 93 | 48 | S41 | 1-1/16″ UN-12 |
| HFSFC9534-1-5/16″ UN | 3/4” | 93 | 48 | S41 | 1-5/16″ UN-12 |
| HFSFC9510-1″ NPT | 1” | 93.5 | 56.5 | S46 | 1″ NPT |
| HFSFC9510-1″ BSP | 1” | 93.5 | 56.5 | S46 | 1″ BSPP |
| HFSFC9510-1-1/4″ NPT | 1” | 98 | 56.5 | S55 | 1-1/4″ NPT |
| HFSFC9510-1-1/4″ BSP | 1” | 98 | 56.5 | S55 | 1-1/4″ BSPP |
| HFSFC9510-1-5/16″ UN | 1” | 98 | 56.5 | S55 | 1-5/16″ UN-12 |

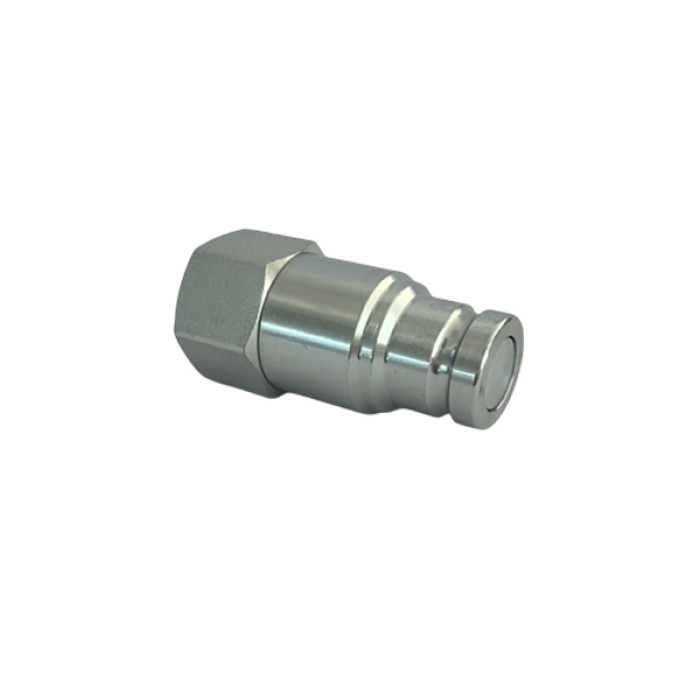

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9514-1/4″ NPT | 1/4” | 50 | S22 | 1/4″ NPT |
| HFSFP9514-1/4″ BSP | 1/4” | 50 | S22 | 1/4″ BSPP |
| HFSFP9514-7/16″ UNF | 1/4” | 50 | S22 | 7/16″ UNF-20 |
| HFSFP9538-3/8″ NPT | 3/8” | 60 | S27 | 3/8″ NPT |
| HFSFP9538-1/2″ NPT | 3/8” | 62 | S27 | 1/2″ NPT |
| HFSFP9538-3/8″ BSP | 3/8” | 60 | S27 | 3/8″ BSPP |
| HFSFP9538-1/2″ BSP | 3/8” | 63 | S27 | 1/2″ BSPP |
| HFSFP9538-9/16″ UNF | 3/8” | 63 | S27 | 9/16″ UNF-18 |
| HFSFP9538-3/4″ UNF | 3/8” | 63 | S27 | 3/4″ UNF-16 |
| HFSFP9512-1/2″ NPT | 1/2” | 68 | S32 | 1/2″ NPT |
| HFSFP9512-3/4″ NPT | 1/2” | 69.5 | S36 | 3/4″ NPT |
| HFSFP9512-1/2″ BSP | 1/2” | 68 | S32 | 1/2″ BSPP |
| HFSFP9512-3/4″ BSP | 1/2” | 69.5 | S36 | 3/4″ BSPP |
| HFSFP9512-3/4″ UNF | 1/2” | 69.5 | S36 | 3/4″ UNF-16 |
| HFSFP9512-7/8″ UNF | 1/2” | 69.5 | S32 | 7/8″ UNF-14 |
| HFSFP9512-1-1/16″ UN | 1/2” | 70.5 | S36 | 1-1/16″ UN-12 |
| HFSFP9558-3/4″ NPT | 5/8” | 70.5 | S36 | 3/4″ NPT |
| HFSFP9534-3/4″ NPT | 3/4” | 82.5 | S41 | 3/4″ NPT |
| HFSFP9534-3/4″ BSP | 3/4” | 82.5 | S41 | 3/4″ BSPP |
| HFSFP9534-1″ NPT | 3/4” | 82.5 | S41 | 1″ NPT |
| HFSFP9534-1″ BSP | 3/4” | 82.5 | S41 | 1″ BSPP |
| HFSFP9534-1-1/16″ UN | 3/4” | 82.5 | S41 | 1-1/16″ UN-12 |
| HFSFP9534-1-5/16″ UN | 3/4” | 82.5 | S41 | 1-5/16″ UN-12 |
| HFSFP9510-1″ NPT | 1” | 89 | S46 | 1″ NPT |
| HFSFP9510-1″ BSP | 1” | 89 | S46 | 1″ BSPP |
| HFSFP9510-1-1/4″ NPT | 1” | 92 | S55 | 1-1/4″ NPT |
| HFSFP9510-1-1/4″ BSP | 1” | 92 | S55 | 1-1/4″ BSPP |
| HFSFP9510-1-5/16″ UN | 1” | 92 | S55 | 1-5/16″ UN-12 |
Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Cap For Coupler | Art. No.Dust Cap For Plug | Material |
| 04 | 6.3 | ISO16028-6-C-P | ISO16028-6-P-P | PVC |
| 06 | 10 | ISO16028-10-C-P | ISO16028-10-P-P | PVC |
| 08 | 12.5 | ISO16028-12-C-P | ISO16028-12-P-P | PVC |
| 10 | 16 | ISO16028-16-C-P | ISO16028-16-P-P | PVC |
| 12 | 19 | ISO16028-19-C-P | ISO16028-19-P-P | PVC |
| 16 | 25 | ISO16028-25-C-P | ISO16028-25-P-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 420 | 420 | 420 | 1700 | 1700 | 1700 | 0.006 |
| 06 | 3/8” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0.008 |
| 08 | 1/2” | 350 | 330 | 350 | 1400 | 1400 | 1400 | 0.01 |
| 10 | 5/8” | 350 | 330 | 350 | 1400 | 1400 | 1400 | 0.02 |
| 12 | 3/4” | 350 | 330 | 350 | 1400 | 1400 | 1400 | 0.02 |
| 16 | 1” | 350 | 300 | 350 | 1400 | 1400 | 1400 | 0.03 |
| 20 | 1-1/4” | 300 | 300 | 300 | 900 | 900 | 900 | 0.05 |
| 24 | 1-1/2” | 270 | 270 | 270 | 800 | 800 | 800 | 0.05 |
| 32 | 2” | 250 | 200 | 250 | 800 | 800 | 800 | 0.07 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | HANSEN HK SERIES PARKER 60 SERIES SAFEWAY S10 SERIES EATON AEROQUIP FD45 SERIES VOSWINKEL IB SERIES FASTER HNV SERIES STUCCHI IRB SERIES DNP PBV1 SERIES GROMELLE 635-A SERIES DIXON H SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

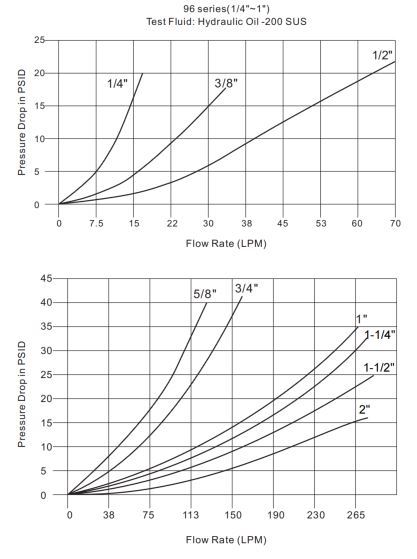

Pressure Drop
Pressure Drop
