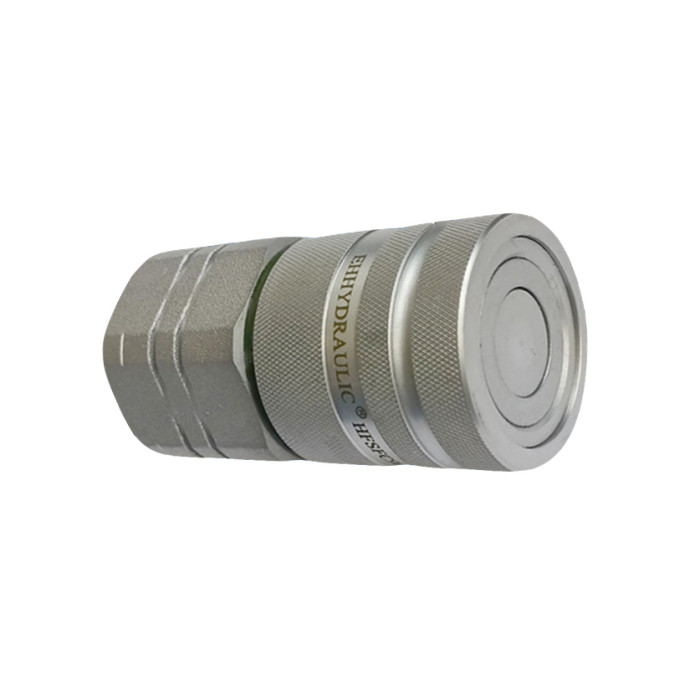

EH 96 Series – FFH ISO 16028 Flat Face Quick Coupler (Steel)
This EHHYDRAULIC series is interchangeable with STUCCHI A SERIES, FASTER FFH SERIES, PARKER FEM SERIES, CEJN X65 SERIES, DIXON HT SERIES, DNP PLT4 SERIES, VOSWINKEL FH SERIES, and GROMELLE 629-A SERIES. The Premier Series Flat Face Couplings, engineered to ISO 16028 interchange standards, deliver exceptional hydraulic performance with higher pressure ratings, optimized flow efficiency, and reduced pressure drop—outperforming both EH 95 Series and competing products. Designed for critical no-leak applications, these couplings feature a non-spill flat-face valve system that eliminates fluid loss during coupling/uncoupling, making them the ideal choice for contamination-sensitive hydraulic systems. Their precision engineering ensures reliable operation while maintaining full ISO compatibility for seamless integration.
Interchange
- STUCCHI A SERIES
- FASTER FFH SERIES
- PARKER FEM SERIES
- DIXON HT SERIES
- DNP PLT4 SERIES
- VOSWINKEL FH SERIES
- GROMELLE 629-A SERIES
- CEJN X65 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 96 Series – FFH ISO 16028 Flat Face Quick Coupler (Steel)
This EHHYDRAULIC series is interchangeable with STUCCHI A SERIES, FASTER FFH SERIES, PARKER FEM SERIES, CEJN X65 SERIES, DIXON HT SERIES, DNP PLT4 SERIES, VOSWINKEL FH SERIES, and GROMELLE 629-A SERIES. The Premier Series Flat Face Couplings, engineered to ISO 16028 interchange standards, deliver exceptional hydraulic performance with higher pressure ratings, optimized flow efficiency, and reduced pressure drop—outperforming both EH 95 Series and competing products. Designed for critical no-leak applications, these couplings feature a non-spill flat-face valve system that eliminates fluid loss during coupling/uncoupling, making them the ideal choice for contamination-sensitive hydraulic systems. Their precision engineering ensures reliable operation while maintaining full ISO compatibility for seamless integration.
Interchange
- STUCCHI A SERIES
- FASTER FFH SERIES
- PARKER FEM SERIES
- DIXON HT SERIES
- DNP PLT4 SERIES
- VOSWINKEL FH SERIES
- GROMELLE 629-A SERIES
- CEJN X65 SERIES
Call Tawk.to
contact@ehhydraulics.com

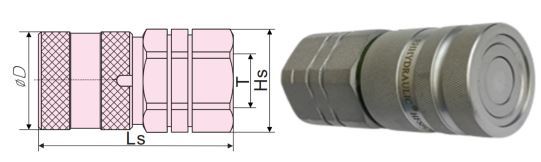

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9614-1/4″ NPT | 1/4” | 50 | S27 | 1/4″ NPT |
| HFSFP9614-1/4″ BSPP | 1/4” | 50 | S27 | 1/4″ BSPP |
| HFSFP9614-7/16″-20 UNF | 1/4” | 51 | S27 | 7/16″ UNF-20 |
| HFSFP9638-3/8″ NPT | 3/8” | 59.5 | S30 | 3/8″ NPT |
| HFSFP9638-1/2″ NPT | 3/8” | 62.5 | S30 | 1/2″ NPT |
| HFSFP9638-3/8″ BSPP | 3/8” | 59.5 | S30 | 3/8″ BSPP |
| HFSFP9638-1/2″ BSPP | 3/8” | 62.5 | S30 | 1/2″ BSPP |
| HFSFP9638-9/16″ UNF | 3/8” | 59.5 | S30 | 9/16″ UNF-18 |
| HFSFP9638-3/4″ UNF | 3/8” | 62.5 | S30 | 3/4″ UNF-16 |
| HFSFP9638-M18x1.5 Male 12L | 3/8” | 65.5 | S30 | M18x1.5 Male 12L |
| HFSFP9638-M22X1.5 Male15L | 3/8” | 66.5 | S30 | M22X1.5 Male15L |
| HFSFP9638-M18x1.5 | 3/8” | 90 | S30 | M18x1.5 Male Bulkhead Short 12L |
| Bulkhead | ||||
| HFSFP9638-M22X1.5 | 3/8” | 90 | S30 | M22X1.5 Male Bulkhead Short 15L |
| Bulkhead | ||||
| HFSFP9612-1/2″ NPT | 1/2” | 68 | S36 | 1/2″ NPT |
| HFSFP9612-3/4″ NPT | 1/2” | 70.5 | S36 | 3/4″ NPT |
| HFSFP9612-1/2″ BSPP | 1/2” | 68 | S36 | 1/2″ BSPP |
| HFSFP9612-3/4″ BSPP | 1/2” | 70.5 | S36 | 3/4″ BSPP |
| HFSFP9612-7/8″ UNF | 1/2” | 70.5 | S36 | 7/8″ UNF-14 |
| HFSFP9612-1-1/16″ UN | 1/2” | 72.5 | S36 | 1-1/ 16″ UN-12 |
| HFSFP9612-1″UNS Male | 1/2” | 93 | S36 | 1″UNS Male Bulkhead ORFS |
| HFSFP9612-1-3/16″UN | 1/2” | 102 | S36 | 1-3/16″UN Male Bulkhead ORFS |
| Male | ||||
| HFSFP9658-3/4″ NPT | 5/8” | 73 | S41 | 3/4″ NPT |
| HFSFP9658-1-1/16″UN | 5/8” | 73 | S41 | 1-1/16″ UN-12 |
| HFSFP9634-3/4″ NPT | 3/4” | 83 | S46 | 3/4″ NPT |
| HFSFP9634-3/4″ BSPP | 3/4” | 83 | S46 | 3/4″ BSPP |
| HFSFP9634-1″ NPT | 3/4” | 83 | S46 | 1″ NPT |
| HFSFP9634-1″ BSPP | 3/4” | 83 | S46 | 1″ BSPP |
| HFSFP9634-1-1/16″ UN | 3/4” | 83 | S46 | 1-1/ 16″ UN-12 |
| HFSFP9634-1-5/16″ UN | 3/4” | 83 | S46 | 1-5/ 16″ UN-12 |
| HFSFP9634-1-3/16″ UN | 3/4” | 117 | S46 | 1-3/16″ UN Male Bulkhead ORFS |
| Male | ||||
| HFSFP9634-1-1/16″ UN | 3/4” | 117 | S46 | 1-1/16″ UN Male Bulkhead ORFS |
| Male | ||||
| HFSFP9610-1″ NPT | 1” | 89 | S55 | 1″ NPT |
| HFSFP9610-1″ BSPP | 1” | 89 | S55 | 1″ BSPP |
| HFSFP9610-1-1/4″ NPT | 1” | 92 | S55 | 1-1/4″ NPT |
| HFSFP9610-1-1/4″ BSPP | 1” | 92 | S55 | 1-1/4″ BSPP |
| HFSFP9610-1-5/ 16″ UN | 1” | 97 | S55 | 1-5/16″ UN-12 |
| HFSFP9610-1-5/8″UN | 1” | 97 | S55 | 1-5/8″ UN-16 |
| HFSFP96114-1-1/4″ BSPP | 1-1/4” | 105 | S60 | 1-1/4″ BSPP |
| HFSFP96114-1-1/4″ NPT | 1-1/4” | 105 | S60 | 1-1/4″ NPT |
| HFSFP96112-1-1/2″ BSPP | 1-1/2” | 114 | S65 | 1-1/2″ BSPP |
| HFSFP96112-1-1/2″ NPT | 1-1/2” | 114 | S65 | 1-1/2″ NPT |
| HFSFP9620-2” BSPP | 2” | 125 | S80 | 2” BSPP |
| HFSFP9620-2” NPT | 2” | 125 | S80 | 2” NPT |

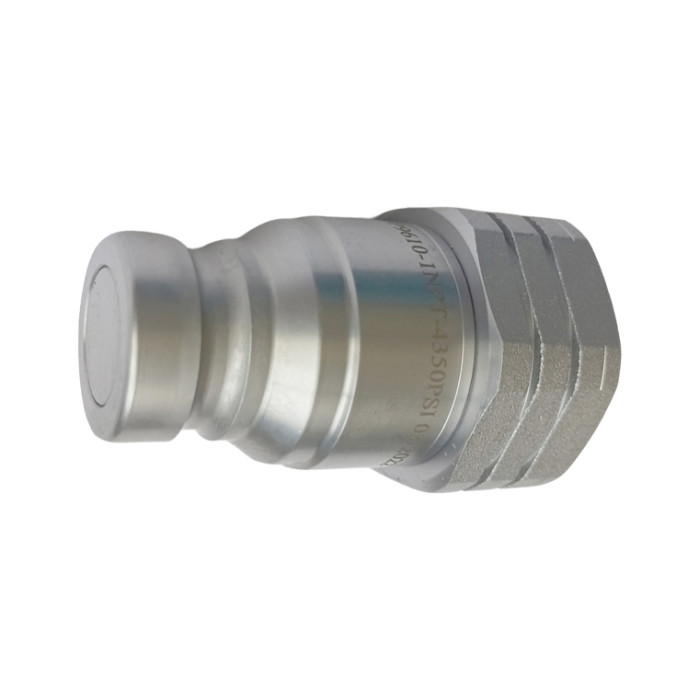

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp(mm) | T |
| HFSFP9614-1/4″ NPT | 1/4” | 50 | S27 | 1/4″ NPT |
| HFSFP9614-1/4″ BSPP | 1/4” | 50 | S27 | 1/4″ BSPP |
| HFSFP9614-7/16″-20 UNF | 1/4” | 51 | S27 | 7/16″ UNF-20 |
| HFSFP9638-3/8″ NPT | 3/8” | 59.5 | S30 | 3/8″ NPT |
| HFSFP9638-1/2″ NPT | 3/8” | 62.5 | S30 | 1/2″ NPT |
| HFSFP9638-3/8″ BSPP | 3/8” | 59.5 | S30 | 3/8″ BSPP |
| HFSFP9638-1/2″ BSPP | 3/8” | 62.5 | S30 | 1/2″ BSPP |
| HFSFP9638-9/16″ UNF | 3/8” | 59.5 | S30 | 9/16″ UNF-18 |
| HFSFP9638-3/4″ UNF | 3/8” | 62.5 | S30 | 3/4″ UNF-16 |
| HFSFP9638-M18x1.5 Male 12L | 3/8” | 65.5 | S30 | M18x1.5 Male 12L |
| HFSFP9638-M22X1.5 Male15L | 3/8” | 66.5 | S30 | M22X1.5 Male15L |
| HFSFP9638-M18x1.5 | 3/8” | 90 | S30 | M18x1.5 Male Bulkhead Short 12L |
| Bulkhead | ||||
| HFSFP9638-M22X1.5 | 3/8” | 90 | S30 | M22X1.5 Male Bulkhead Short 15L |
| Bulkhead | ||||
| HFSFP9612-1/2″ NPT | 1/2” | 68 | S36 | 1/2″ NPT |
| HFSFP9612-3/4″ NPT | 1/2” | 70.5 | S36 | 3/4″ NPT |
| HFSFP9612-1/2″ BSPP | 1/2” | 68 | S36 | 1/2″ BSPP |
| HFSFP9612-3/4″ BSPP | 1/2” | 70.5 | S36 | 3/4″ BSPP |
| HFSFP9612-7/8″ UNF | 1/2” | 70.5 | S36 | 7/8″ UNF-14 |
| HFSFP9612-1-1/16″ UN | 1/2” | 72.5 | S36 | 1-1/ 16″ UN-12 |
| HFSFP9612-1″UNS Male | 1/2” | 93 | S36 | 1″UNS Male Bulkhead ORFS |
| HFSFP9612-1-3/16″UN | 1/2” | 102 | S36 | 1-3/16″UN Male Bulkhead ORFS |
| Male | ||||
| HFSFP9658-3/4″ NPT | 5/8” | 73 | S41 | 3/4″ NPT |
| HFSFP9658-1-1/16″UN | 5/8” | 73 | S41 | 1-1/16″ UN-12 |
| HFSFP9634-3/4″ NPT | 3/4” | 83 | S46 | 3/4″ NPT |
| HFSFP9634-3/4″ BSPP | 3/4” | 83 | S46 | 3/4″ BSPP |
| HFSFP9634-1″ NPT | 3/4” | 83 | S46 | 1″ NPT |
| HFSFP9634-1″ BSPP | 3/4” | 83 | S46 | 1″ BSPP |
| HFSFP9634-1-1/16″ UN | 3/4” | 83 | S46 | 1-1/ 16″ UN-12 |
| HFSFP9634-1-5/16″ UN | 3/4” | 83 | S46 | 1-5/ 16″ UN-12 |
| HFSFP9634-1-3/16″ UN | 3/4” | 117 | S46 | 1-3/16″ UN Male Bulkhead ORFS |
| Male | ||||
| HFSFP9634-1-1/16″ UN | 3/4” | 117 | S46 | 1-1/16″ UN Male Bulkhead ORFS |
| Male | ||||
| HFSFP9610-1″ NPT | 1” | 89 | S55 | 1″ NPT |
| HFSFP9610-1″ BSPP | 1” | 89 | S55 | 1″ BSPP |
| HFSFP9610-1-1/4″ NPT | 1” | 92 | S55 | 1-1/4″ NPT |
| HFSFP9610-1-1/4″ BSPP | 1” | 92 | S55 | 1-1/4″ BSPP |
| HFSFP9610-1-5/ 16″ UN | 1” | 97 | S55 | 1-5/16″ UN-12 |
| HFSFP9610-1-5/8″UN | 1” | 97 | S55 | 1-5/8″ UN-16 |
| HFSFP96114-1-1/4″ BSPP | 1-1/4” | 105 | S60 | 1-1/4″ BSPP |
| HFSFP96114-1-1/4″ NPT | 1-1/4” | 105 | S60 | 1-1/4″ NPT |
| HFSFP96112-1-1/2″ BSPP | 1-1/2” | 114 | S65 | 1-1/2″ BSPP |
| HFSFP96112-1-1/2″ NPT | 1-1/2” | 114 | S65 | 1-1/2″ NPT |
| HFSFP9620-2” BSPP | 2” | 125 | S80 | 2” BSPP |
| HFSFP9620-2” NPT | 2” | 125 | S80 | 2” NPT |

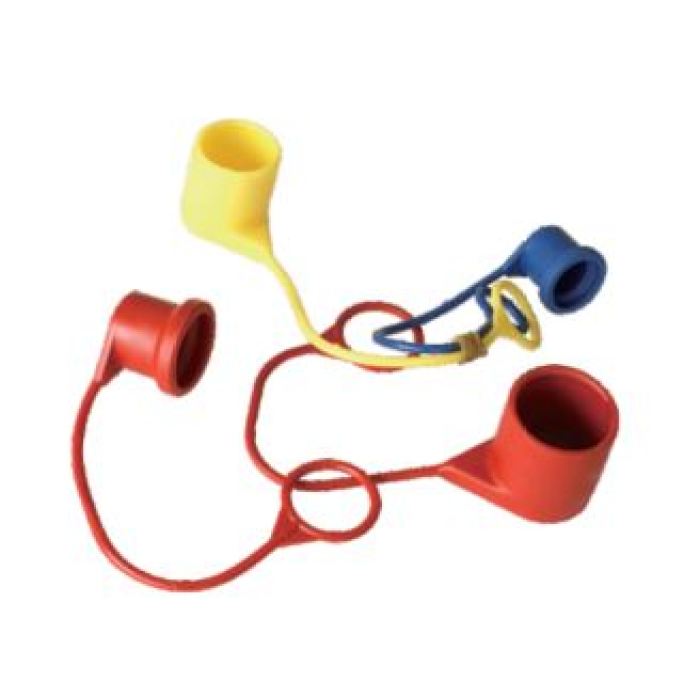

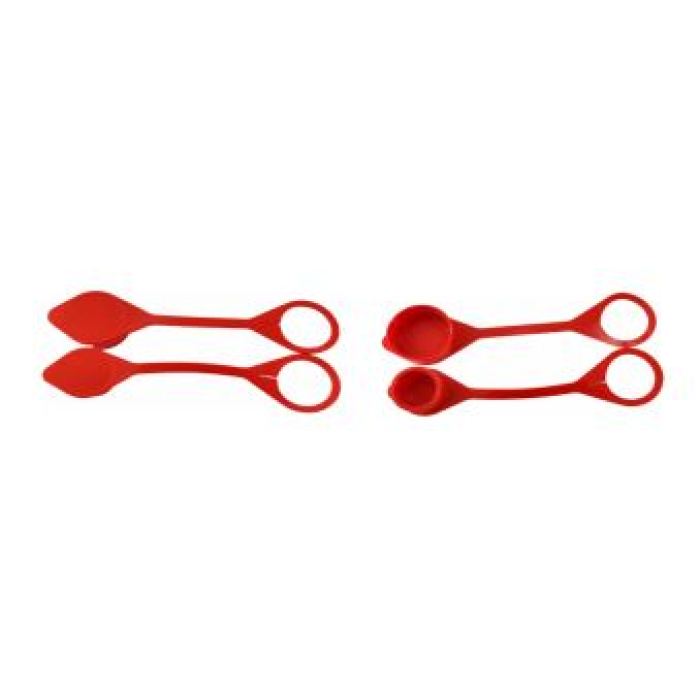

Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Cap For Coupler | Art. No.Dust Cap For Plug | Material |
| 04 | 6.3 | ISO16028-6-C-P | ISO16028-6-P-P | PVC |
| 06 | 10 | ISO16028-10-C-P | ISO16028-10-P-P | PVC |
| 08 | 12.5 | ISO16028-12-C-P | ISO16028-12-P-P | PVC |
| 10 | 16 | ISO16028-16-C-P | ISO16028-16-P-P | PVC |
| 12 | 19 | ISO16028-19-C-P | ISO16028-19-P-P | PVC |
| 16 | 25 | ISO16028-25-C-P | ISO16028-25-P-P | PVC |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 04 | 1/4” | 420 | 420 | 420 | 1700 | 1700 | 1700 | 0.006 |
| 06 | 3/8” | 350 | 350 | 350 | 1400 | 1400 | 1400 | 0.008 |
| 08 | 1/2” | 350 | 330 | 350 | 1400 | 1400 | 1400 | 0.01 |
| 10 | 5/8” | 350 | 330 | 350 | 1400 | 1400 | 1400 | 0.02 |
| 12 | 3/4” | 350 | 330 | 350 | 1400 | 1400 | 1400 | 0.02 |
| 16 | 1” | 350 | 300 | 350 | 1400 | 1400 | 1400 | 0.03 |
| 20 | 1-1/4” | 300 | 300 | 300 | 900 | 900 | 900 | 0.05 |
| 24 | 1-1/2” | 270 | 270 | 270 | 800 | 800 | 800 | 0.05 |
| 32 | 2” | 250 | 200 | 250 | 800 | 800 | 800 | 0.07 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | HANSEN HK SERIES PARKER 60 SERIES SAFEWAY S10 SERIES EATON AEROQUIP FD45 SERIES VOSWINKEL IB SERIES FASTER HNV SERIES STUCCHI IRB SERIES DNP PBV1 SERIES GROMELLE 635-A SERIES DIXON H SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

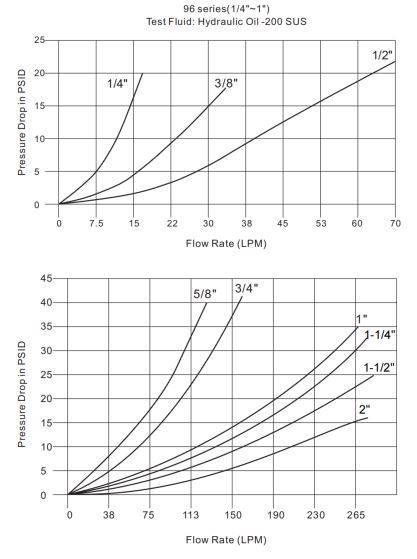

Pressure Drop
Pressure Drop
Application areas
Snubbing Units For Wells Control

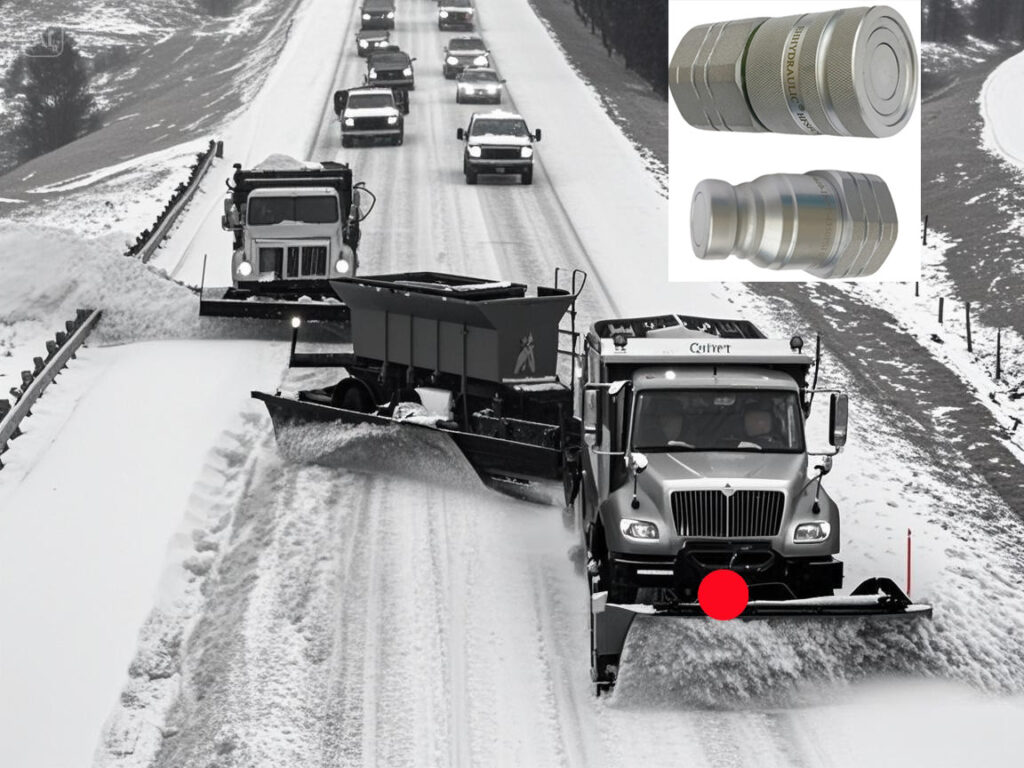

Snow Plows
Roadheader Machines
Power Beyond Rear Attachments

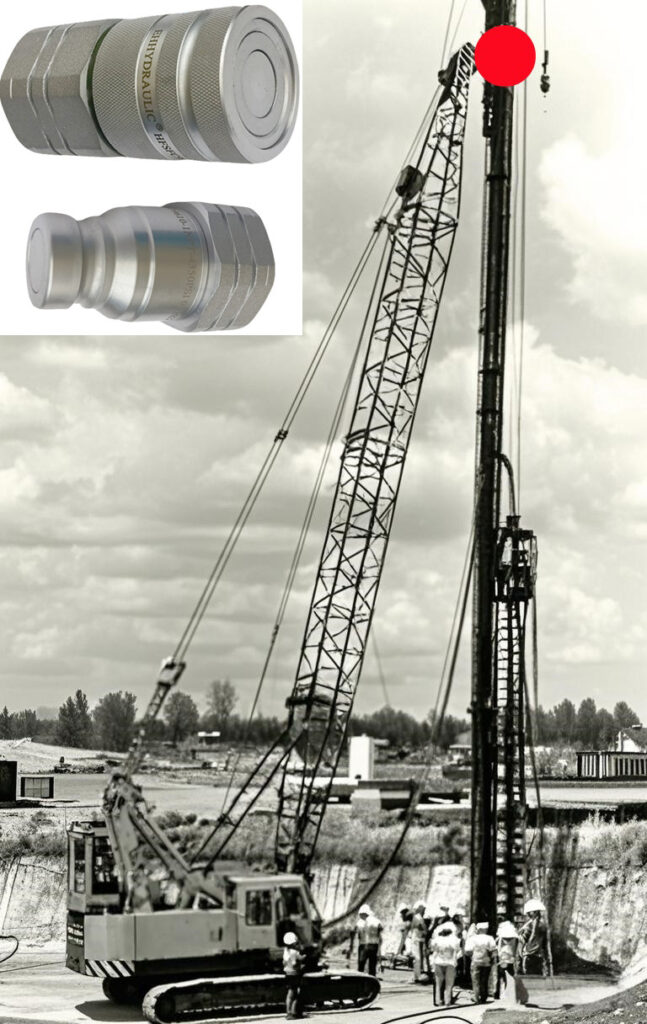

Well Drilling Machines
Optical Fiber Cable Blowing Machine

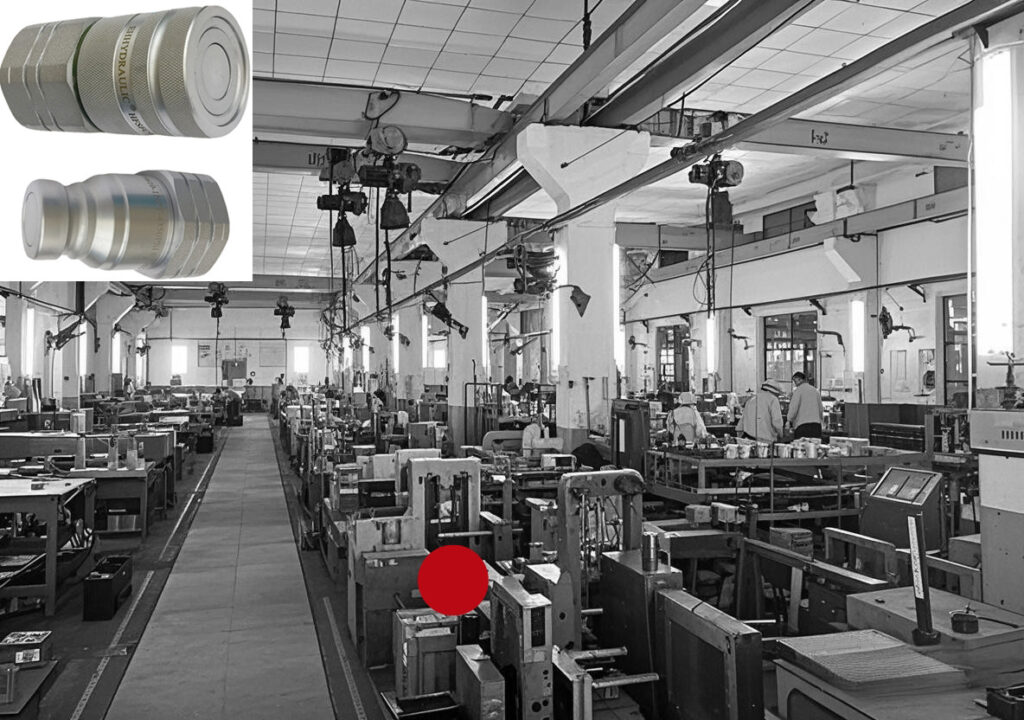

Mold and Die Industry
Mini Dumpers
Hydromill Trench Cutters
Hydraulic Undercarriage
Hydraulic Diamond Saw Systems
Heavy-Duty Modular Vehicles

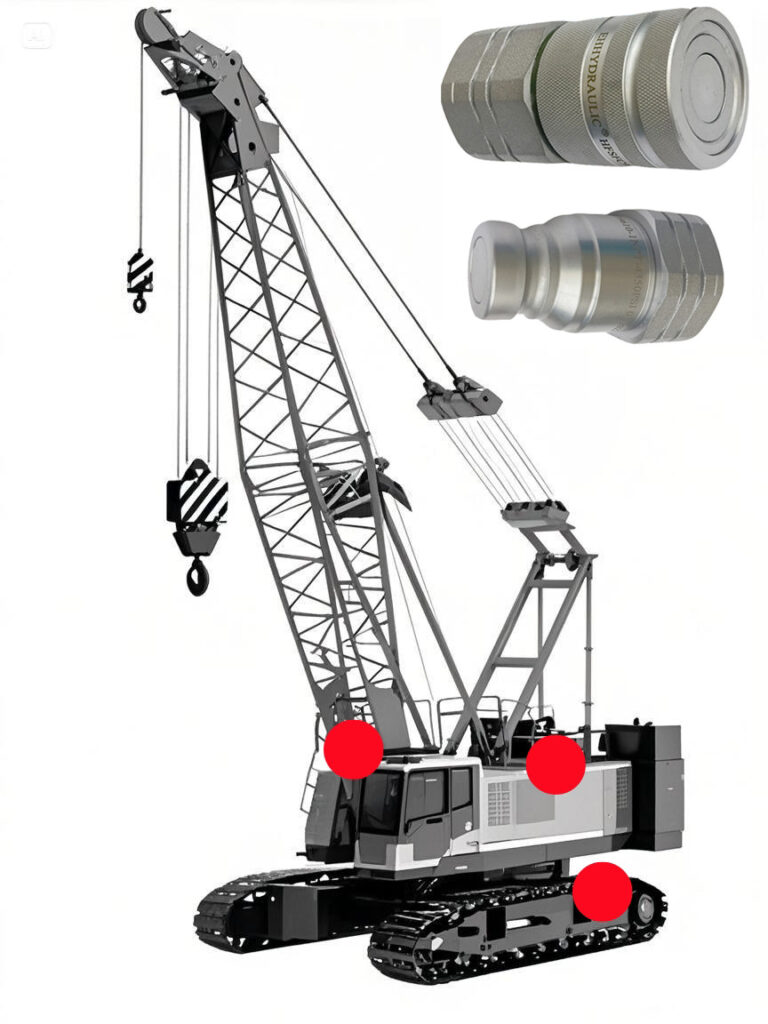

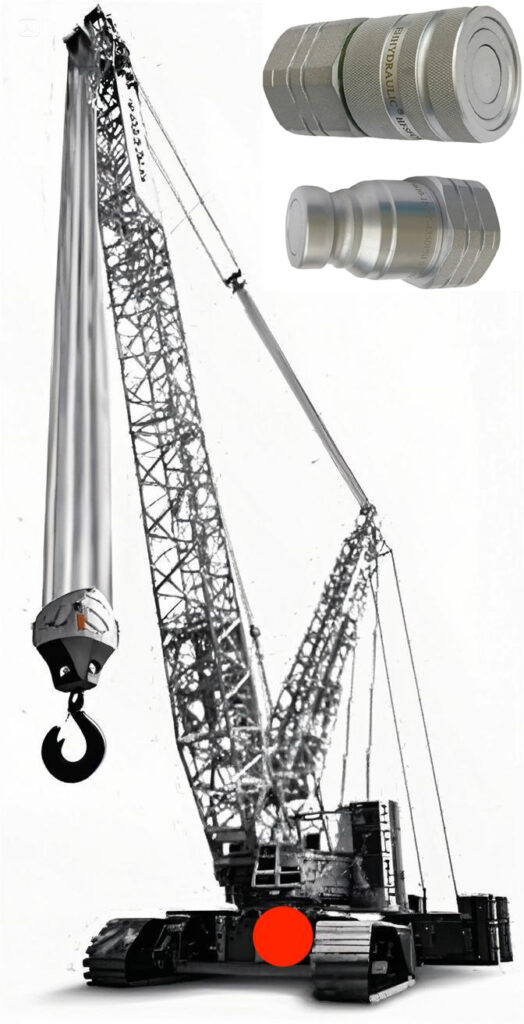

Crawler Cranes

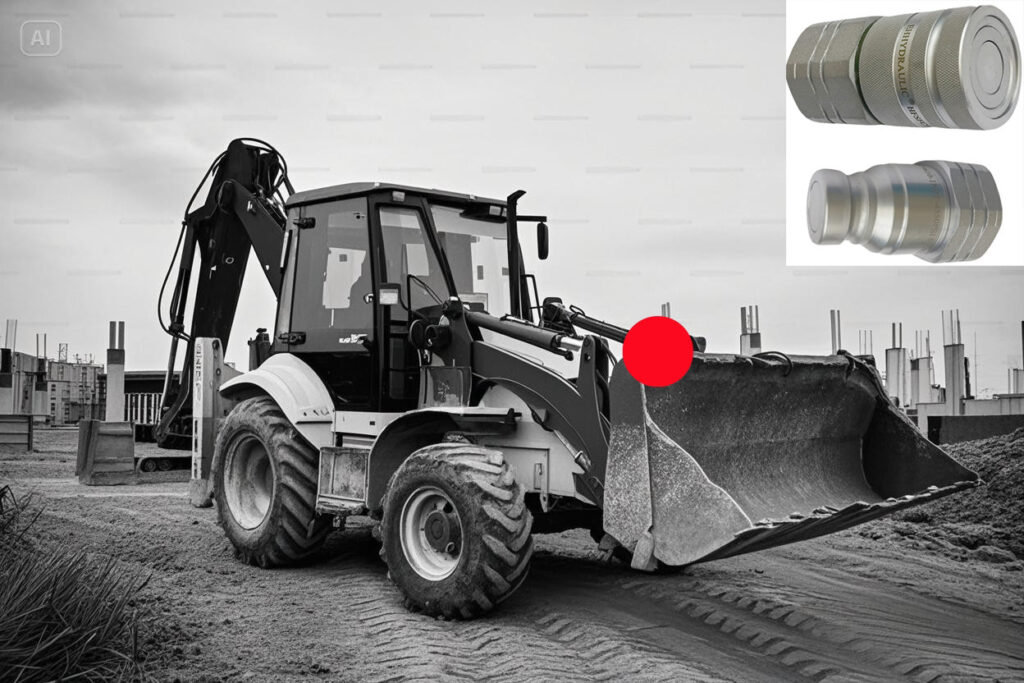

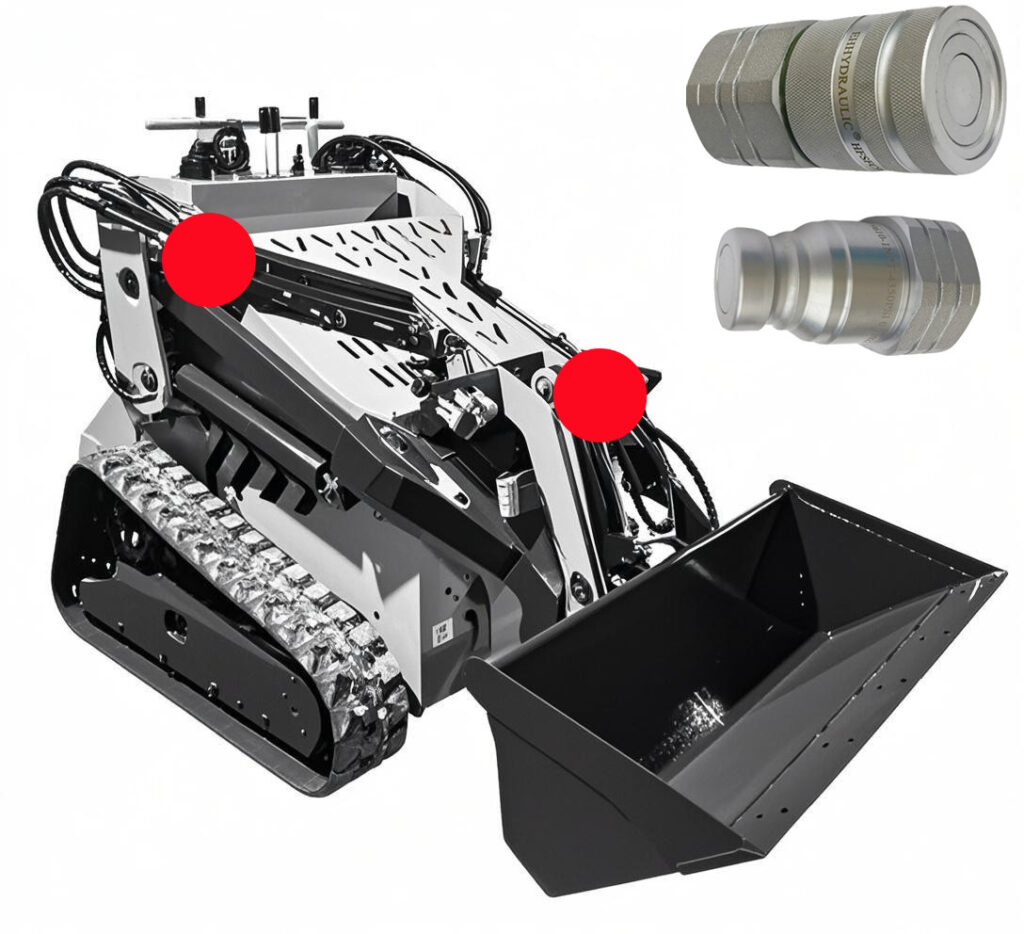

Compact Wheel Loader

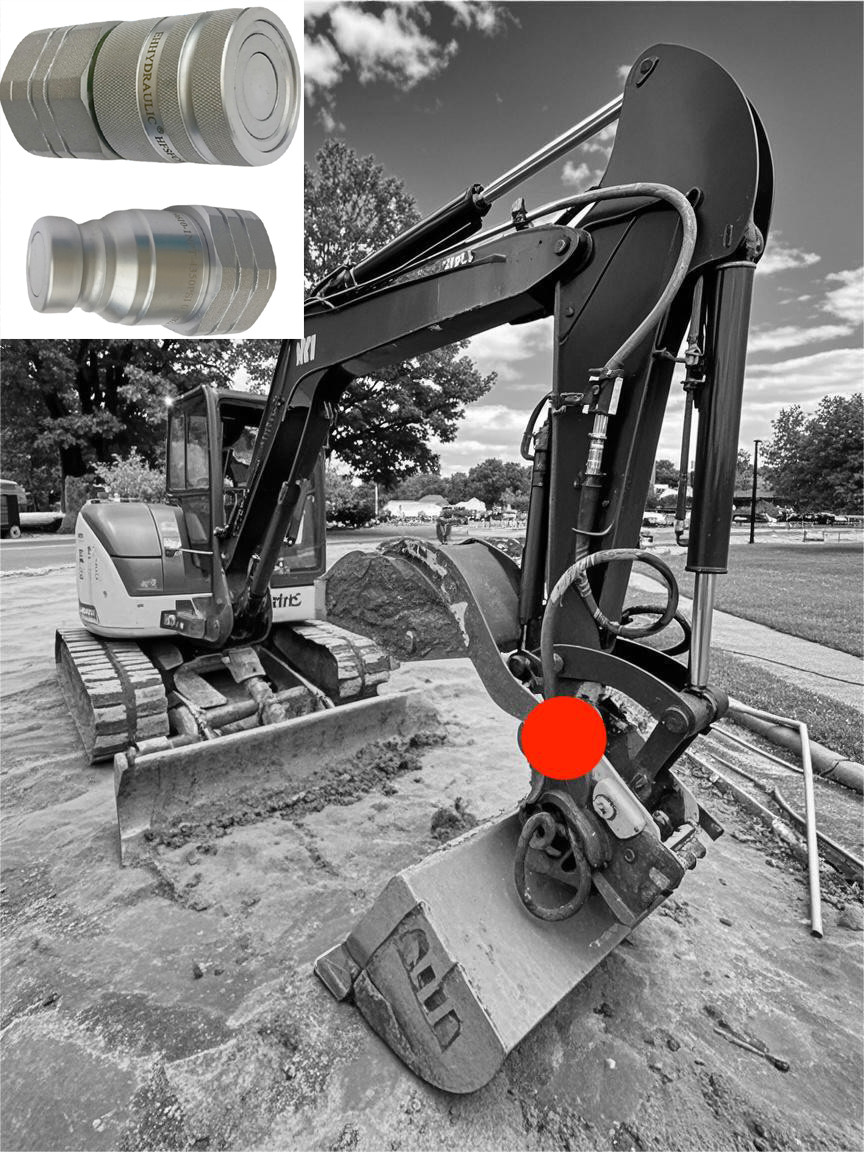

Compact Excavator
Coiled Tubing Units

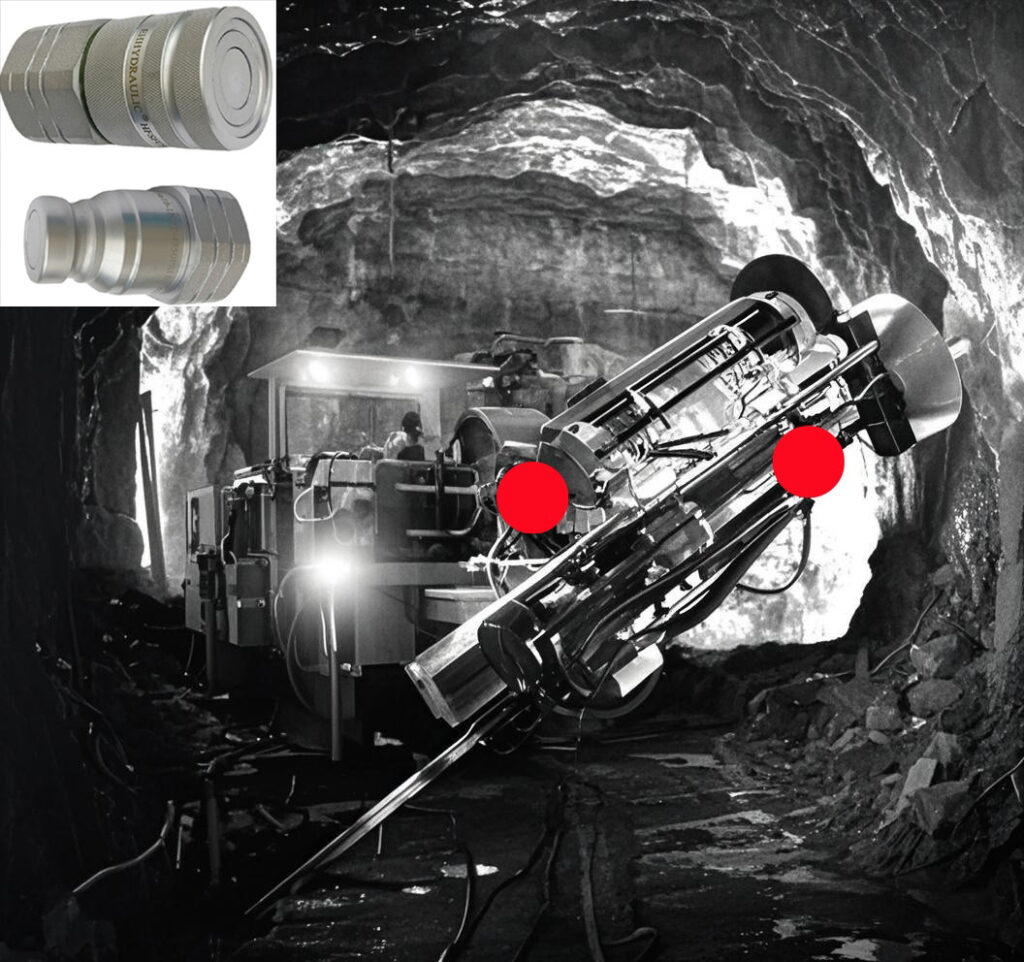

Boom Drilling Equipment For Mining-Tunneling
Application areas
Snubbing Units For Wells Control
Snow Plows
Roadheader Machines
Power Beyond Rear Attachments
Well Drilling Machines
Optical Fiber Cable Blowing Machine
Mold and Die Industry
Mini Dumpers
Hydromill Trench Cutters
Hydraulic Undercarriage
Hydraulic Diamond Saw Systems
Heavy-Duty Modular Vehicles
Crawler Cranes
Compact Wheel Loader
Compact Excavator
Coiled Tubing Units
Boom Drilling Equipment For Mining-Tunneling
