EH 98 Series – PARKER 6100 The Rugged Wing Style Quick Couplings (Brass)
This EH series is interchangeable with PARKER 6100 SERIES, DIXON W SERIES, EATON AEROQUIP 5100 SERIES, FASTER FB SERIES, VOSWINKEL HM SERIES, SNAP-TITE 78 SERIES, SAFEWAY S51 SERIES, and HANSEN 96 WING NUT SERIES. Brass flat-face screw couplings specifically designed for vehicle and road machinery hydraulic systems. Features an ergonomic wing sleeve for tool-free operation, enabling easy manual connection/disconnection. Compliant with US interchange standards for seamless compatibility.
Interchange
- PARKER 6100 SERIES
- DIXON W SERIES
- EATON AEROQUIP 5100 SERIES
- FASTER FB SERIES
- VOSWINKEL HM SERIES
- HANSEN 96 WING NUT SERIES
- SNAP-TITE 78 SERIES
- SAFEWAY S51 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 297 Series – VEP ISO 16028 Threaded Flat Face Quick Coupling (Steel)
This EH series is interchangeable with PARKER 6100 SERIES, DIXON W SERIES, EATON AEROQUIP 5100 SERIES, FASTER FB SERIES, VOSWINKEL HM SERIES, SNAP-TITE 78 SERIES, SAFEWAY S51 SERIES, and HANSEN 96 WING NUT SERIES. Brass flat-face screw couplings specifically designed for vehicle and road machinery hydraulic systems. Features an ergonomic wing sleeve for tool-free operation, enabling easy manual connection/disconnection. Compliant with US interchange standards for seamless compatibility.
Interchange
- PARKER 6100 SERIES
- DIXON W SERIES
- EATON AEROQUIP 5100 SERIES
- SNAP-TITE 78 SERIES
- HANSEN 96 WING NUT SERIES
- FASTER FB SERIES
- VOSWINKEL HM SERIES
- SAFEWAY S51 SERIES
Call Tawk.to
contact@ehhydraulics.com

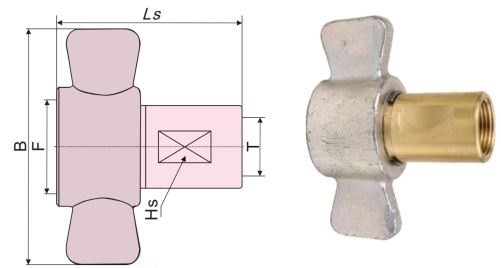

Female Coupler
Female Coupler
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Ls(mm) | B(mm) | Hs(mm) | F(mm) | T |
| HFBFC9834-1/2″ | 3/4” | 75.5 | 102.5 | S27 | 1.5-12UNF | 1/2″NPTF |
| HFBFC9834-3/4″ | 3/4” | 79.5 | 102.5 | S29.5 | 1.5-12UNF | 3/4″NPTF |
| HFBFC9810-1″ | 1” | 94.5 | 113 | S36.5 | 1.875-12UNF | 1″NPTF |
| HFBFC98114-1-1/4″ | 1-1/4” | 100 | 136 | S45 | 2.125-12UNF | 1-1/4″NPTF |
| HFBFC98112-1-1/2″ | 1-1/2” | 104 | 137.5 | S52 | 2.5-12UNF | 1-1/2″NPTF |

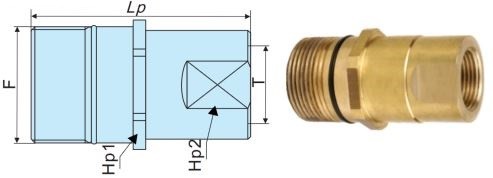

Male Plug
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | ||||||
| Art. No. | Body Size (inch) | Lp(mm) | Hp1(mm) | Hp2(mm) | F(mm) | T |
| HFBFP9834-1/2″ | 3/4” | 76 | S41 | S30 | 1.5-12UNF | 1/2″NPTF |
| HFBFP9834-3/4″ | 3/4” | 79.5 | S41 | S33 | 1.5-12UNF | 3/4″NPTF |
| HFBFP9810-1″ | 1” | 94.5 | S47.5 | S41.8 | 1.875-12UNF | 1″NPTF |
| HFBFP98114-1-1/4″ | 1-1/4” | 100 | S54 | S50 | 2.125-12UNF | 1-1/4″NPTF |
| HFBFP98112-1-1/2″ | 1-1/2” | 104 | S63.5 | S60 | 2.5-12UNF | 1-1/2″NPTF |

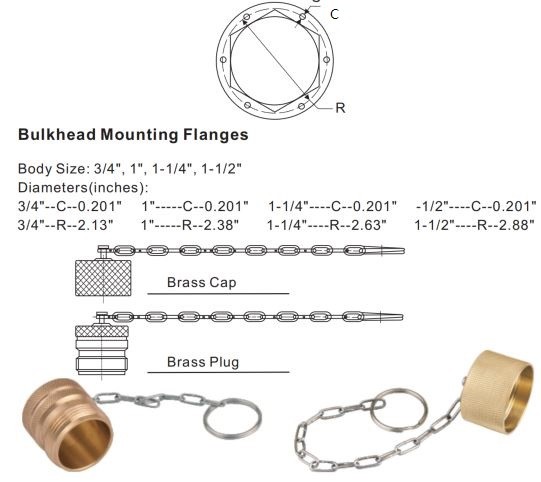

Accessories
Accessories
| Dash Size | ISO Size | Art. No. Dust Plug for Coupler | Art. No. Dust Cap for Plug | Material |
| 12 | 20 | 98-3/4-P-B | 98-3/4-C-B | BRASS |
| 12 | 20 | 98-3/4-P-B | 98-3/4-C-B | BRASS |
| 16 | 25 | 98-1-P-B | 98-1-C-B | BRASS |
| 20 | 31 | 98-1-1/4-P-B | 98-1-1/4-C-B | BRASS |
| 24 | 38 | 98-1-1/2-P-B | 98-1-1/2-C-B | BRASS |
Technical Specifications
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work PressureMale (bar) | Max. Work PressureFemale (bar) | Max. Work PressureCoupled (bar) | Min. Burst PressureMale(bar) | Min. Burst PressureFemale(bar) | Min. Burst PressureCoupled(bar) | Spillage(ml) |
| 12 | 3/4” | 250 | 250 | 250 | 1000 | 750 | 820 | 0.1 |
| 16 | 1” | 230 | 230 | 230 | 1300 | 700 | 800 | 0.2 |
| 20 | 1-1/4” | 210 | 210 | 210 | 780 | 640 | 680 | 0.5 |
| 24 | 1-1/2” | 200 | 200 | 200 | 600 | 600 | 620 | 0.7 |
| Material: | Brass | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | / | |
| Specifications: | Market Interchange | HANSEN 96 WING NUT SERIESPARKER 6100 SERIESEATON AEROQUIP 5100 SERIESFASTER FB SERIESSAFEWAY S51 SERIESVOSWINKEL HM SERIESDIXON W SERIESSNAP-TITE 78 SERIES |
| Valve Type: | Flat | |
| Connection: | Screw To Connect | |
| Disconnection: | Unscrew To Disconnect | |
| Connection Under Pressure: | Allowed Residual | |

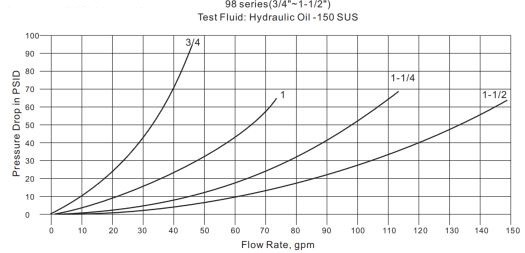

Pressure Drop
Pressure Drop
