EH 82 Series – ISO 7241-B Quick Coupler Steel Versions (Steel)
This EHHYDRAULIC series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBV1 SERIES, STUCCHI IRB SERIES, HANSEN HK SERIES, SAFEWAY S10 SERIES, VOSWINKEL IB SERIES, and GROMELLE 635-A SERIES. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8″ to 2″ with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
Interchange
- PARKER 60 SERIES
- DIXON H SERIES
- FASTER HNV SERIES
- EATON AEROQUIP FD45 SERIES
- STUCCHI IRB SERIES
- HANSEN HK SERIES
- SAFEWAY S10 SERIES
- VOSWINKEL IB SERIES
- GROMELLE 635-A SERIES
- DNP PBV1 SERIES
Call Tawk.to
contact@ehhydraulics.com
EH 82 Series – ISO 7241-B Quick Coupler Steel Versions (Steel)
This EHHYDRAULIC series is interchangeable with PARKER 60 SERIES, DIXON H SERIES, EATON AEROQUIP FD45 SERIES, FASTER HNV SERIES, DNP PBV1 SERIES, STUCCHI IRB SERIES, HANSEN HK SERIES, SAFEWAY S10 SERIES, VOSWINKEL IB SERIES, and GROMELLE 635-A SERIES. Industrial-grade standard couplings compliant with ISO 7241-1 Series B. Full size range available from 1/8″ to 2″ with multiple thread options (BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
Interchange
- PARKER 60 SERIES
- DIXON H SERIES
- FASTER HNV SERIES
- EATON AEROQUIP FD45 SERIES
- STUCCHI IRB SERIES
- HANSEN HK SERIES
- SAFEWAY S10 SERIES
- VOSWINKEL IB SERIES
- GROMELLE 635-A SERIES
- DNP PBV1 SERIES
Call Tawk.to
contact@ehhydraulics.com

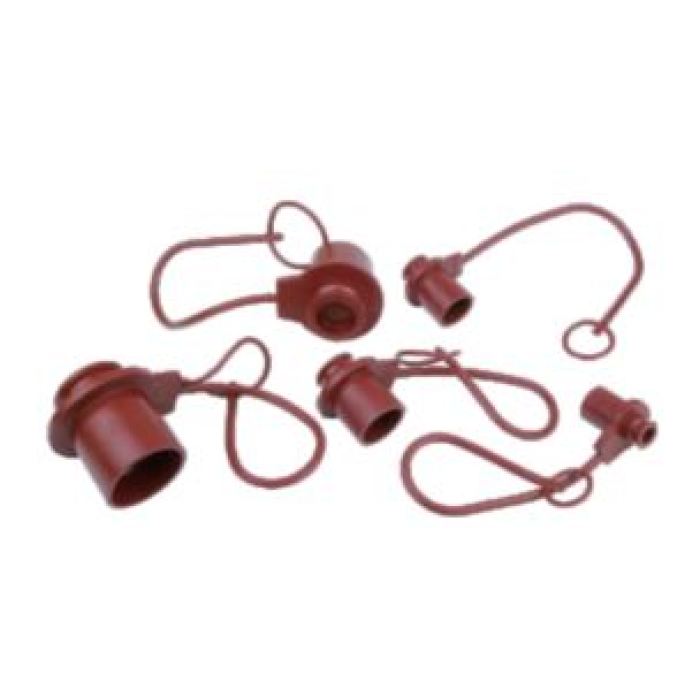

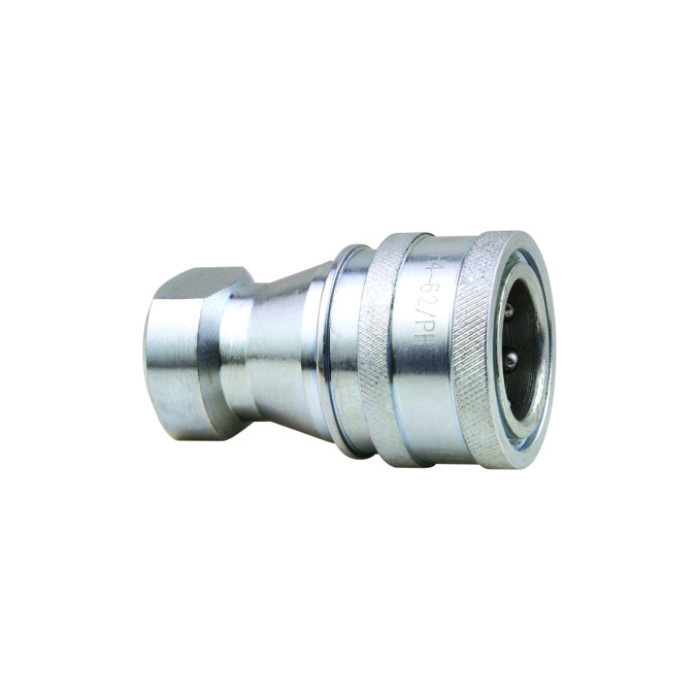

Female Coupler
| Dash Size | ISO Size | Art. No. Dust Plug For Coupler | Art. No. Dust Cap For Plug | Material |
| 04 | 6.3 | ISO-14540-1/4-P-AL | ISO-14540-1/4-C-AL | Aluminum |
| 06 | 10 | ISO-14540-3/8-P-AL | ISO-14540-3/8-C-AL | Aluminum |

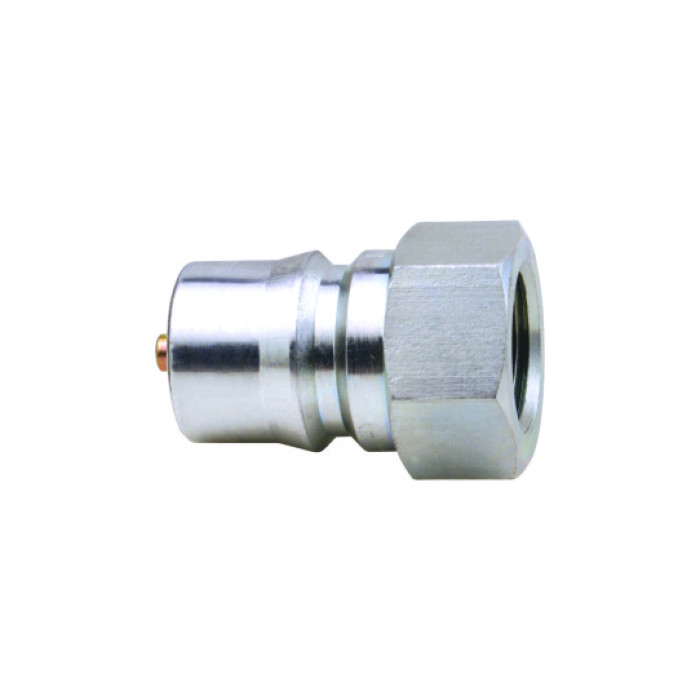

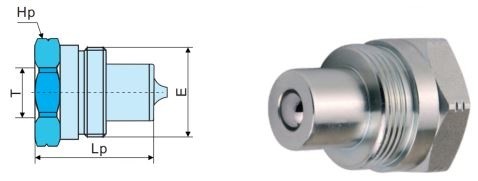

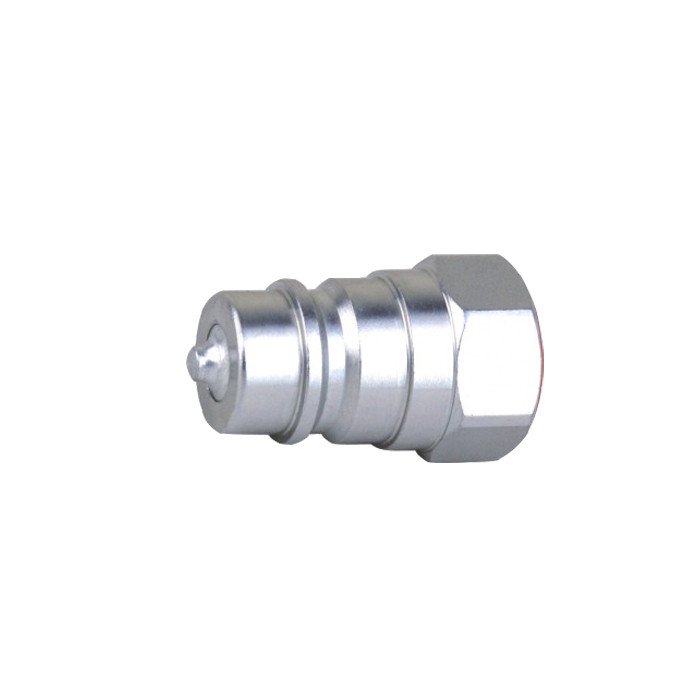

Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | E(mm) | Hp(mm) | T |
| HFSFP8814-1/4″ | 1/4” | 45 | 1-18UNS | S19 | 1/4”NPTF |
| HFSFP8838-3/8″ | 3/8” | 40 | 1-3/16-16UN | S32 | 3/8”NPTF |

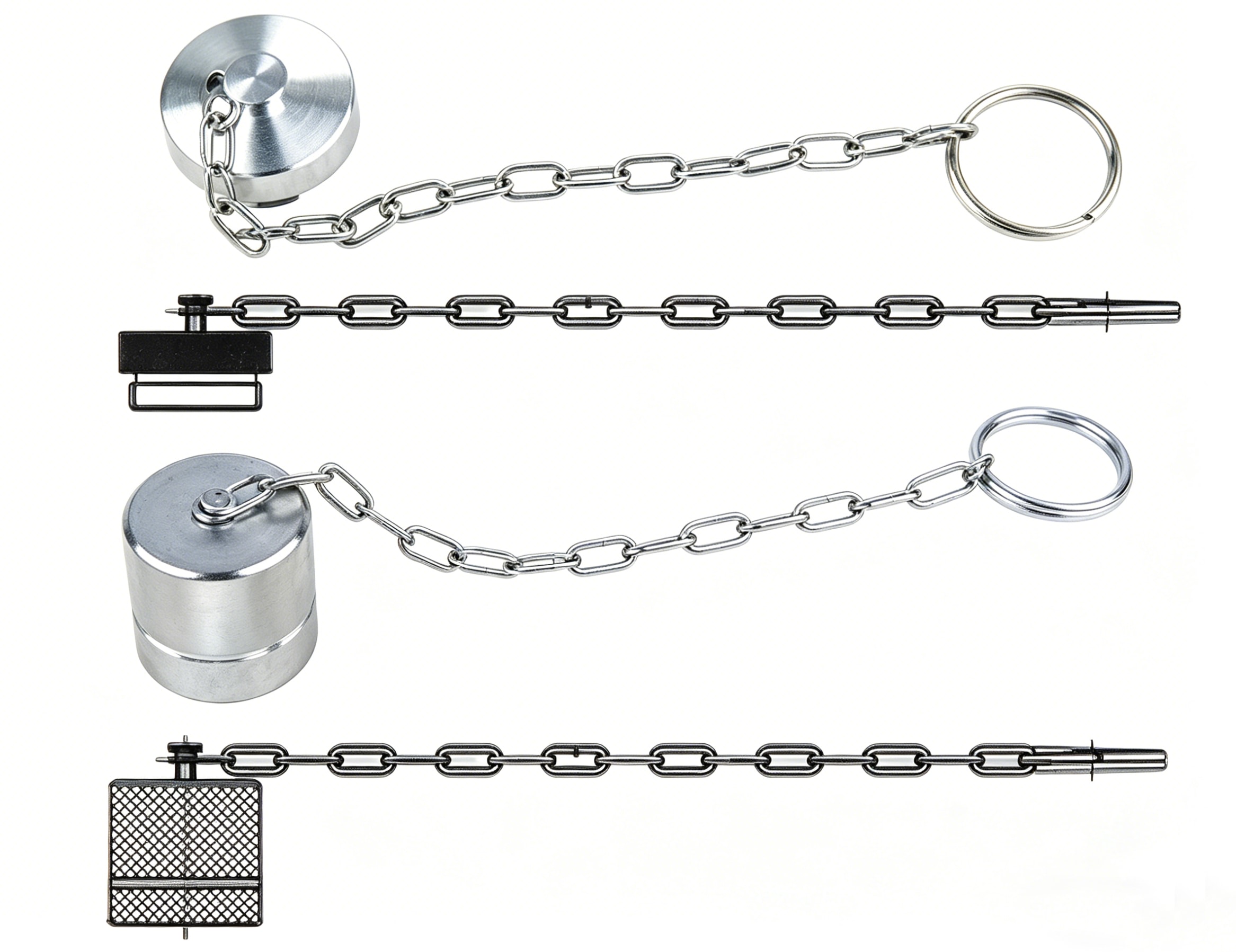

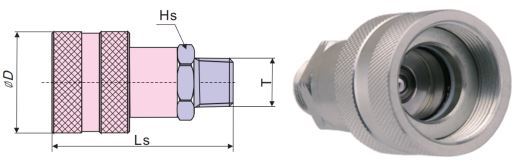

Accessories
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFP8814-1/4″ | 1/4” | 62.5 | 30 | S22 | 1/4”NPTF |
| HFSFP8838-3/8″ | 3/8” | 71.5 | 35 | S24 | 3/8”NPTF |
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work Pressure Male (bar) | Max. Work Pressure Female (bar) | Max. Work Pressure Coupled (bar) | Min. Burst Pressure Male (bar) | Min. Burst Pressure Female (bar) | Min. Burst Pressure Coupled (bar) |
| 04 | 1/4” | 720 | 720 | 720 | 2880 | 2880 | 2880 |
| 06 | 3/8” | 720 | 720 | 720 | 2880 | 2880 | 2880 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | HANSEN HK SERIES PARKER 60 SERIES SAFEWAY S10 SERIES EATON AEROQUIP FD45 SERIES VOSWINKEL IB SERIES FASTER HNV SERIES STUCCHI IRB SERIES DNP PBV1 SERIES GROMELLE 635-A SERIES DIXON H SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |

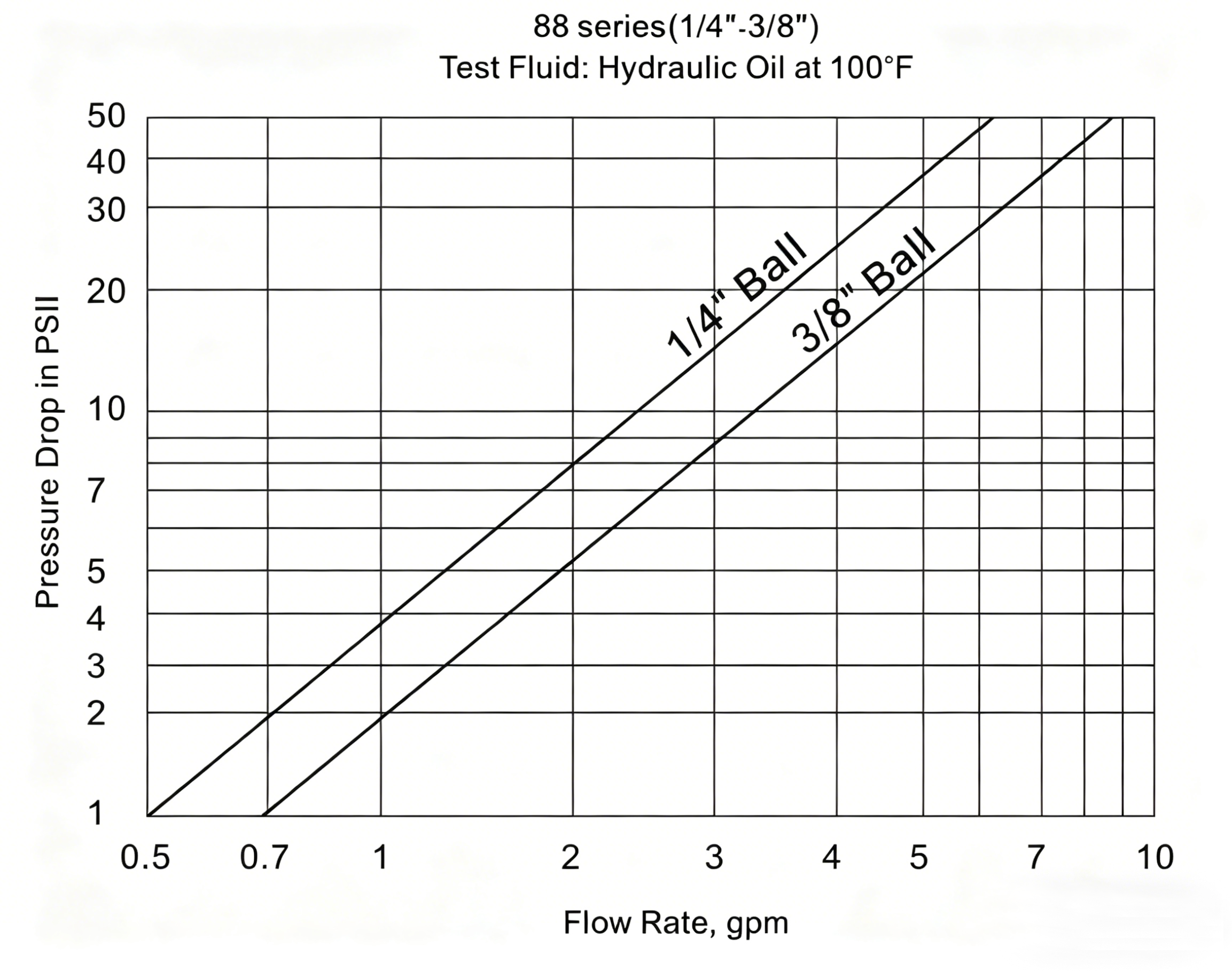

Pressure Drop
Female Coupler
| Dash Size | ISO Size | Art. No. Dust Plug For Coupler | Art. No. Dust Cap For Plug | Material |
| 04 | 6.3 | ISO-14540-1/4-P-AL | ISO-14540-1/4-C-AL | Aluminum |
| 06 | 10 | ISO-14540-3/8-P-AL | ISO-14540-3/8-C-AL | Aluminum |
Male Plug
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Lp(mm) | E(mm) | Hp(mm) | T |
| HFSFP8814-1/4″ | 1/4” | 45 | 1-18UNS | S19 | 1/4”NPTF |
| HFSFP8838-3/8″ | 3/8” | 40 | 1-3/16-16UN | S32 | 3/8”NPTF |
Accessories
| Other Threads/Fitting Ends Are Available Upon Request | |||||
| Art. No. | Body Size (inch) | Ls(mm) | D(mm) | Hs(mm) | T |
| HFSFP8814-1/4″ | 1/4” | 62.5 | 30 | S22 | 1/4”NPTF |
| HFSFP8838-3/8″ | 3/8” | 71.5 | 35 | S24 | 3/8”NPTF |
Technical Specifications
| Dash Size | Body Size (Inch) | Max. Work Pressure Male (bar) | Max. Work Pressure Female (bar) | Max. Work Pressure Coupled (bar) | Min. Burst Pressure Male (bar) | Min. Burst Pressure Female (bar) | Min. Burst Pressure Coupled (bar) |
| 04 | 1/4” | 720 | 720 | 720 | 2880 | 2880 | 2880 |
| 06 | 3/8” | 720 | 720 | 720 | 2880 | 2880 | 2880 |
| Material: | Steel | |
| Seals: | NBR, Seals can be customized to meet your special work condition/media | |
| Working Temperatures: | -25 °C to 125 °C, Customizable | |
| Surface Treatment: | MATE 500 (CRIII) | |
| Specifications: | Market Interchange | HANSEN HK SERIES PARKER 60 SERIES SAFEWAY S10 SERIES EATON AEROQUIP FD45 SERIES VOSWINKEL IB SERIES FASTER HNV SERIES STUCCHI IRB SERIES DNP PBV1 SERIES GROMELLE 635-A SERIES DIXON H SERIES |
| Valve Type: | Poppet | |
| Connection: | Sleeve Retraction | |
| Disconnection: | Sleeve Retraction | |
| Connection Under Pressure: | Not Allowed | |
Pressure Drop

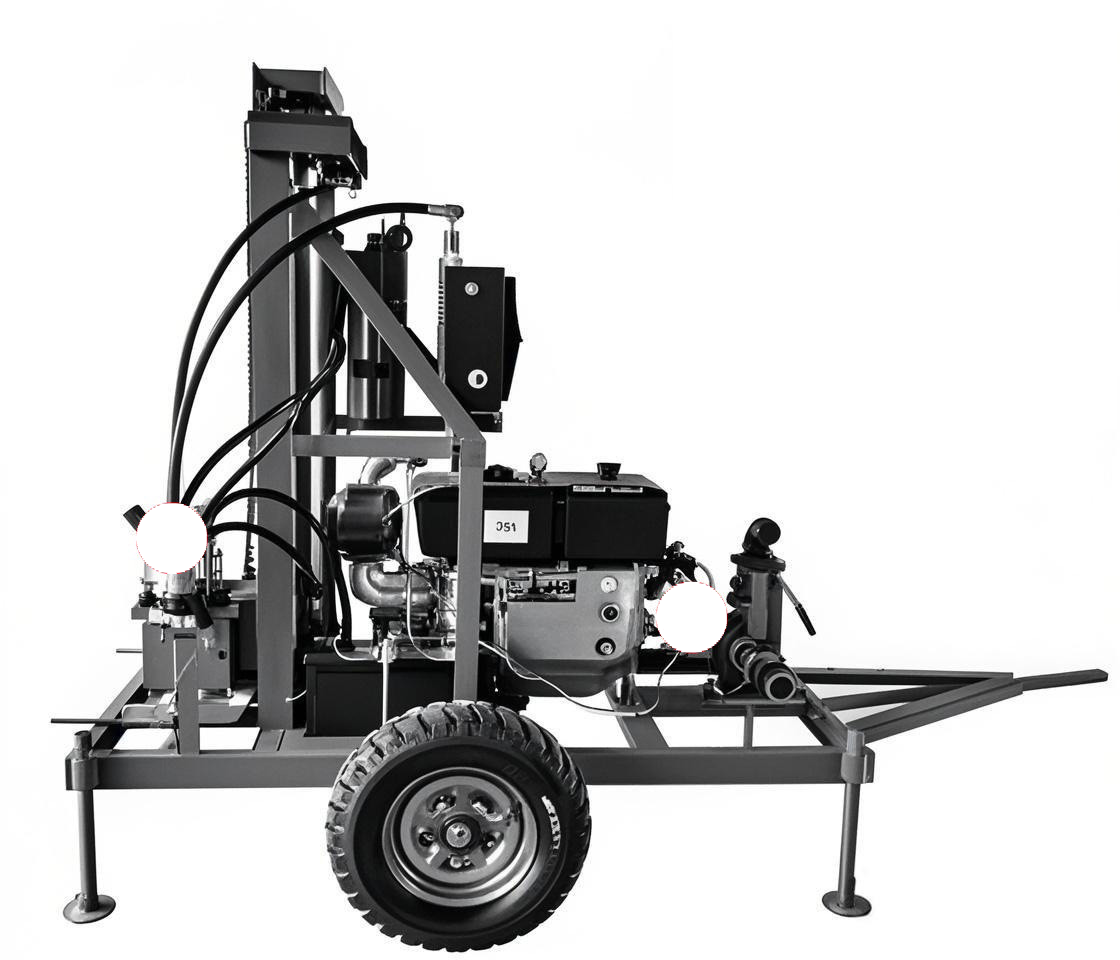

Application areas

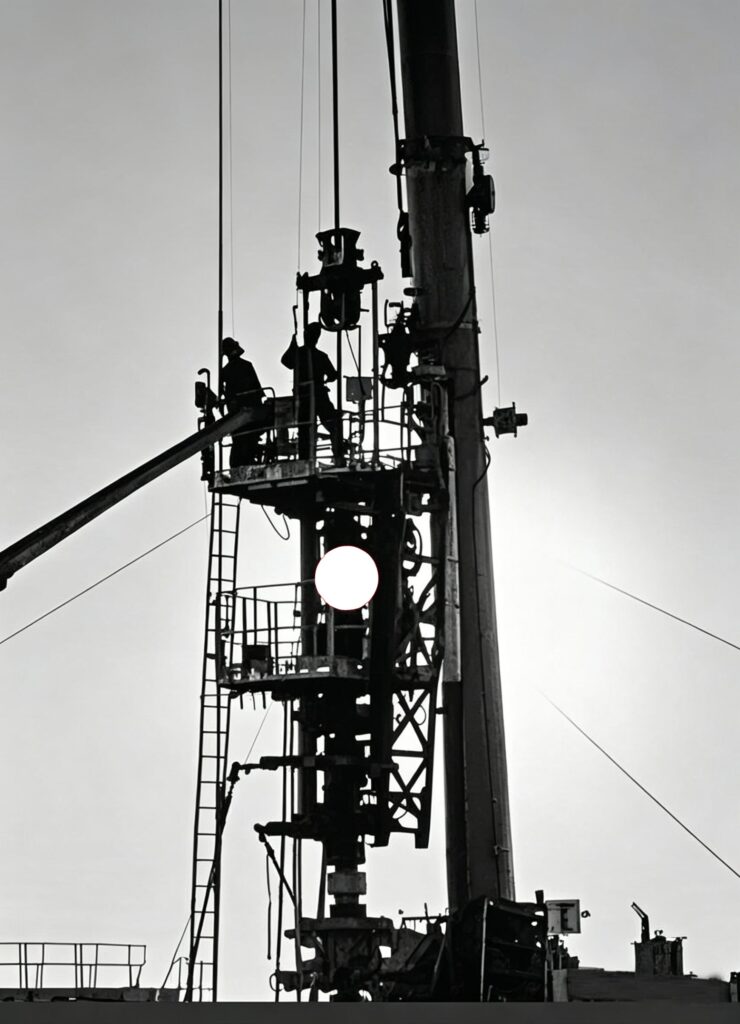

Snubbing Units For Wells Control
(BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
(BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
(BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
(BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
Application areas
Snubbing Units For Wells Control
(BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
(BSP, NPT, SAE). Designed for reliable performance in demanding industrial environments.
